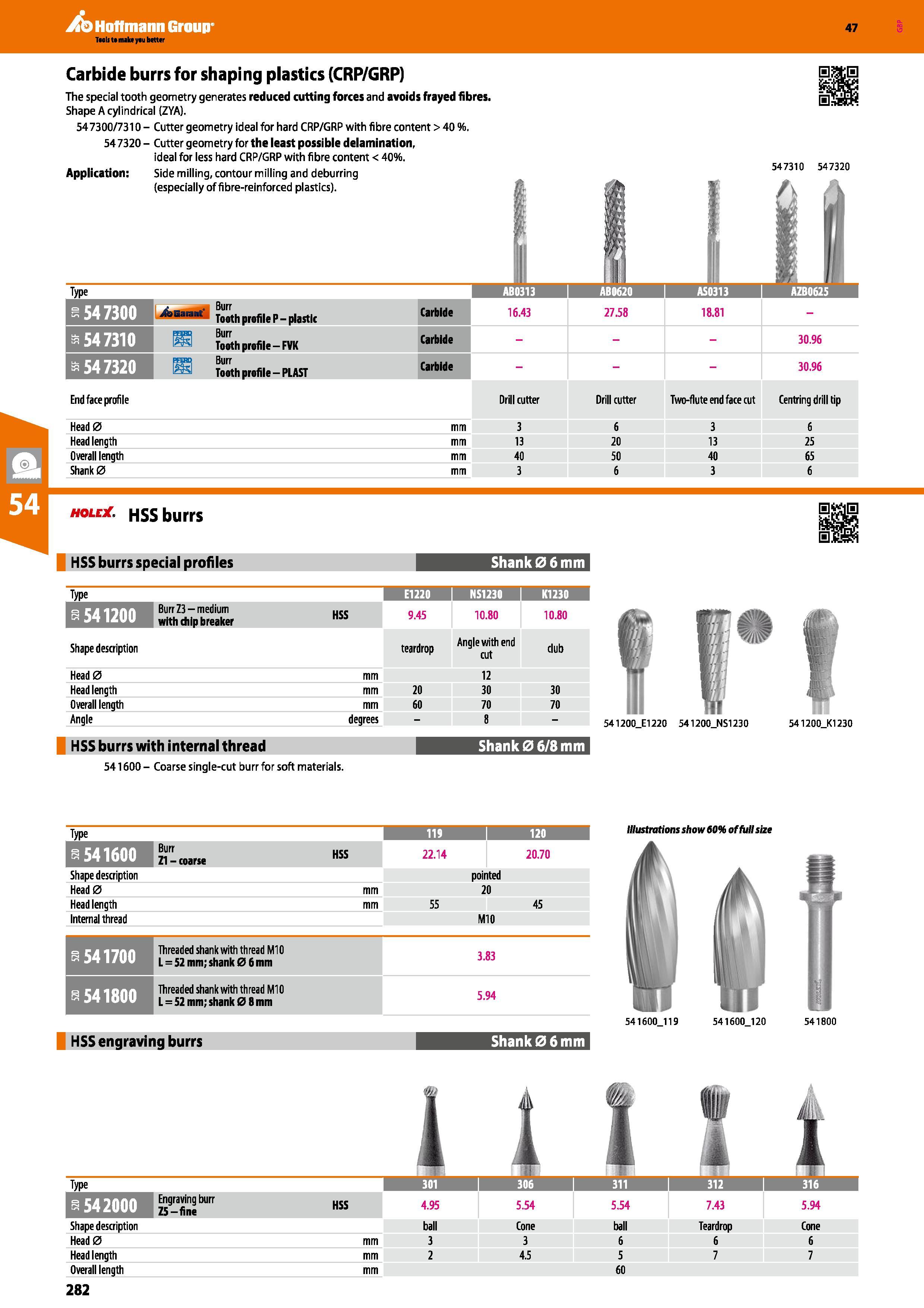

Hoffmann Group 47 Carbide burrs for shaping plastics (CRP/GRP) The special tooth geometry generates reduced cutting forces and avoids frayed fibres. Shape A cylindrical (ZYA). 547300/7310 - Cutter geometry ideal for hard CRP/GRP with fibre content > 40 %. 54 7320 - Cutter geometry for the least possible delamination, ideal for less hard CRP/GRP with fibre content < 40%. Application: Side milling, contour milling and deburring (especially of fibre-reinforced plastics). 547310 547320 I Type 54 7300 547310 54 7320 End face profile Head 0 Head length Overall length Shank 0 J&Baiant' Burr Tooth profile P-plastic Burr Tooth profile-FVK Burr Tooth profile-PLAST Carbide Carbide Carbide mm AB0313 AB0620 1 AS0313 1 AZB0625 16.43 27.58 18.81 - 30.96 30.96 Drill cutter Drill cutter Two-flute end face cut Centring drill tip 3 6 3 6 13 20 13 25 40 50 40 65 3 6 3 6 holex. HSS burrs HSS burrs special profiles Shank 06 mm Type El 220 i NS1230 i K1230 I 541200 Burr Z3-medium with chip breaker HSS 9.45 10.80 10.80 Shape description teardrop Angle with end cut dub Head0 mm 12 Head length mm 20 30 30 Overall length mm 60 70 70 Angle degrees - 8 - HSS burrs with internal thread Shank 06/8 mm 541200_E1220 541200_NS1230 541200_K1230 541600- Coarse single-cut burr for soft materials. Type 119 I 120 I 541600 Burr Z1 - coarse HSS 22.14 20.70 Shape description pointed Head0 mm 20 Head length mm 55 45 Internal thread M10 Illustrations show 60% of fullsize 541700 Threaded shankwith thread M10 L = 52 mm; shank 0 6 mm 541800 Threaded shankwith thread M10 L = 52 mm; shank 0 8 mm 3.83 5.94 HSS engraving burrs Shank 06 mm Head length Overall length 282 mm 4.5 5 60 541600_119 541600_120 541800 Type 301 : 306 1 311 1 312 1 316 542000 Engraving burr Z5-fine HSS 4.95 5.54 5.54 7.43 5.94 Shape description ball Cone ball Teardrop Cone Head0 mm 3 3 6 6 6
