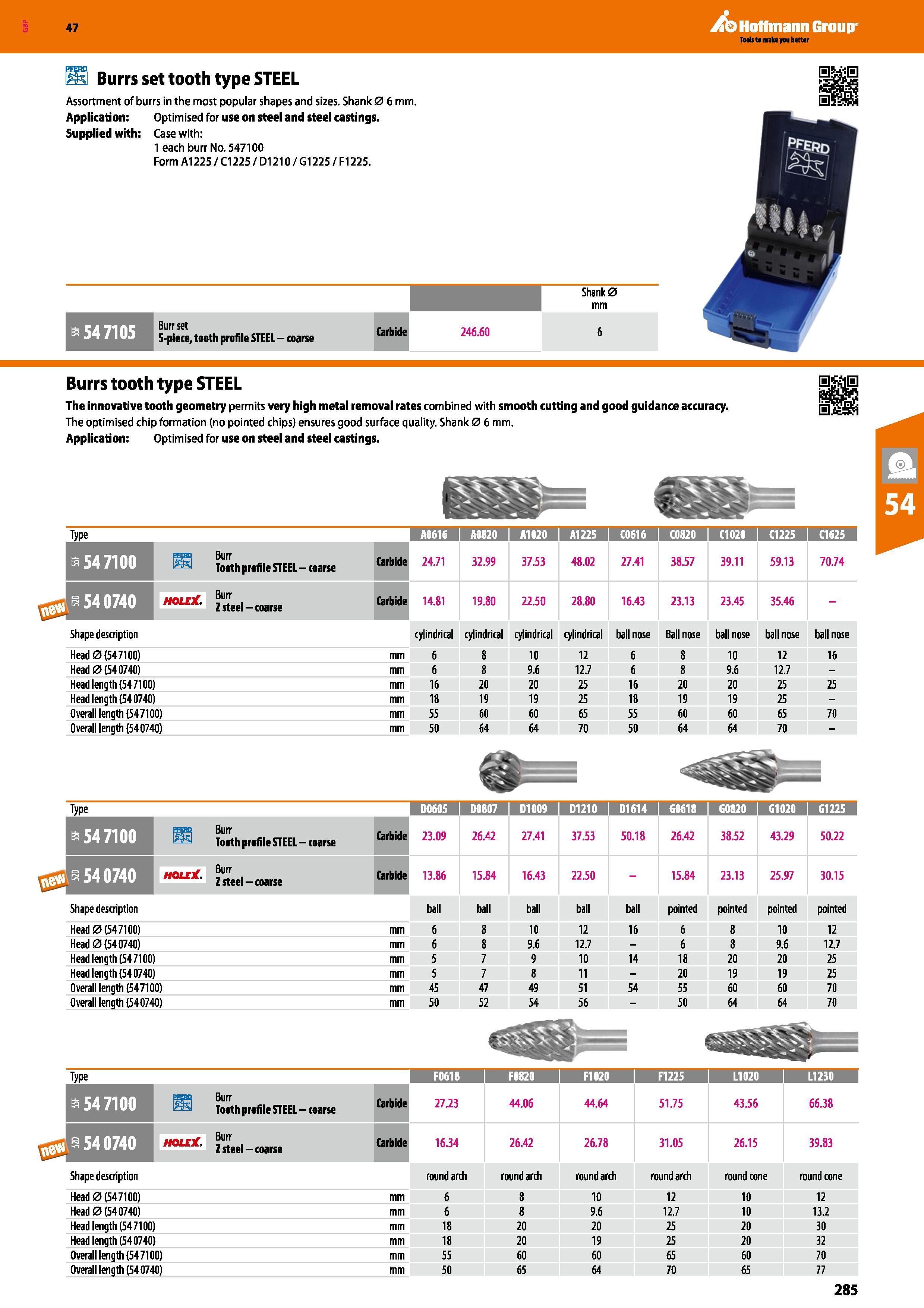

47 S3 Burrs set tooth type STEEL Assortment of burrs in the most popular shapes and sizes. Shank 0 6 mm. Application: Optimised for use on steel and steel castings. Supplied with: Case with: 1 each burr No. 547100 Form A1225 / C1225 / D1210 / G1225 / F1225. As) Hoffmann Group Shank 0 mm a 5 m 5 Burr set 5-piece, tooth profile STEEL - coarse Carbide 246.60 6 Burrs tooth type STEEL The innovative tooth geometry permits very high metal removal rates combined with smooth cutting and good guidance accuracy. The optimised chip formation (no pointed chips) ensures good surface quality. Shank 0 6 mm. Application: Optimised for use on steel and steel castings. ekle in 2 Type A0616 I A0820 1 A1020 I A1225 I C0616 I C0820 I Cl 020 I Cl225 1 Cl625 1 a 54 7100 mg Burr Tooth profile STEEL-coarse Carbide 24.71 32.99 37.53 48.02 27.41 38.57 39.11 59.13 70.74 1 5 i uo.rf Burr w Zsteel-coarse Carbide 14.81 19.80 22.50 28.80 16.43 23.13 23.45 35.46 - Shape description cylindrical cylindrical cylindrical cylindrical ball nose Ball nose ball nose ball nose ball nose Head 0(547100) mm 6 8 10 12 6 8 10 12 16 Head 0(54 0740) mm 6 8 9.6 12.7 6 8 9.6 12.7 - Head length (54 7100) mm 16 20 20 25 16 20 20 25 25 Head length (54 0740) mm 18 19 19 25 18 19 19 25 - Overall length (547100) mm 55 60 60 65 55 60 60 65 70 Overall length (540740) mm 50 64 64 70 50 64 64 70 - Type D1009 1 D1210 I D1614 I G0618 G1020 I G1225 1 a 54 7100 gm Burr Tooth profile STEEL-coarse Carbide 23.09 26.42 27.41 37.53 50.18 26.42 38.52 43.29 50.22 mu- Burr Zsteel-coarse Carbide 13.86 15.84 16.43 22.50 - 15.84 23.13 25.97 30.15 Shape description ball ball ball ball ball pointed pointed pointed pointed Head 0(547100) mm 6 8 10 12 16 6 8 10 12 Head 0(54 0740) mm 6 8 9.6 12.7 - 6 8 9.6 12.7 Head length (54 7100) mm 5 7 9 10 14 18 20 20 25 Head length (54 0740) mm 5 7 8 11 - 20 19 19 25 Overall length (547100) mm 45 47 49 51 54 55 60 60 70 Overall length (540740) mm 50 52 54 56 - 50 64 64 70 2 Type F0618 iMilWa F1020 i FI225 ; LI020 L1230 i a 54 7100 mu Burr Tooth profile STEEL-coarse Carbide 27.23 44.06 44.64 51.75 43.56 66.38 5 i HOLT BUrr Zsteel-coarse Carbide 16.34 26.42 26.78 31.05 26.15 39.83 Shape description round arch round arch round arch round arch round cone round cone Head 0(547100) mm 6 8 10 12 10 12 Head 0(540740) mm 6 8 9.6 12.7 10 13.2 Head length (547100) mm 18 20 20 25 20 30 Head length (540740) mm 18 20 19 25 20 32 Overall length (547100) mm 55 60 60 65 60 70 Overall length (540740) mm 50 65 64 70 65 77 285
