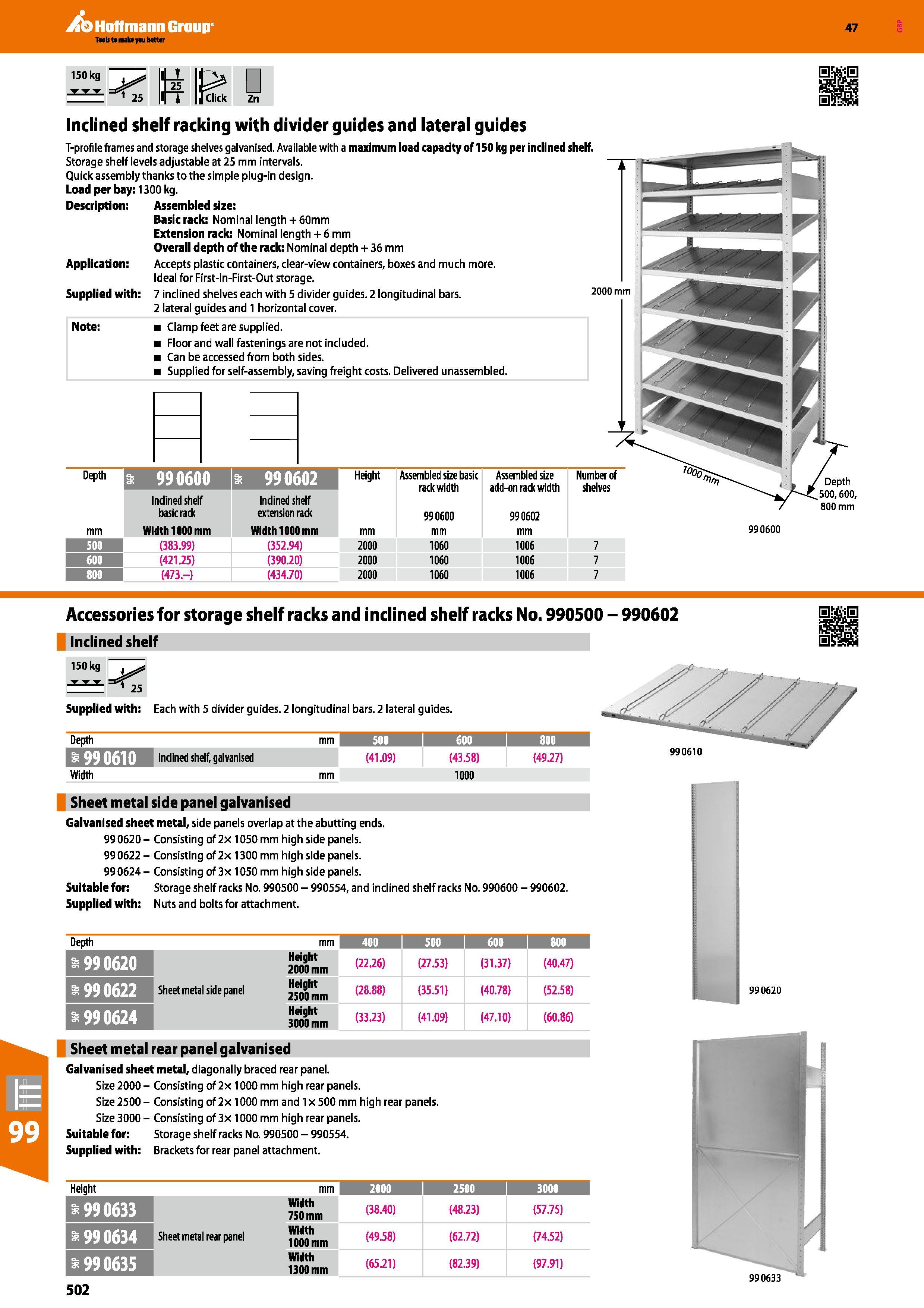

Hoffmann Group 47 150 kg 25 25 Inclined shelf racking with divider guides and lateral guides T-profile frames and storage shelves galvanised. Available with a maximum load capacity of 150 kg per inclined shelf. Storage shelf levels adjustable at 25 mm intervals. Quick assembly thanks to the simple plug-in design. Load per bay: 1300 kg. Description: Application: Supplied with: Assembled size: Basic rack: Nominal length + 60mm Extension rack: Nominal length + 6 mm Overall depth of the rack: Nominal depth + 36 mm Accepts plastic containers, dear-view containers, boxes and much more. Ideal for First-In-First-Out storage. 7 inclined shelves each with 5 divider guides. 2 longitudinal bars. 2 lateral guides and 1 horizontal cover. Clamp feet are supplied. Floor and wall fastenings are not included. Can be accessed from both sides. Supplied for self-assembly, saving freight costs. Delivered unassembled. 200I Depth Hami'Mi: Height Assembled size basic rack width 990600 Assembled size add-on rack width 990602 Number of shelves Inclined shelf basic rack Inclined shelf extension rack mm Width 1000 mm Width 1000 mm 500 (383.99) (352.94) 2000 1060 1006 7 600 (421.25) (390.20) 2000 1060 1006 7 (473.-) (434.70) 2000 1060 1006 7 990600 Accessories for storage shelf racks and inclined shelf racks No. 990500 - 990602 Inclined shelf 150 kg 25 Supplied with: Each with 5 divider guides. 2 longitudinal bars. 2 lateral guides. Depth mm 500 600 i 800 I a-j'l'f'lW ln(l'nedshelf,galvanised (41.09) (43.58) (49.27) Width mm 1000 Sheet metal side panel galvanised Galvanised sheet metal, side panels overlap at the abutting ends. 99 0620 - Consisting of 2x 1050 mm high side panels. 990622 - Consisting of 2x 1300 mm high side panels. 990624 - Consisting of 3x 1050 mm high side panels. Suitable for: Storage shelf racks No. 990500 - 990554, and inclined shelf racks No. 990600 - 990602. Supplied with: Nuts and bolts for attachment. Depth mm 400 i 500 600 1 800 UllifW Height 2000 mm (22.26) (27.53) (31.37) (40.47) 199 0622 Sheet metal side panel Height 2500 mm (28.88) (35.51) (40.78) (52.58) 99 0624 Height 3000 mm (33.23) (41.09) (47.10) (60.86) Sheet metal rear panel galvanised Galvanised sheet metal, diagonally braced rear panel. Size 2000- Consisting of2x 1000 mm high rear panels. Size 2500- Consisting of 2x 1000 mm and 1x 500 mm high rear panels. Size 3000 - Consisting of 3x 1000 mm high rear panels. Suitable for: Storage shelf racks No. 990500 - 990554. Supplied with: Brackets for rear panel attachment. Height mm 2000 I 2500 i 3000 i 99 0633 Width 750 mm (38.40) (48.23) (57.75) llbiir.iM Sheet metal rear panel Width 1000 mm (49.58) (62.72) (74.52) 99 0635 Width 1300 mm (65.21) (82.39) (97.91) 990620 502
