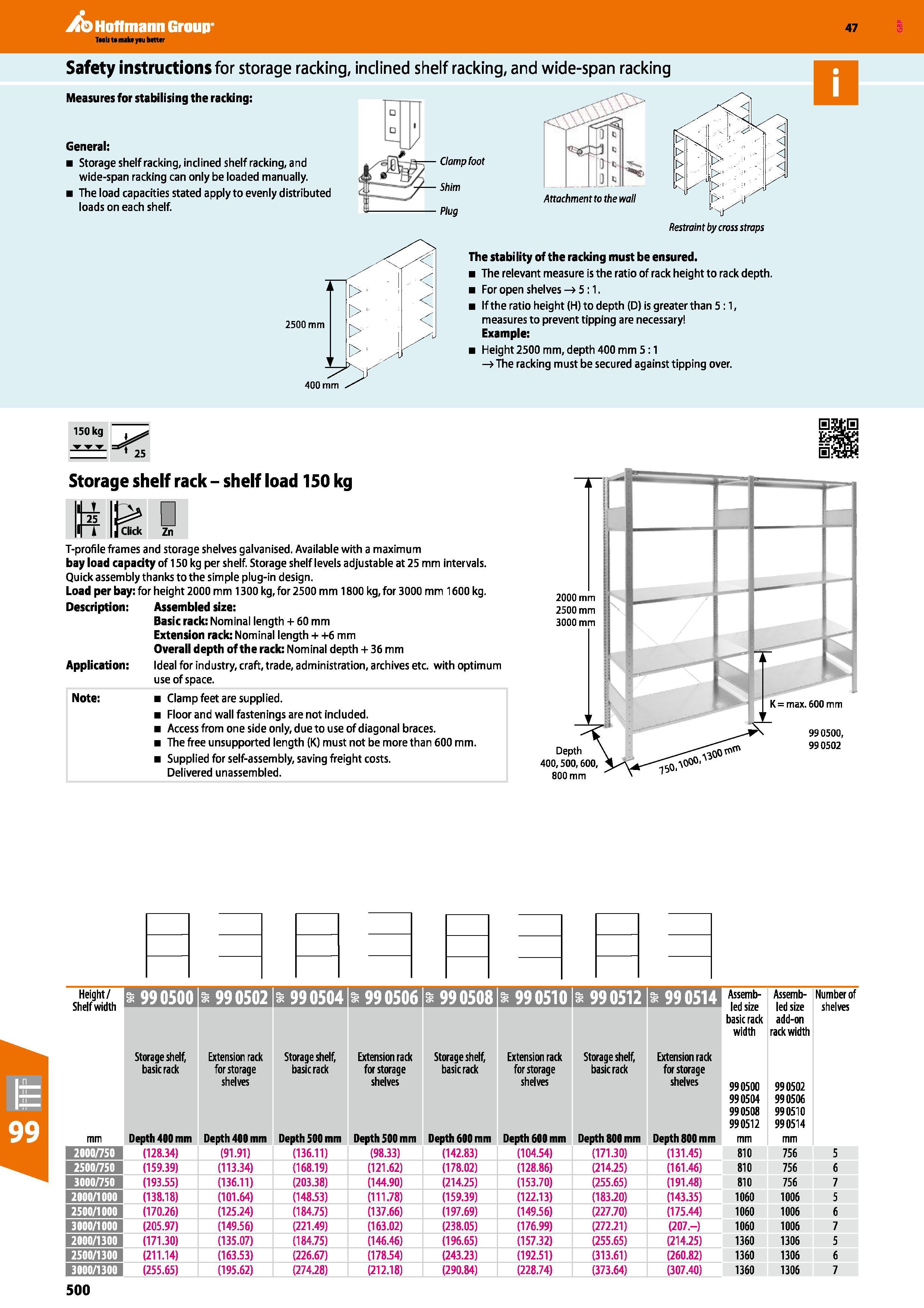

500 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.500

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 500 0500 ENG Lab2u

Hoffmann Group 47 Safety instructions for storage racking, inclined shelf racking, and wide-span racking Measures for stabilising the racking: General: Storage shelf racking, inclined shelf racking, and wide-span racking can only be loaded manually. The load capacities stated apply to evenly distributed loads on each shelf. 2500 mm 400 mm Attachment to the wall The stabi lity of the racking must be ensured. The relevant measure is the ratio of rack height to rack depth. For open shelves ->5:1. If the ratio height (H) to depth (D) is greater than 5:1, measures to prevent tipping are necessary Example: Height 2500 mm, depth 400 mm 5:1 - The racking must be secured against tipping over. 150 kg 25 Storage shelf rack - shelf load 150 kg 21 i T-profile frames and storage shelves galvanised. Available with a maximum bay load capacity of 150 kg per shelf. Storage shelf levels adjustable at 25 mm intervals. Quick assembly thanks to the simple plug-in design. Load per bay: for height 2000 mm 1300 kg, for 2500 mm 1800 kg, for 3000 mm 1600 kg. Description: Assembled size: Basic rack: Nominal length + 60 mm Extension rack: Nominal length + +6 mm Overall depth of the rack: Nominal depth + 36 mm Application: Ideal for industry, craft, trade, administration, archives etc. with optimum use of space. Clamp feet are supplied. Floor and wall fastenings are not included. Access from one side only, due to use of diagonal braces. The free unsupported length (K) must not be more than 600 mm. Supplied for self-assembly, saving freight costs. Delivered unassembled. Height/ Shelf width mm 990500 990502 990504 99 0506 a 990508 990510 a 99 0512 a 990514 Assembled size basic rack width 990500 990504 990508 990512 mm Assembled size add-on rack width 990502 990506 990510 990514 mm Number of shelves Storage shelf, basic rack Depth 400 mm Extension rack for storage shelves Depth 400 mm Storage shelf, basic rack Depth 500 mm Extension rack for storage shelves Depth 500 mm Storage shelf, basic rack Depth 600 mm Extension rack for storage shelves Depth 600 mm Storage shelf, basic rack Depth 800 mm Extension rack for storage shelves Depth 800 mm 2000/750 (128.34) (91.91) (136.11) (98.33) (142.83) (104.54) (171.30) (131.45) 810 756 5 2500/750 (159.39) (113.34) (168.19) (121.62) (178.02) (128.86) (214.25) (161.46) 810 756 6 3000/750 (193.55) (136.11) (203.38) (144.90) (214.25) (153.70) (255.65) (191.48) 810 756 7 HI'I'JiM'I'I (138.18) (101.64) (148.53) (111.78) (159.39) (122.13) (183.20) (143.35) 1060 1006 5 2500/1000 (170.26) (125.24) (184.75) (137.66) (197.69) (149.56) (227.70) (175.44) 1060 1006 6 mmm (205.97) (149.56) (221.49) (163.02) (238.05) (176.99) (272.21) (207.-) 1060 1006 7 2000/1300 (171.30) (135.07) (184.75) (146.46) (196.65) (157.32) (255.65) (214.25) 1360 1306 5 2500/1300 (211.14) (163.53) (226.67) (178.54) (243.23) (192.51) (313.61) (260.82) 1360 1306 6 3000/1300 (255.65) (195.62) (274.28) (212.18) (290.84) (228.74) (373.64) (307.40) 1360 1306 7 2000 mm 2500 mm 3000 mm Depth 400,500,600, 800 mm = max. 600 mm 990500, 990502 K 500
