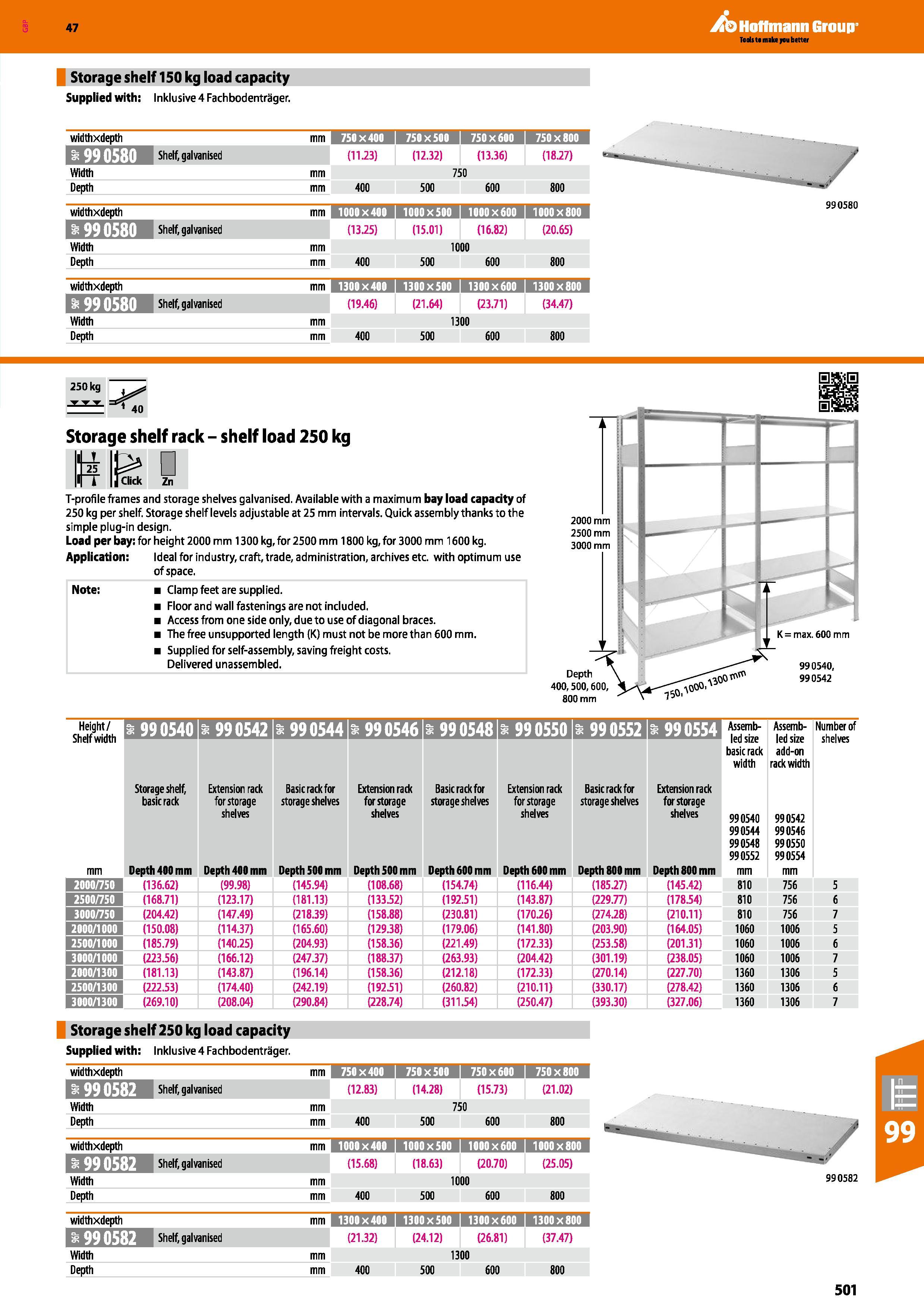

501 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.501

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 501 0501 ENG Lab2u

Hoffmann Group 47 Storage shelf 150 kg load capacity Supplied with: Inklusive 4 Fachbodentrager. widthxdepth mm I 750 X 400 750 X 500 1 750 x 600 750 x 800 s 99 0580 KSIHSI (11.23) (12.32) (13.36) (18.27) Width mm 750 Depth mm 400 500 600 800 widthxdepth mm btft-VllVfi l Shelf,galvanised (13.25) (15.01) (16.82) (20.65) Width mm 1000 Depth mm 400 500 600 800 widthxdepth mm 1 1300 x 400 1300x500 1 1300x600 1300x800 990580 EM (19.46) (21.64) (23.71) (34.47) Width mm 1300 Depth mm 400 500 600 800 / 990580 250 kg 40 Storage shelf rack - shelf load 250 kg 25 n Click Zn T-profile frames and storage shelves galvanised. Available with a maximum bay load capacity of 250 kg per shelf. Storage shelf levels adjustable at 25 mm intervals. Quick assembly thanks to the simple plug-in design. Load per bay: for height 2000 mm 1300 kg, for 2500 mm 1800 kg, for 3000 mm 1600 kg. Application: Ideal for industry, craft, trade, administration, archives etc. with optimum use of space. Note: Clamp feet are supplied. Floor and wall fastenings are not included. Access from one side only, due to use of diagonal braces. The free unsupported length (K) must not be more than 600 mm. Supplied for self-assembly, saving freight costs. Delivered unassembled. Height/ Shelf width mm a 99 0540 a 990542 990544 990546 a 990548 a 99 0550 a 990552 a 990554 Assembled size basic rack width 990540 990544 990548 990552 mm Assembled size add-on rack width 990542 990546 990550 990554 mm Number of shelves Storage shelf, basic rack Depth 400 mm Extension rack for storage shelves Depth 400 mm Basic rack for storage shelves Depth 500 mm Extension rack for storage shelves Depth 500 mm Basic rack for storage shelves Depth 600 mm Extension rack for storage shelves Depth 600 mm Basic rack for storage shelves Depth 800 mm Extension rack for storage shelves Depth 800 mm 2000/750 (136.62) (99.98) (145.94) (108.68) (154.74) (116.44) (185.27) (145.42) 810 756 5 2500/750 (168.71) (123.17) (181.13) (133.52) (192.51) (143.87) (229.77) (178.54) 810 756 6 3000/750 (204.42) (147.49) (218.39) (158.88) (230.81) (170.26) (274.28) (210.11) 810 756 7 2000/1000 (150.08) (114.37) (165.60) (129.38) (179.06) (141.80) (203.90) (164.05) 1060 1006 5 2500/1000 (185.79) (140.25) (204.93) (158.36) (221.49) (172.33) (253.58) (201.31) 1060 1006 6 IH'MiM'M (223.56) (166.12) (247.37) (188.37) (263.93) (204.42) (301.19) (238.05) 1060 1006 7 2000/1300 (181.13) (143.87) (196.14) (158.36) (212.18) (172.33) (270.14) (227.70) 1360 1306 5 2500/1300 (222.53) (174.40) (242.19) (192.51) (260.82) (210.11) (330.17) (278.42) 1360 1306 6 3000/1300 (269.10) (208.04) (290.84) (228.74) (311.54) (250.47) (393.30) (327.06) 1360 1306 7 Storage shelf 250 kg load capacity Supplied with: Inklusive 4 Fachbodentrager. widthxdepth 750 x 400 I 750 x 500 I 750 x 600 1 750 x 800 I ' ’ ' STTi 582 Shelf, galvanised (12.83) (14.28) (15.73) (21.02) Width mm 750 Depth mm 400 500 600 800 J widthxdepth STTi 582 Shelf, galvanised (15.68) (18.63) (20.70) (25.05) Width mm 1000 990582 Depth mm 400 500 600 800 widthxdepth mm 1300 x 400 I 1300x500 1 1300x600 1 1300x800 I a 99 0582 EM (21.32) (24.12) (26.81) (37.47) Width mm 1300 Depth mm 400 500 600 800 501
