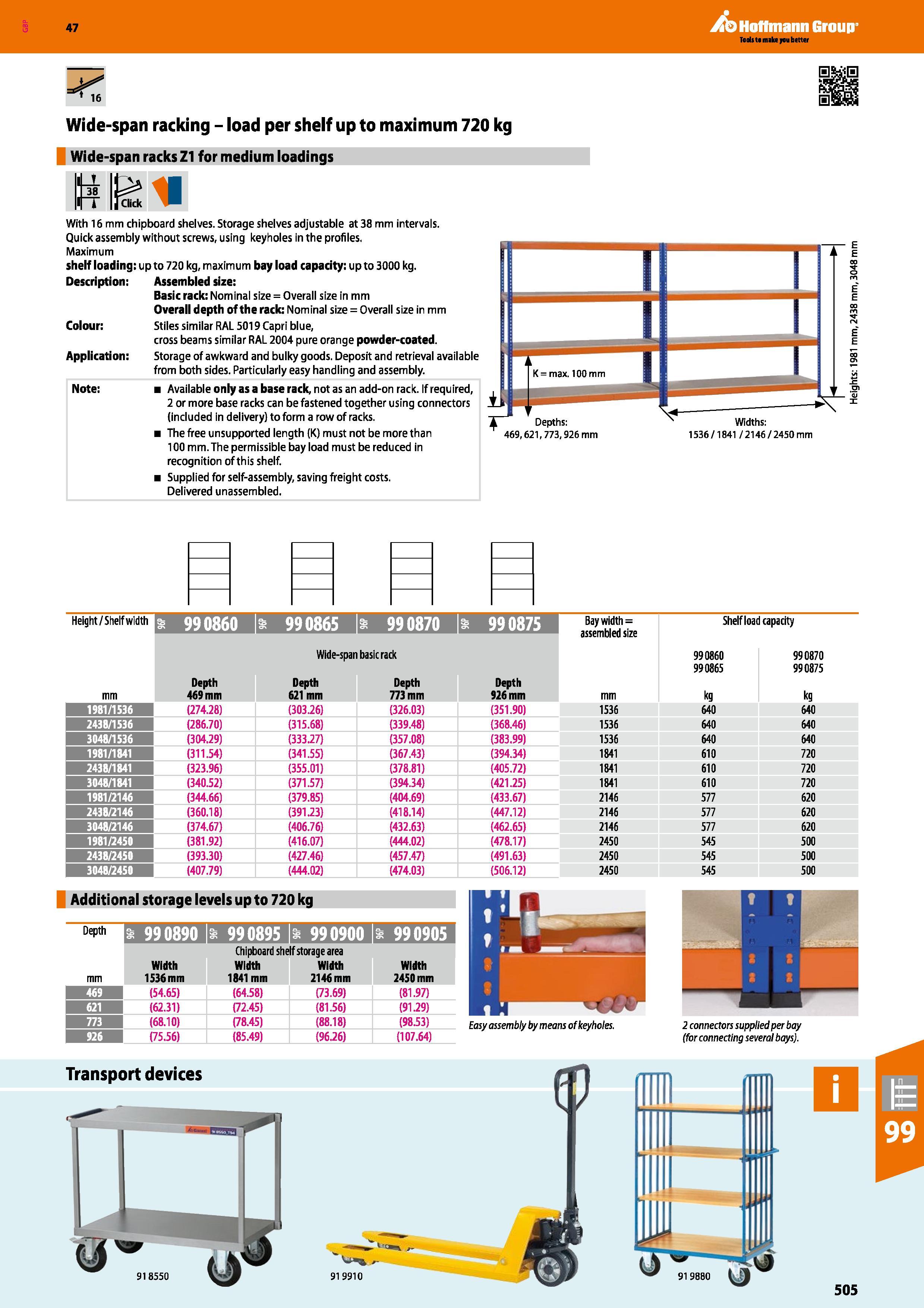

Hoffmann Group 47 Wide-span racking - load per shelf up to maximum 720 kg Wide-span racks Z1 for medium loadings J. 38 With 16 mm chipboard shelves. Storage shelves adjustable at 38 mm intervals. Quick assembly without screws, using keyholes in the profiles. Maximum shelf loading: up to 720 kg, maximum bay load capacity: up to 3000 kg. Description: Assembled size: Basic rack: Nominal size = Overall size in mm Overall depth of the rack: Nominal size = Overall size in mm Colour: Stiles similar RAL 5019 Capri blue, cross beams similar RAL 2004 pure orange powder-coated. Application: Storage of awkward and bulky goods. Deposit and retrieval available from both sides. Particularly easy handling and assembly. Note: Available only as a base rack, not as an add-on rack. If required, 2 or more base racks can be fastened together using connectors (included in delivery) to form a row of racks. The free unsupported length (K) must not be more than 100 mm. The permissible bay load must be reduced in recognition of this shelf. Supplied for self-assembly, saving freight costs. Delivered unassembled. Depths: 469,621,773,926 mm Widths: 1536/1841 /2146/2450mm Height/Shelf width mm llKT TiT T miKTTiT T7 Bay width = assembled size mm Shelf load capacity 990860 990870 990865 990875 kg kg Depth 469 mm Wide-span basic rack Depth Depth 621 mm 773 mm Depth 926 mm 1981/1536 (274.28) (303.26) (326.03) (351.90) 1536 640 640 2438/1536 (286.70) (315.68) (339.48) (368.46) 1536 640 640 3048/1536 (304.29) (333.27) (357.08) (383.99) 1536 640 640 1981/1841 (311.54) (341.55) (367.43) (394.34) 1841 610 720 2438/1841 (323.96) (355.01) (378.81) (405.72) 1841 610 720 3048/1841 (340.52) (371.57) (394.34) (421.25) 1841 610 720 1981/2146 (344.66) (379.85) (404.69) (433.67) 2146 577 620 2438/2146 (360.18) (391.23) (418.14) (447.12) 2146 577 620 3048/2146 (374.67) (406.76) (432.63) (462.65) 2146 577 620 1981/2450 (381.92) (416.07) (444.02) (478.17) 2450 545 500 2438/2450 (393.30) (427.46) (457.47) (491.63) 2450 545 500 3048/2450 (407.79) (444.02) (474.03) (506.12) 2450 545 500 Additional storage levels up to 720 kg Depth miiiinwCTiEEg 990900 Chipboard shelf storage area Width Width Width Width mm 1536 mm 1841 mm 2146 mm 2450 mm 469 (54.65) (64.58) (73.69) (81.97) 621 (62.31) (72.45) (81.56) (91.29) 773 (68.10) (78.45) (88.18) (98.53) 926 (75.56) (85.49) (96.26) (107.64) Easy assembly by means of keyholes. Transport devices 2 connectors supplied per bay (for connecting several bays j. 918550 505
