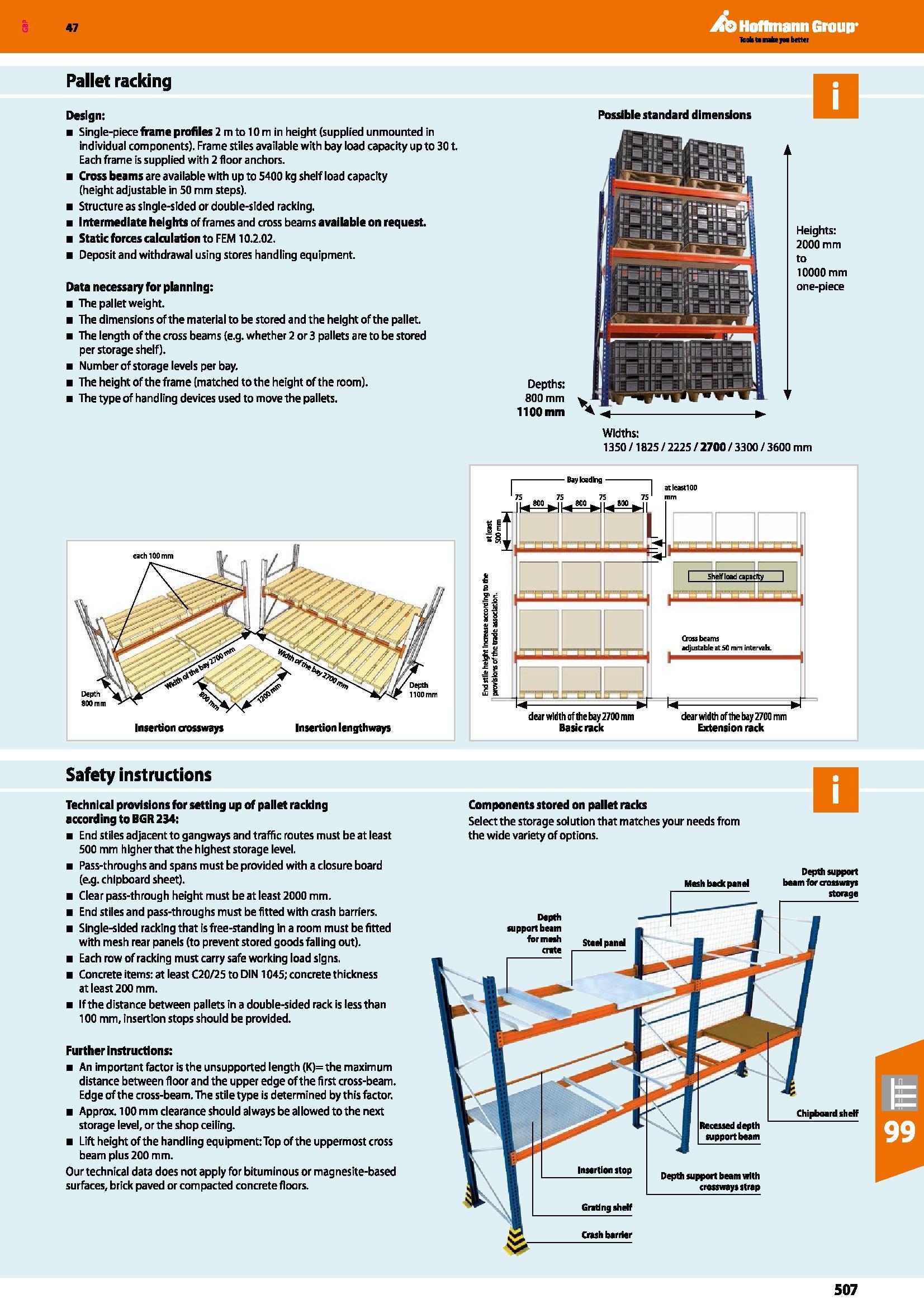

Pallet racking Design: Single-piece frame profiles 2 m to 10 m in height (supplied unmounted in individual components). Frame stiles available with bay load capacity up to 301. Each frame is supplied with 2 floor anchors. Cross beams are available with up to 5400 kg shelf load capacity (height adjustable in 50 mm steps). Structure as single-sided or double-sided racking. Intermediate heights of frames and cross beams available on request Static forces calculation to FEM 10.2.02. Deposit and withdrawal using stores handling equipment. Data necessary for planning: The pal let weight. The dimensions of the material to be stored and the height of the pallet. The length of the cross beams (e.g. whether 2 or 3 pallets are to be stored per storage shelf). Number of storage levels per bay. The height of the frame (matched to the height of the room). The type of handling devices used to move the pallets. Widths: 1350 /1825/2225 / 2700 / 3300 / 3600 mm Baytadhg dear width of the bay 2700 mm Basic rack dear width of the hay 2700 mm Extension rack Safety instructions Technical provisions for setting up of pallet racking according to BGR 234: End stiles adjacent to gangways and traffic routes must be at least 500 mm higher that the highest storage level. Pass-throughs and spans must be provided with a closure board (e.g. chipboard sheet). Clear pass-through height must be at least 2000 mm. End stiles and pass-throughs must be fitted with crash barriers. Single-sided racking that is free-standing in a room must be fitted with mesh rear panels (to prevent stored goods falling out). Each row of racking must carry safe working load signs. Concrete items: at least C20/25 to DIN 1045; concrete thickness at least 200 mm. If the distance between pallets in a double-sided rack is less than 100 mm, insertion stops should be provided. Components stored on pallet racks Select the storage solution that matches your needs from the wide variety of options. Further Instructions: An important factor is the unsupported length (K)=the maximum distance between floor and the upper edge of the first cross-beam. Edge of the cross-beam. The stile type is determined by this factor. Approx. 100 mm clearance should always be allowed to the next storage level, or the shop ceiling. Lift height of the handling equipment: Top of the uppermost cross beam plus 200 mm. Our technical data does not apply for bituminous or magnesite-based surfaces, brick paved or compacted concrete floors. Insertion crossways Insertion lengthways Depth support Mesh back panel beam for croiiwayt stooge Grating shelf Crash barrier Depth support beam for math crate Chipboard ihetf support beam Depth support beam with _ rowway strap 507
