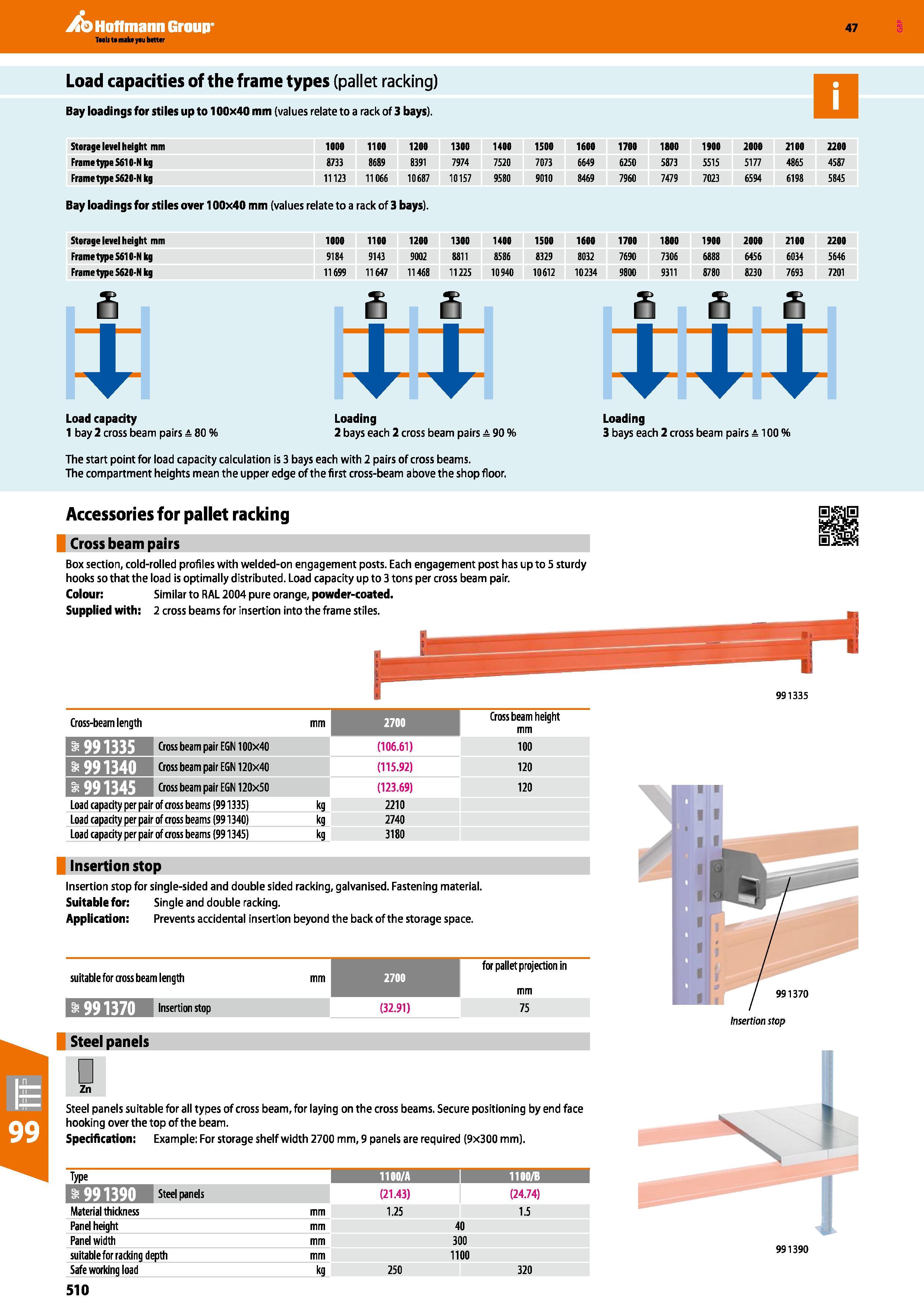

Hoffmann Group 47 Load capacities of the frame types (pallet racking) Bay loadings for stiles up to 100x40 mm (values relate to a rack of 3 bays). Storage level height mm 1000 1100 1200 1300 1400 1500 1600 1700 1100 1900 2000 2100 2200 Frame type S610-N kg 8733 8689 8391 7974 7520 7073 6649 6250 5873 5515 5177 4865 4587 Frame type S620-N kg 11123 11066 10687 10157 9580 9010 8469 7960 7479 7023 6594 6198 5845 Bay loadings for stiles over 100x40 mm (values relate to a rack of 3 bays). Storage level height mm 1000 1100 1200 1300 1400 1500 1(00 1700 1800 1900 2000 2100 2200 Frame type S610-N kg 9184 9143 9002 8811 8586 8329 8032 7690 7306 6888 6456 6034 5646 Frame type S620-N kg 11699 11647 11468 11225 10940 10612 10234 9800 9311 8780 8230 7693 7201 fi s fi fi s Load capacity 1 bay 2 cross beam pairs A 80 Loading 2 bays each 2 cross beam pairs 4 90 % Loading 3 bays each 2 cross beam pairs A100 % The start point for load capacity calculation is 3 bays each with 2 pairs of cross beams. The compartment heights mean the upper edge of the first cross-beam above the shop floor. Accessories for pallet racking Cross beam pairs Box section, cold-rolled profiles with welded-on engagement posts. Each engagement post has up to 5 sturdy hooks so that the load is optimally distributed. Load capacity up to 3 tons per cross beam pair. Colour: Similar to RAL 2004 pure orange, powder-coated. Supplied with: 2 cross beams for insertion into the frame stiles. 991335 Cross-beam length mm 2700 Cross beam height mm Cross beam pair EGN 100x40 (106.61) 100 991340 Cross beam pair EGN 120x40 (115.92) 120 991345 Cross beam pair EGN 120x50 (123.69) 120 Load capacity per pair of cross beams (991335) kg 2210 Load capacity per pair of cross beams (991340) kg 2740 Load capacity per pair of cross beams (991345) kg 3180 Insertion stop Insertion stop for single-sided and double sided racking, galvanised. Fastening material. Suitable for: Single and double racking. Application: Prevents accidental insertion beyond the back of the storage space. suitable for cross beam length mm 2700 for pallet projection in mm ilL&lcWfl Insertion stop (32.91) 75 991370 Insertion stop Steel panels Zn Steel panels suitable for all types of cross beam, for laying on the cross beams. Secure positioning by end face I I hooking over the top of the beam. Specification: Example: For storage shelf width 2700 mm, 9 panels are required (9x300 mm . Type 1100/A I 1100/B 1 .'i'lEWllI Steel panels (21.43) (24.74) Material thickness mm 1.25 1.5 Panel height mm 40 Panel width mm 300 suitable for racking depth mm 1100 Safe working load kg 250 320 991390 510
