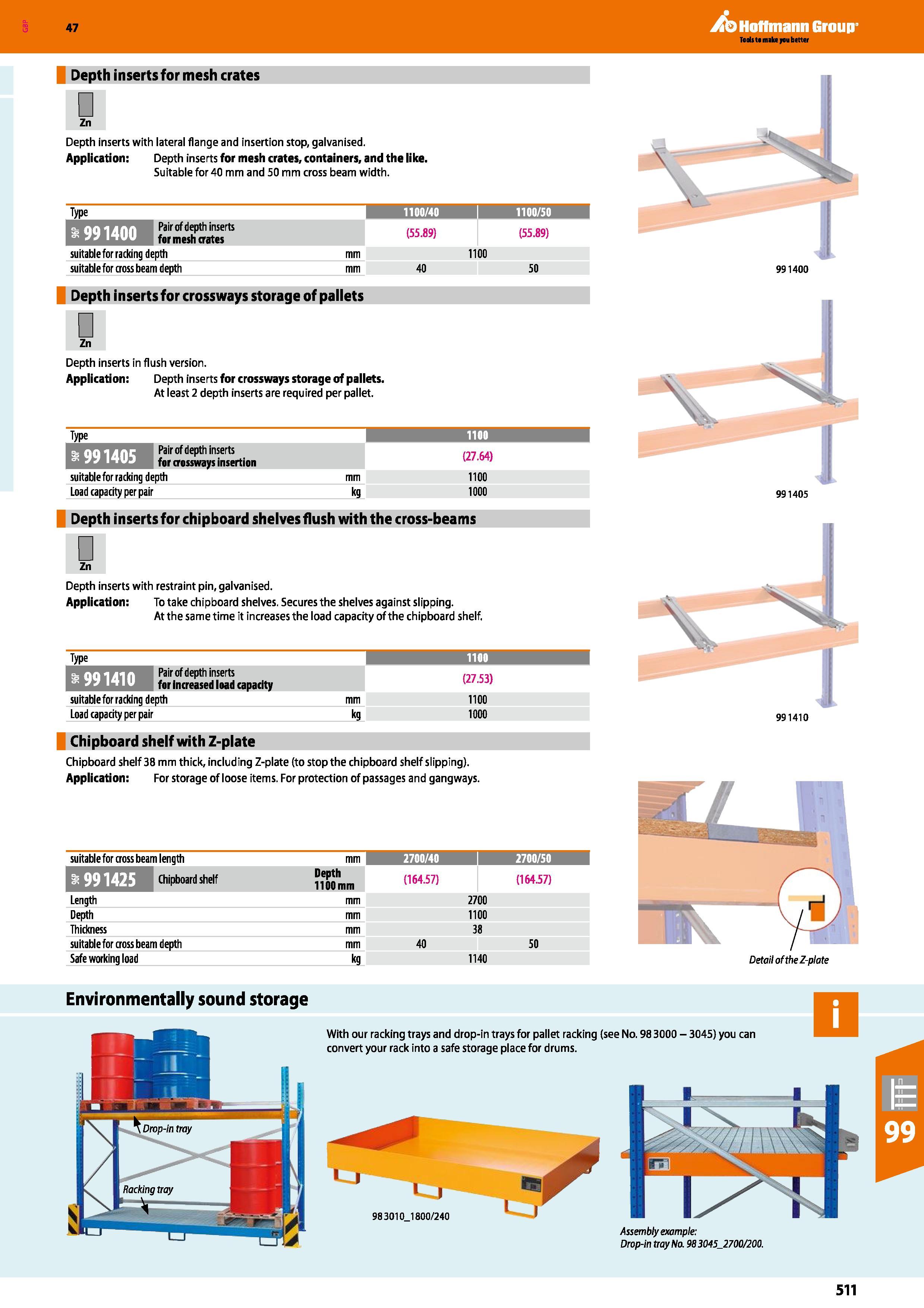

511 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.511

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 511 0511 ENG Lab2u

47 Depth inserts for mesh crates A Hoffmann Group 0 Zn Depth inserts with lateral flange and insertion stop, galvanised. Application: Depth inserts for mesh crates, containers, and the like. Suitable for 40 mm and 50 mm cross beam width. Type 1100/40 1100/50 991400 Pair of depth inserts for mesh crates (55.89) (55.89) suitable for racking depth suitable for cross beam depth mm 1100 40 50 991400 Depth inserts for crossways storage of pallets 0 Zn Depth inserts in flush version. Application: Depth inserts for crossways storage of pallets. At least 2 depth inserts are required per pallet. Type 1100 Pair of depth inserts for crossways insertion (27.64) suitable for racking depth mm 1100 Load capacity per pair kg 1000 Depth inserts for chipboard shelves flush with the cross-beams si 991405 Zn Depth inserts with restraint pin, galvanised. Application: To take chipboard shelves. Secures the shelves against slipping. At the same time it increases the load capacity of the chipboard shelf. \ Type 1100 1 Pair of depth inserts for increased load capacity (27.53) suitable for racking depth mm 1100 Load capacity per pair kg 1000 Chipboard shelf with Z-plate 991410 Chipboard shelf 38 mm thick, including Z-plate (to stop the chipboard shelf slipping). Application: For storage of loose items. For protection of passages and gangways. suitable for cross beam length mm 2700/40 I 2700/50 1 Chipboard shelf Depth 1100 mm (164.57) (164.57) Length mm 2700 Depth mm 1100 Thickness mm 38 suitable for cross beam depth mm 40 50 Safe working load kg 1140 Environmentally sound storage With our racking trays and drop-in trays for pallet racking (see No. 98 3000 - 3045) you can convert your rack into a safe storage place for drums. Detail of the Z-plate 511
