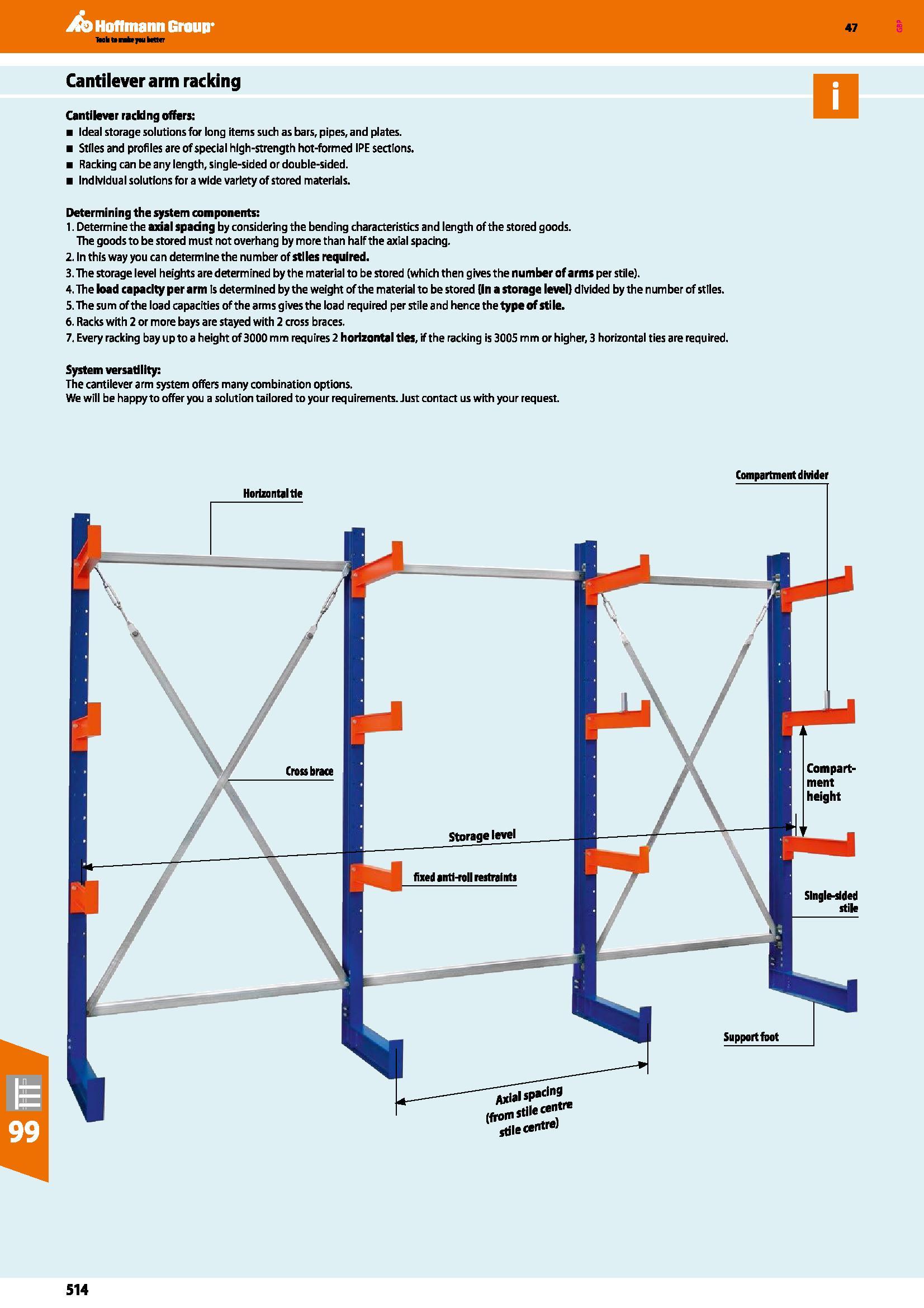

Cantilever arm racking Cantilever racking offers: Ideal storage solutions for long items such as bars, pipes, and plates. Stiles and profiles are of special high-strength hot-formed IPE sections. Racking can be any length, single-sided or double-sided. Individual solutions for a wide variety of stored materials. Determining the system components: 1. Determine the axial spadng by considering the bending characteristics and length of the stored goods. The goods to be stored must not overhang by more than half the axial spacing. 2. In this way you can determine the number of stiles required. 3. The storage level heights are determined by the material to be stored (which then gives the number of arms per stile). 4. The load capacity per arm is determined by the weight of the material to be stored in a storage level divided by the number of stiles. 5. The sum of the load capacities of the arms gives the load required per stile and hence the type of stile. 6. Racks with 2 or more bays are stayed with 2 cross braces. 7. Every racking bay up to a height of3000 mm requires 2 horizontal ties, if the racking is 3005 mm or higher, 3 horizontal ties are required. System versatility: The cantilever arm system offers many combination options. We will be happy to offer you a solution tailored to your requirements. Just contact us with your request. Compartment divider Horizontal tie Compartment height Cross bran Storage level fixed anti-roll restraints Single-sided stile Support foot ss iff Is centra 514
