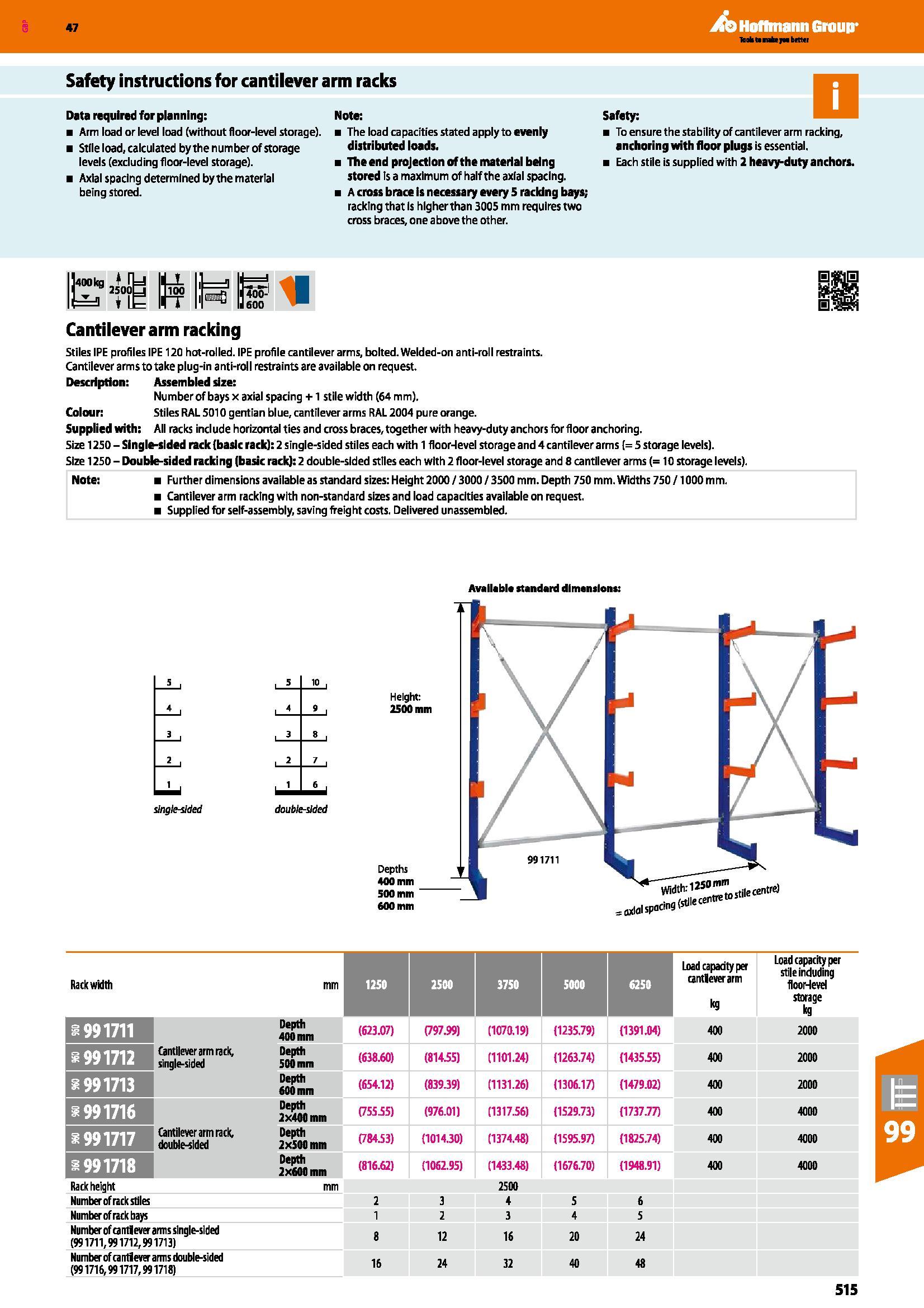

515 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.515

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 515 0515 ENG Lab2u

Safety instructions for cantilever arm racks Data required for planning: Arm load or level load (without floor-level storage). Stile load, calculated by the n um ber of storage levels (excluding floor-level storage). Axial spacing determined by the material being stored. Note: The load capacities stated apply to evenly distributed loads. The end projection of the material being stored Is a maximum of half the axial spacing. A cross brace Is necessary every 5 racking bays; racking that is higher than 3005 mm requires two cross braces, one above the other. Safety: To ensure the stability of cantilever arm racking, anchoring with floor plugs is essential. Each stile is supplied with 2 heavy-duty anchors. H 2500 Cantilever arm racking Stiles IPE profiles IPE120 hot-rolled. IPE profile cantilever arms, bolted. Welded-on anti-roll restraints. Cantilever arms to take plug-in anti-roll restraints are available on request. Description: Assembled size: Number of bays x axial spacing +1 stile width (64 mm). Colour: Stiles RAL 5010 gentian bl ue, cantilever arms RAL 2004 pu re orange. Supplied with: All racks ind ude horizontal ties and cross braces, together with heavy-duty anchors lor floor anchoring. Size 1250 - Single-sided rack basic rack : 2 single-sided stiles each with 1 floor-level storage and 4 cantilever arms (= 5 storage levels). Size 1250 - Double-sided racking (basic rack : 2 double-sided stiles each with 2 floor-level storage and 8 cantilever arms (= 10 storage levels). Note: Fu rther dimensions available as standard sizes: Height 2000 / 3000 / 3500 mm. Depth 750 mm. Widths 750/1000 m m. Cantilever arm racking with non-standard sizes and load capacities available on request. Supplied for self-assembly, saving freight costs. Delivered unassembled. Available standard dimension : 5 , 1 5 10 , 4 I 4 I 3 , 1 3 8 1 2 , 1 2 1 1 . . 1 6 , single-sided double-sided Rack width mm 1250 2500 3750 n 6250 Load capaaty per cantiever arm ng Load capacity per stile induding floor-level storage kg i 991711 Depth 400 mm (623.07) (797.99) (1070.19) (1235.79) (1391.04) 400 2000 IS 991712 Cantilever arm rack, single-sided Depth 500 mm (638.60) (814.55) (1101.24) (1263.74) (143555) 400 2000 8 991713 Depth 600 mm (654.12) (839.39) (1131.26) (1306.17) (1479.02) 400 2000 991716 Depth 2xM0 mm (755.55) (976.01) (1317.56) (1529.73) (1737.77) 400 4000 i 991717 Cantilever arm rack, double-sided Depth 2x500 mm (784.53) (1014.30) (1374.48) (1595.97) (1825.74) 400 4000 s 991718 Depth 2x600 mm (816.62) (1062.95) (1433.48) (1676.70) (1948.91) 400 4000 Rack height mm 2500 Number of rack stiles 2 3 4 5 6 Number of rack bays 1 2 3 4 5 Number of caffltever arms single-sided (991711,991712,991713) 8 12 16 20 24 Number of cantiever arms double-sided (991716,991717,991718) 16 24 32 40 48 515
