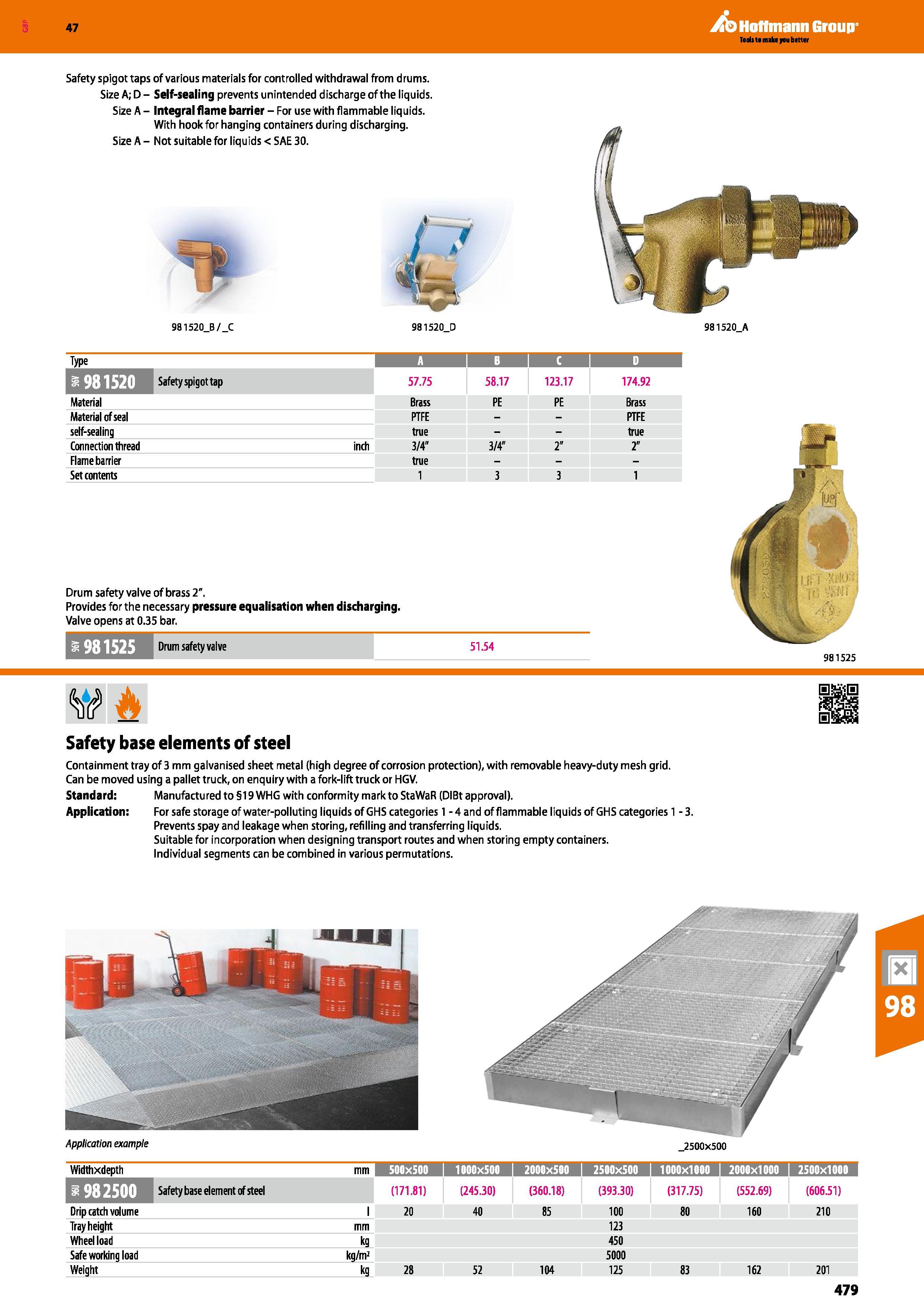

Hoffmann Group 47 Safety spigot taps of various materials for controlled withdrawal from drums. Size A; D - Self-sealing prevents unintended discharge of the liquids. Size A - Integral flame barrier - For use with flammable liquids. With hook for hanging containers during discharging. Size A - Not suitable for liquids < SAE 30. 981520_B/_C 981520_D 981520_A Type Safety spigot tap 57.75 58.17 123.17 174.92 Material Brass PE PE Brass Material of seal FTFE - - PTFE self-sealing true - - true Connection thread inch 3/4" 3/4" 2" 2" Flame barrier true - - - Set contents 1 3 3 1 Drum safety valve of brass 2". Provides for the necessary pressure equalisation when discharging. Valve opens at 0.35 bar. Drum safety valve 51.54 & Safety base elements of steel Containment tray of 3 mm galvanised sheet metal (high degree of corrosion protection), with removable heavy-duty mesh grid. Can be moved using a pallet truck, on enquiry with a fork-lift truck or HGV. Standard: Manufactured to 19 WHG with conformity mark to StaWaR (DIBt approval). Application: For safe storage of water-polluting liquids of GHS categories 1 -4and offlammable liquidsof GHS categories 1 -3. Prevents spay and leakage when storing, refilling and transferring liquids. Suitable for incorporation when designing transport routes and when storing empty containers. Individual segments can be combined in various permutations. 981525 Application example 2500x500 Widthxdepth mm 500x500 I 1000x500 I 2000x500 1 2500x500 1 1000x1000 I 2000x1000 1 2500x1000 1 Safety base element of steel (171.81) (245.30) (360.18) (393.30) (317.75) (552.69) (606.51) Drip catch volume 1 20 40 85 100 80 160 210 Tray height mm 123 Wheel load kg 450 Safe working load kg/m2 5000 Weight kg 28 52 104 125 83 162 201 479
