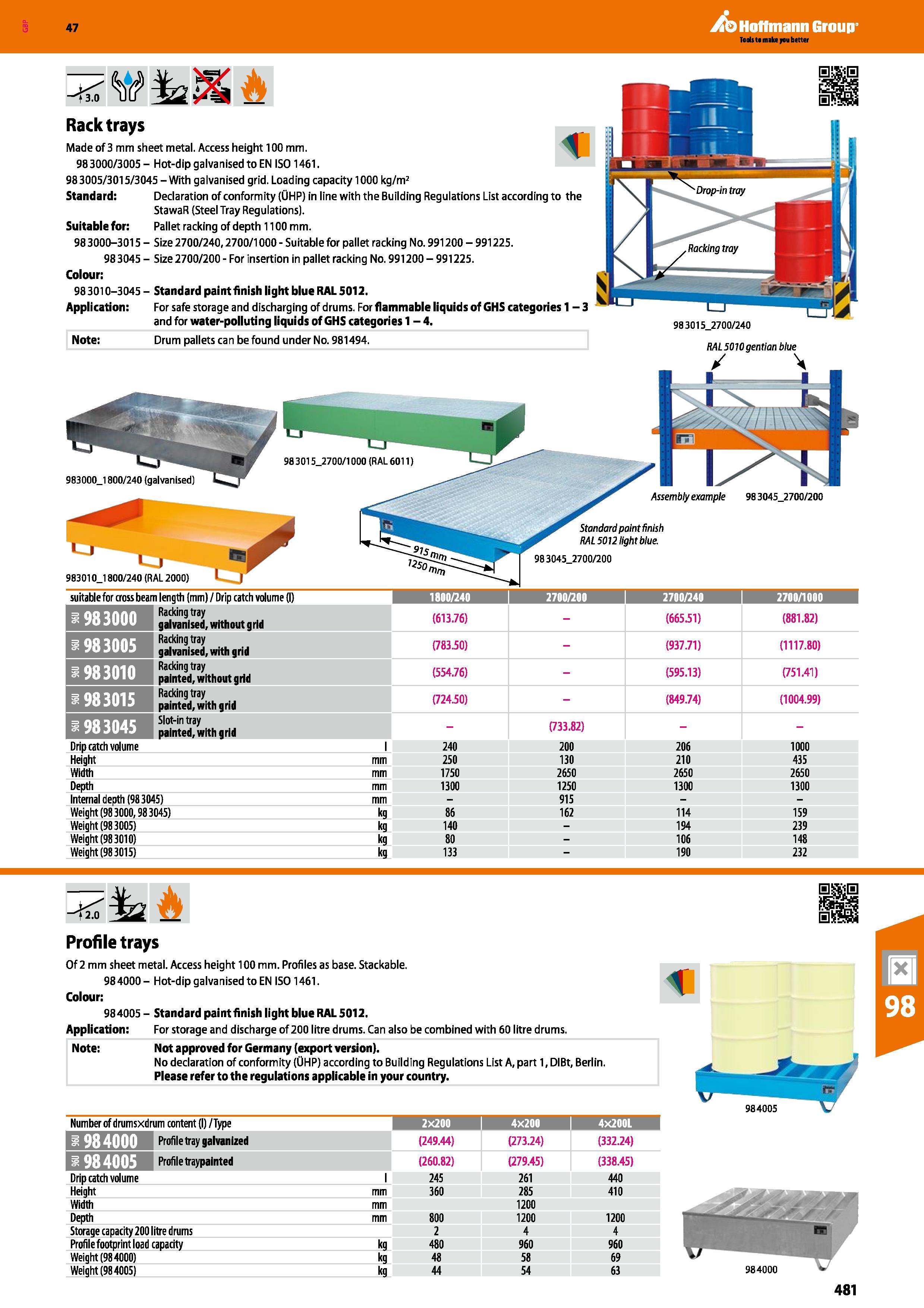

Hoffmann Group Rack trays Made of 3 mm sheet metal. Access height 100 mm. 983000/3005 - Hot-dip galvanised to EN IS01461. 983005/3015/3045 - With galvanised grid. Loading capacity 1000 kg/m2 Standard: Declaration of conformity (UHP) in line with the Building Regulations List according to the StawaR (Steel Tray Regulations). Suitable for: Pallet racking of depth 1100 mm. 98 3000-3015 - Size 2700/240,2700/1000 - Suitable for pallet racking No. 991200 - 991225. 98 3045 - Size 2700/200 - For insertion in pallet racking No. 991200 - 991225. Colour: 983010-3045 - Standard paint finish light blue RAL 5012. Application: For safe storage and discharging of drums. For flammable liquids of GHS categories 1-3 and for water-polluting liquids of GHS categories 1-4. Note: Drum pallets can be found under No. 981494. 983015 2700/240 RAL 5010 gentian blue / \ Assembly example 98 3045_2700/200 Standard paint finish RAL 5012 light blue. 98 3045_2700/200 983010J 800/240 (RAL 2000) suitable for cross beam length (mm) / Drip catch volume (1) 1800/240 2700/200 2700/240 2700/1000 I Racking tray galvanised, without g rid (613.76) - (665.51) (881.82) PfTfffTH Racking tray galvanised, with grid (783.50) - (937.71) (1117.80) rVITffiW Racking tray painted, without grid (554.76) - (595.13) (751.41) Racking tray painted, with grid (724.50) - (849.74) (1004.99) pWfjWH Slot-in tray painted, with grid - (733.82) - - Drip catch volume 1 240 200 206 1000 Height mm 250 130 210 435 Width mm 1750 2650 2650 2650 Depth mm 1300 1250 1300 1300 Internal depth (983045) mm - 915 - - Weight (98 3000,98 3045) kg 86 162 114 159 Weight (98 3005) kg 140 - 194 239 Weight (98 3010) kg 80 - 106 148 Weight (98 3015) kg 133 - 190 232 _ Profile trays "f2.0 Of 2 mm sheet metal. Access height 100 mm. Profiles as base. Stackable. 984000- Hot-dip galvanised to EN IS01461. Colour: 984005 - Standard paint finish light blue RAL 5012. Application: For storage and discharge of 200 litre drums. Can also be combined with 60 litre drums. Note: Not approved for Germany (export version). No declaration of conformity (0HP) according to Building Regulations List A, part 1,DIBt, Berlin. Please refer to the regulations applicable in your country. i 984000 Profile tray galvanized (249.44) (273.24) (332.24) 1 984005 Profile traypainted (260.82) (279.45) (338.45) Height Width Depth Storage capacity 200 litre drums Profile footprint load capacity Weight (984000) Weight (984005) kg kg kg 360 800 2 480 48 44 285 1200 1200 4 960 58 54 410 1200 4 960 69 63 984005 984000
