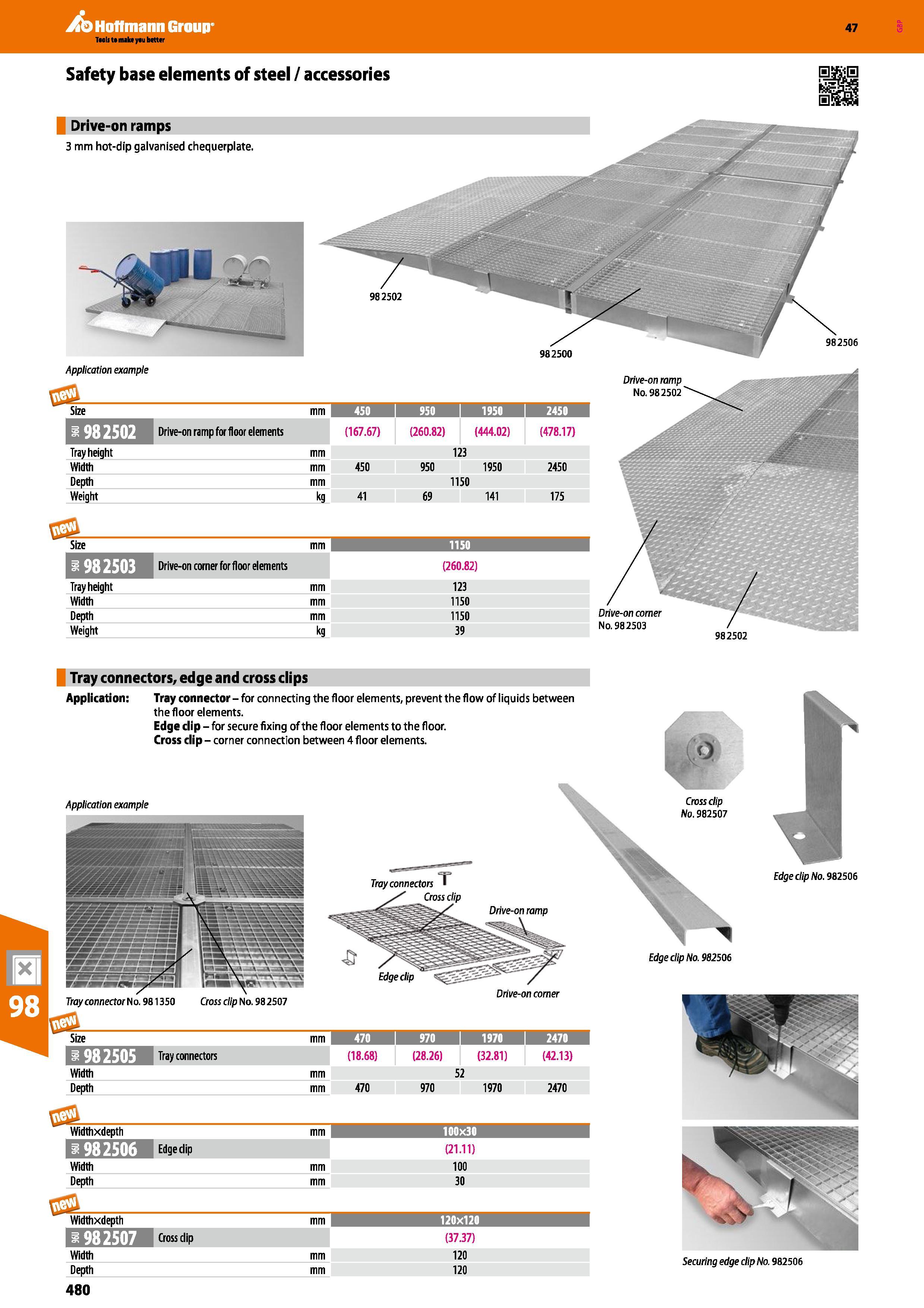

Hoffmann Group 47 Safety base elements of steel / accessories Drive-on ramps 3 mm hot-dip galvanised chequerplate. 982502 982500 Application example Size mm 450 i 950 I 1950 j 2450 I Drive-on ramp for floor elements (167.67) (260.82) (444.02) (478.17) Tray height mm 123 Width mm 450 950 1950 2450 Depth mm 1150 Weight kg 41 69 141 175 Size mm 1150 1 a 982503 Drive-on corner for floor elements (260.82) Tray height mm 123 Width mm 1150 Depth mm 1150 Weight kg 39 Tray connectors, edge and cross clips Drive-on comer No. 982503 982502 Drive-on ramp No. 98 2502 Cross clip No.982507 Edge clip No. 982506 mm 470 970 1970 2470 (18.68) (28.26) (32.81) (42.13) mm 52 mm 470 970 1970 2470 Tray connector No. 981350 Cross clip No. 98 2507 982505 Tray connectors 982506 Widthxdepth i Width Depth Edge clip 982507 Widthxdepth I Width Depth 480 Cross clip (21.11) 100 30 (37.37) 120 120 Application: Tray connector - for connecting the floor elements, prevent the flow of liquids between the floor elements. Edge clip - for secure fixing of the floor elements to the floor. Cross clip - corner connection between 4 floor elements. Application example Tray connectors I Edge clip Drive-on ramp Drive-on comer Edge clip No. 982506 Securing edge clip No. 982506
