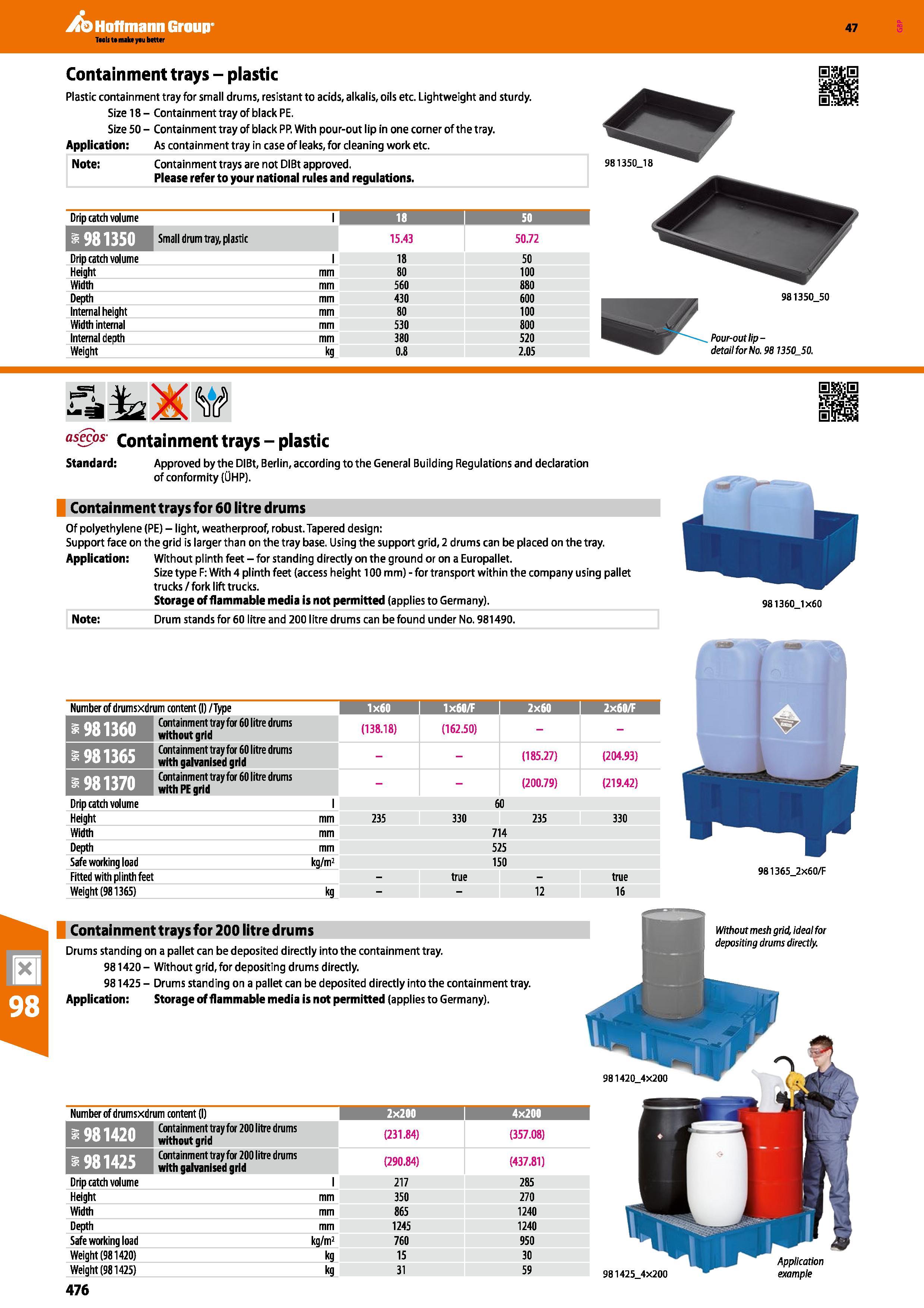

Hoffmann Group 47 Containment trays - plastic Plastic containment tray for small drums, resistant to acids, alkalis, oils etc. Lightweight and sturdy. Size 18- Containment tray of black PE. Size 50 - Containment tray of black PP. With pour-out lip in one corner of the tray. Application: As containment tray in case of leaks, for cleaning work etc. Note: Containment trays are not DIBt approved. Please refer to your national rules and regulations. Drip catch volume 1 18 I 50 Small drum tray, plastic 15.43 50.72 Drip catch volume 1 18 50 Height mm 80 100 Width mm 560 880 Depth mm 430 600 Internal height mm 80 100 Width internal mm 530 800 Internal depth mm 380 520 Weight kg 0.8 2.05 981350 50 . Pour-out lip-detailforNo. 981350_50. asecps Containment trays - plastic Standard: Approved by the DIBt, Berlin, according to the General Building Regulations and declaration of conformity (OHP). Containment trays for 60 litre drums Of polyethylene (PE) - light, weatherproof, robust. Tapered design: Support face on the grid is larger than on the tray base. Using the support grid, 2 drums can be placed on the tray. Application: Without plinth feet - for standing directly on the ground or on a Europallet. Size type F: With 4 plinth feet (access height 100 mm) - for transport within the company using pallet trucks / fork lift trucks. Storage of flammable media is not permitted (applies to Germany). 981360_ix60 Note: Drum stands for 60 litre and 200 litre drums can be found under No. 981490. Number of drumsxdrum content (I) /Type 1 1x60 1x60/F 1 2x60 2x60/F Containment tray for 60 litre drums without grid (138.18) (162.50) - - Containment tray for 60 litre drums with galvanised grid - - (185.27) (204.93) Containment tray for 60 litre drums - - (200.79) (219.42) Drip catch volume 1 60 Height mm 235 330 235 330 Width mm 714 Depth mm 525 Safe working load kg/m2 150 Fitted with plinth feet - true - true Weight (981365) kg - - 12 16 981365 2X60/F Containment trays for 200 litre drums Drums standing on a pallet can be deposited directly into the containment tray. 981420 - Without grid, for depositing drums directly. 981425 - Drums standing on a pallet can be deposited directly into the containment tray. Application: Storage of flammable media is not permitted (applies to Germany). Number of drumsxdrum content (I) 2x200 i 4x200 Containment tray for 200 litre drums without grid (231.84) (357.08) SSfCTS Containment tray for 200 litre drums with galvanised grid (290.84) (437.81) Drip catch volume 1 217 285 Height mm 350 270 Width mm 865 1240 Depth mm 1245 1240 Safe working load kg/m2 760 950 Weight (98 1 420) kg 15 30 Weight (98 1 425) kg 31 59 981420_4x200 981425_4x200 Application example Without mesh grid, ideal for depositing drums directly.
