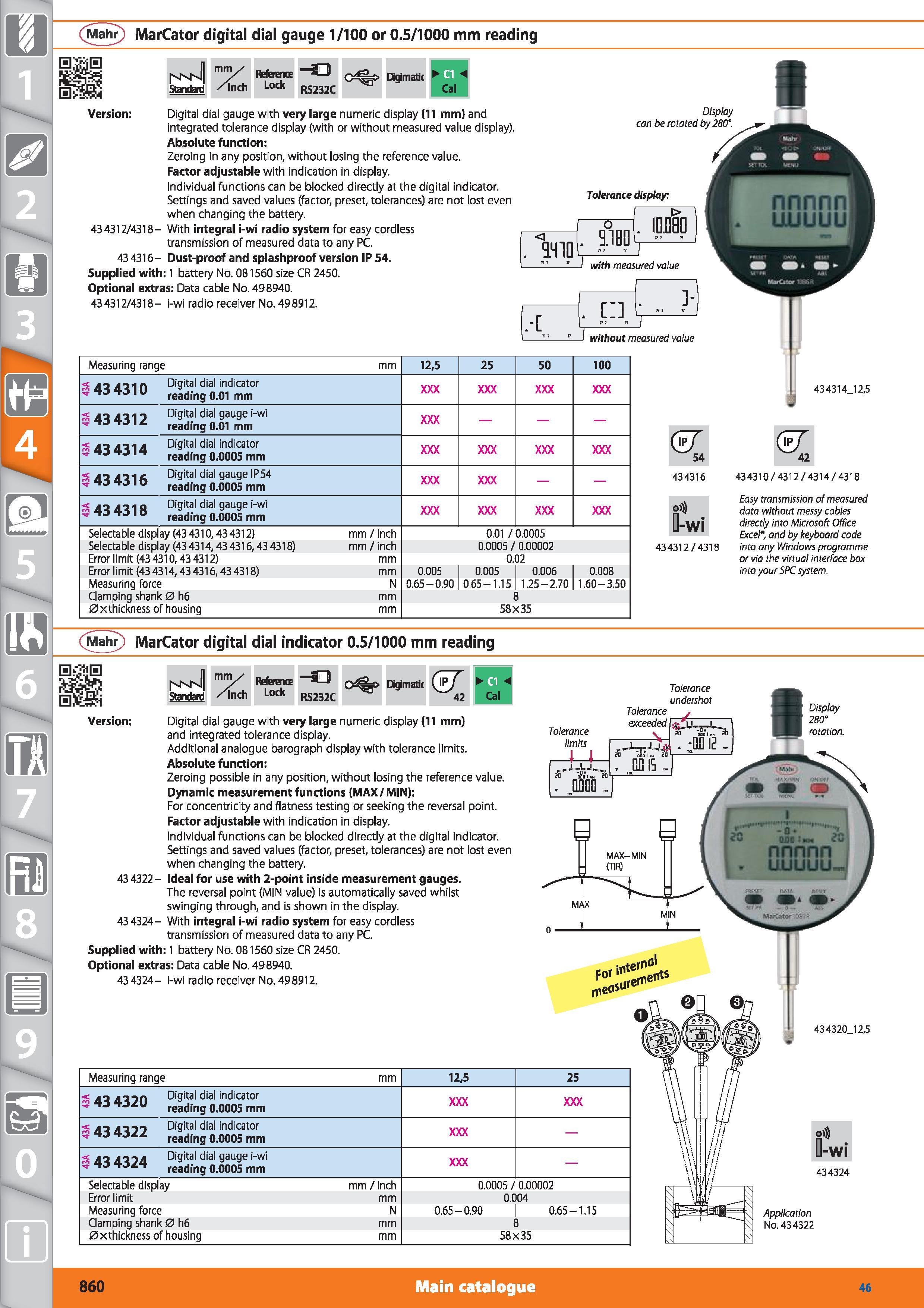

1 Mahr MarCator digital dial gauge 1/100 or 0.5/1000 mm reading Standard mm/ /Inch Reference Lock -3 RS232C Digimatk Cal Version Digital dial gauge with very large numeric display (11 mm) and integrated tolerance display (with or without measured value display). Absolute function Zeroing in any position, without losing the reference value. Factor adjustable with indication in display. Individual functions can be blocked directly at the digital indicator. Settings and saved values (factor, preset, tolerances) are not lost even when changing the battery. 43 4312/4318- With integral i-wi radio system for easy cordless transmission of measured data to any PC. 43 4316- Dust-proof and splashproof version IP 54. Supplied with 1 battery No. 081560 size CR 2450. Optional extras Data cable No. 498940. 43 4312/4318- i-wi radio receiver No. 498912. Display can be rotated by 280°. I r-n m Measuring range i 43 4310 Digital dial indicator reading 0.01 mm 43 4312 Digital dial gauge i-wi reading 0.01 mm 43 4314 Digital dial indicator reading 0.0005 mm 1434316 Digital dial gauge IP54 reading 0.0005 mm 1434318 Digital dial gauge i-wi reading 0.0005 mm Selectable display (43 4310,434312) mm / inch Selectable display (43 4314,434316,43 4318) mm / inch Errorlimit (43 4310,43 4312) mm Error limit (43 4314,43 4316,43 4318) mm Measuring force N Clamping shank 0 h6 mm 0xthickness of housing mm 12,5 25 50 100 0.01 / 0.0005 0.0005 / 0.00002 0.02 0.005 I 0.005 I 0.006 I 0.008 0.65 - 0.90 0.65-1.15 1.25-2.70 1.60-3.50 8 58X35 434314_12,5 (wf 54 <57 42 434316 -WI 434312/4318 434310 / 4312 / 4314 / 4318 Easy transmission of measured data without messy cables directly into Microsoft Office Excel’, and by keyboard code into any Windows programme or via the virtual interface box into your SPC system. Mahr MarCator digital dial indicator 0.5/1000 mm reading Standard mm/ /inch Reference Lock -o RS232C o%> Digimatk <57 42 H Cal to Version Digital dial gauge with very large numeric display (11 mm) and integrated tolerance display. Additional analogue barograph display with tolerance limits. Absolute function Zeroing possible in any position, without losing the reference value. Dynamic measurement functions (MAX/MIN) For concentricity and flatness testing or seeking the reversal point. Factor adjustable with indication in display. Individual functions can be blocked directly at the digital indicator. Settings and saved values (factor, preset, tolerances) are not lost even when changing the battery. 43 4322 - Ideal for use with 2-point inside measurement gauges. The reversal point (MIN value) is automatically saved whilst swinging through, and is shown in the display. 43 4324- With integral i-wi radio system for easy cordless transmission of measured data to any PC. Supplied with 1 battery No. 081560 size CR 2450. Optional extras Data cable No. 498940. 43 4324- i-wi radio receiver No. 498912. Tolerance limits -M F°r in lents Measuring range mm 12,5 25 ao Ann Digital dial indicator 5 43 4320 reading 0.0005 mm < aDigital dial indicator 9 43 4jzz reading 0.0005 mm S Al AXJA Digital dial 9au9e reading 0.0005 mm Selectable display mm / inch 0.0005 / 0.00002 Error limit mm 0.004 Measuring force N 0.65-0.90 0.65-1.15 Clamping shank 0 h6 mm 8 0xthickness of housing mm 58X35 43 4320_12,5 -WI 434324 Application No. 434322 860 Main catalogue Hoffmann Group 46
