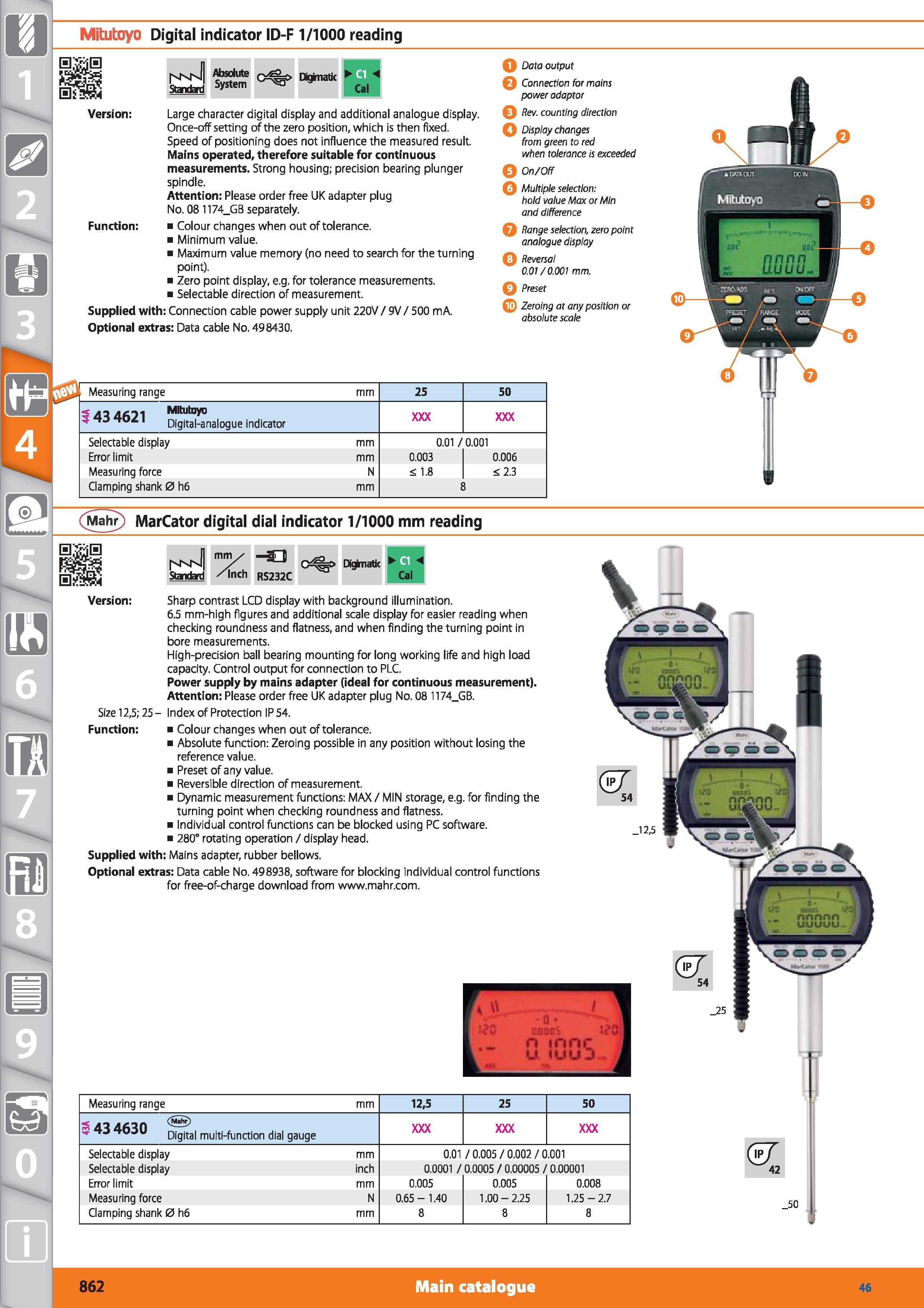

862 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.862

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 862 0862 ENG Lab2u

1 Mitutoyo Digital indicator ID-F 1/1000 reading Standard Absolute Dighiatk Ha System Cal Version Large character digital display and additional analogue display. Once-off setting of the zero position, which is then fixed. Speed of positioning does not influence the measured result. Mains operated, therefore suitable for continuous measurements. Strong housing; precision bearing plunger spindle. Attention Please order free UK adapter plug No. 081174_GB separately. Function Colour changes when out of tolerance. Minimum value. Maximum value memory (no need to search for the turning point). Zero point display, e.g. for tolerance measurements. Selectable direction of measurement. Supplied with Connection cable power supply unit 220V / 9V / 500 mA. Optional extras Data cable No. 498430. o Data output Connection for mains power adaptor Rev. counting direction Q Display changes from green to red when tolerance is exceeded Q On/Off Q Multiple selection hold value Max or Min and difference Q Range selection, zero point analogue display Q Reversal 0,01/0,001 mm. Q Preset Zeroing at any position or absolute scale Measuring range mm 25 50 S 43 4621 MltutoyD Digital-analogue indicator Selectable display mm 0.01/0.001 Error limit mm 0.003 0.006 Measuring force N <; 1.8 <,23 Clamping shank 0 h6 mm 8 Mahr MarCator digital dial indicator 1/1000 mm reading Standad mm /Inch -33 RS232C Digin atic < Cal Version Sharp contrast LCD display with background illumination. 6.5 mm-high figures and additional scale display for easier reading when checking roundness and flatness, and when finding the turning point in bore measurements. High-precision ball bearing mounting for long working life and high load capacity. Control output for connection to PLC. Power supply by mains adapter (ideal for continuous measurement). Attention Please order free UK adapter plug No. 08 1174_GB. Size 12,5; 25 - Index of Protection IP 54. Function Colour changes when out of tolerance. Absolute function Zeroing possible in any position without losing the reference value. Preset of any value. Reversible direction of measurement. Dynamic measurement functions MAX / MIN storage, e.g. for finding the turning point when checking roundness and flatness. Individual control functions can be blocked using PC software. 280° rotating operation / display head. Supplied with Mains adapter, rubber bellows. Optional extras Data cable No. 498938, software for blocking individual control functions for free-of-charge download from www.mahr.com. Measuring range mm 12,5 25 50 43 4630 Digital multi-function dial gauge Selectable display mm 0.01 / 0.005/0.002/0.001 Selectable display inch 0.0001 / 0.0005 / 0.00005 / 0.00001 Error limit mm 0.005 0.005 0.008 Measuring force N 0.65-1.40 1.00-2.25 1.25-2.7 Clamping shank 0 h6 mm 8 8 8 OEf 42 _50 862 Main catalogue Hoffmann Group 46
