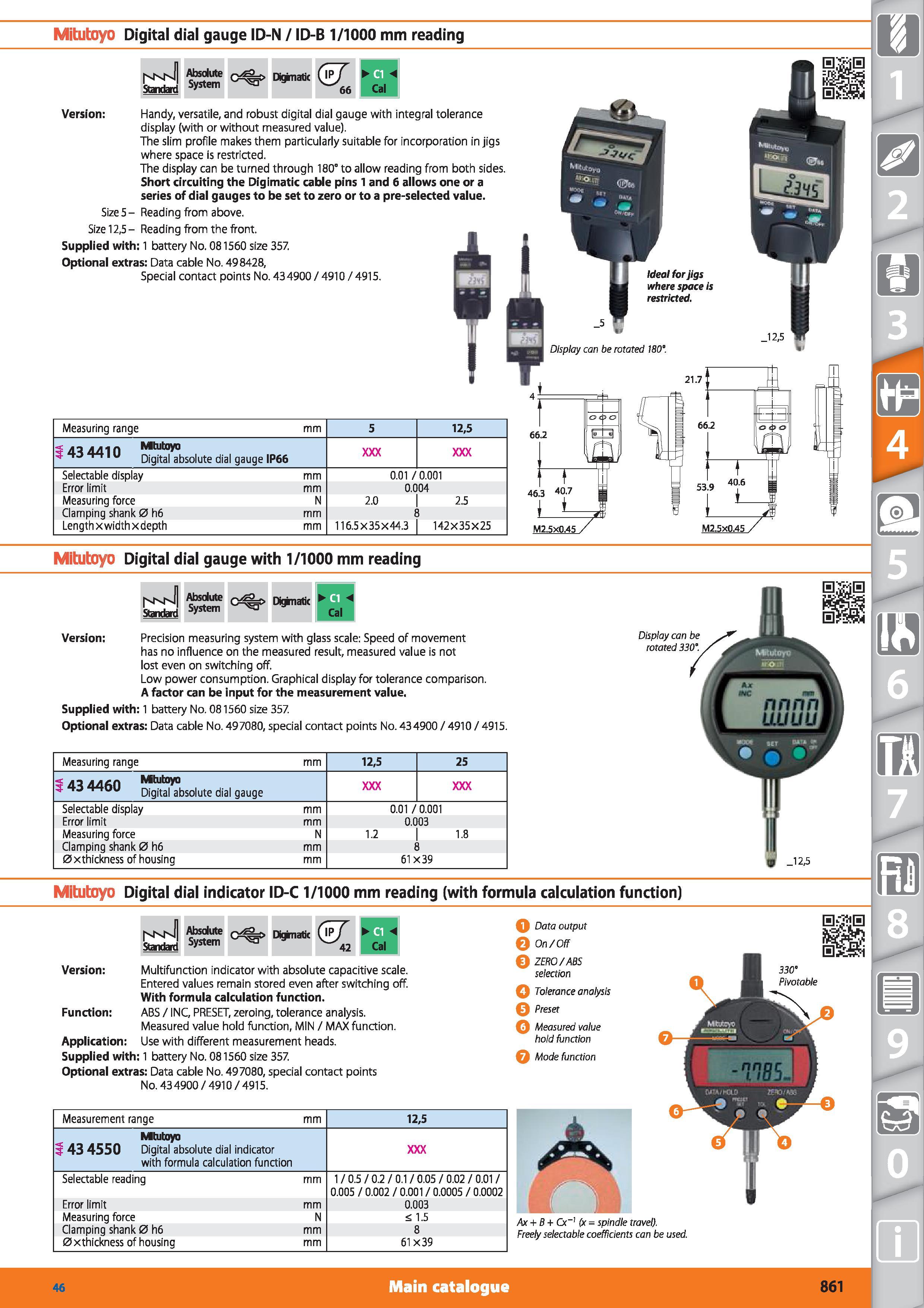

Mitutoyo Digital dial gauge ID-N / ID-B 1/1000 mm reading Standard Absolute System Diginatk (vf 66 Version Handy, versatile, and robust digital dial gauge with integral tolerance display (with or without measured value). The slim profile makes them particularly suitable for incorporation in jigs where space is restricted. The display can be turned through 180° to allow reading from both sides. Short circuiting the Digimatic cable pins 1 and 6 allows one or a series of dial gauges to be set to zero or to a pre-selected value. Size 5- Reading from above. Size 12,5 - Reading from the front. Supplied with 1 battery No. 081560 size 357. Optional extras Data cable No. 498428, Special contact points No. 434900/4910/4915. Measuring range mm 5 12,5 S 43 441 n -r-t u Digital absolute dial gauge IP66 Selectable display mm 0.01 / 0.001 Error limit mm 0.004 Measuring force N 2.0 2.5 Clamping shank 0 h6 mm 8 Lengthxwidthxdepth mm 116.5 X 35X44.3 142X35X25 M2.5X0.45 Mitutoyo Digital dial gauge with 1/1000 mm reading vmJ Standard Absolute C Dkpnatk Hci System Cal Version Precision measuring system with glass scale Speed of movement has no influence on the measured result, measured value is not lost even on switching off. Low power consumption. Graphical display for tolerance comparison. A factor can be input for the measurement value. Supplied with 1 battery No. 081560 size 357. Optional extras Data cable No. 497080, special contact points No. 434900 / 4910 / 4915 Measuring range 3434460 Mhitoyo Digital absolute dial gauge Selectable display Error limit Measuring force Clamping shank 0 h6 0xthickness of housing mm N mm 12,5 25 0.01 / 0.001 0.003 1.2 1.8 8 61x39 W -12'5 Mitutoyo Digital dial indicator ID-C 1/1000 mm reading (with formula calculation function) Standard Absolute System Dhpnatk (Vf 42 Version Multifunction indicator with absolute capacitive scale. Entered values remain stored even after switching off. With formula calculation function. Function ABS / INC, PRESET, zeroing, tolerance analysis. Measured value hold function, MIN / MAX function. Application Use with different measurement heads. Supplied with 1 battery No. 081560 size 357. Optional extras Data cable No. 497080, special contact points No. 43 4900 / 4910 / 4915. o Data output o On/Off ZERO/ABS selection O Tolerance analysis Preset O Measured value hold function o Mode function Measurement range mm 12,5 Mhitoyo 3 43 4550 Digital absolute dial indicator with formula calculation function Selectable reading mm 1 / 0.5 / 0.2 / 0.1 / 0.05 / 0.02 / 0.01 / 0.005 / 0.002 / 0.001 / 0.0005 / 0.0002 Error limit mm 0.003 Measuring force N <; 1.5 Clamping shank 0 h6 mm 8 0xthickness of housing mm 61x39 Ax + B + Cx 1 (x - spindle travel). Freely selectable coefficients can be used. Main catalogue Hoffmann Group 46 861
