857 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.857

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 857 0857 ENG Lab2u

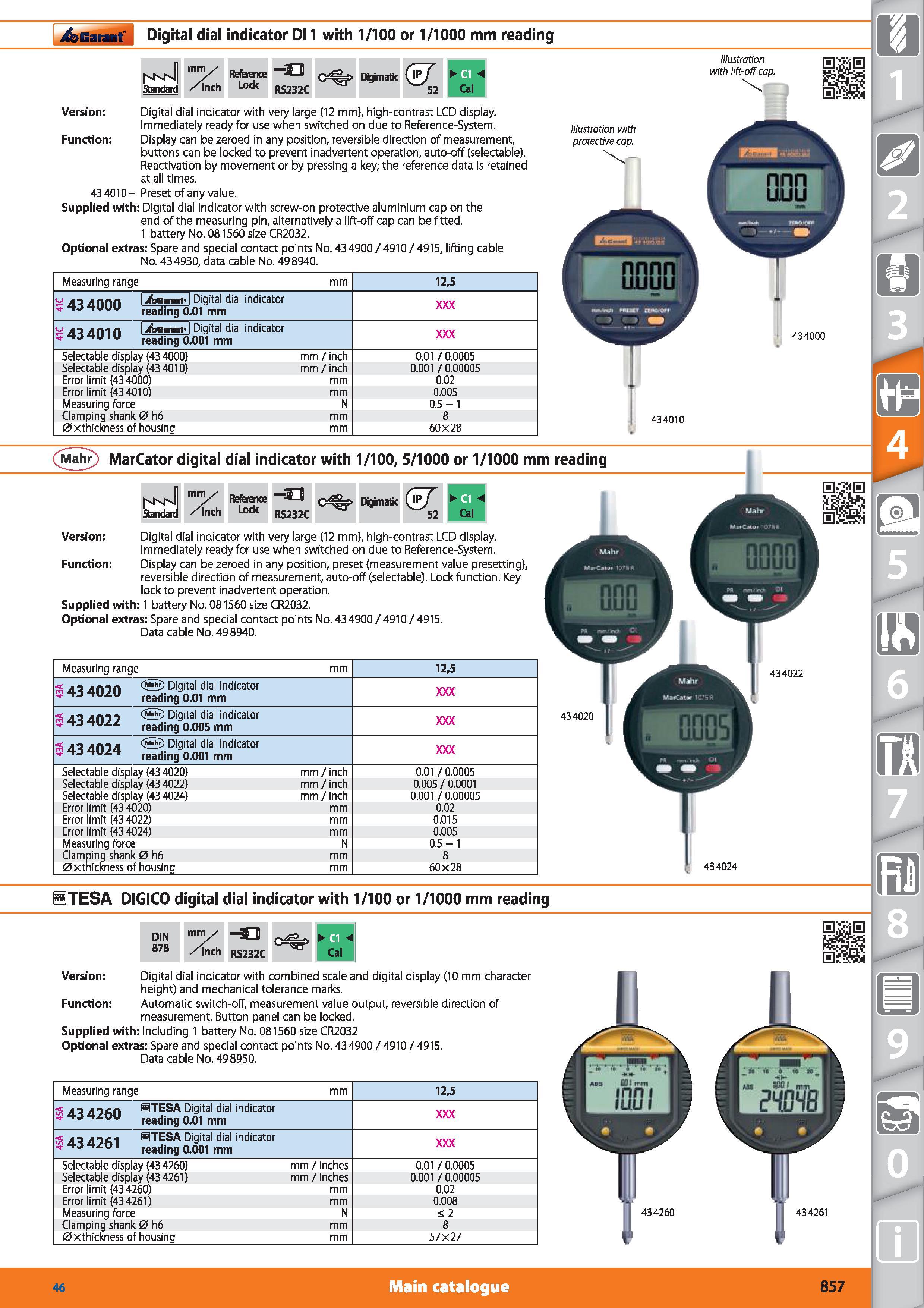

Garant Digital dial indicator D11 with 1/100 or 1/1000 mm reading Standard mm /inch Reference Lock -a RS232C Digknatic (Vf 52 Cal Version Digital dial indicator with very large (12 mm), high-contrast LCD display. Immediately ready for use when switched on due to Reference-System. Function Display can be zeroed in any position, reversible direction of measurement, buttons can be locked to prevent inadvertent operation, auto-off (selectable). Reactivation by movement or by pressing a key; the reference data is retained at all times. 43 4010- Preset of any value. Supplied with Digital dial indicator with screw-on protective aluminium cap on the end of the measuring pin, alternatively a lift-off cap can befitted. 1 battery No. 081560 size CR2032. Optional extras Spare and special contact points No. 43 4900/4910/4915, lifting cable No. 434930, data cable No. 498940. Measuring range mm 12,5 An annn 1 ifbcmt' Digital dial indicator H3 UUU reading 0.01 mm /I /mil) 1 jfbcsant' Digital dial indicator 'f434UIU reading 0.001 mm Selectable display (43 4000) mm / inch 0.01 / 0.0005 Selectable display (434010) mm / inch 0.001 / 0.00005 Error limit (43 4000) mm 0.02 Error limit (434010) mm 0.005 Measuring force N 0.5-1 Clamping shank 0 h6 mm 8 0xthickness of housing mm 60x28 Mahr MarCator digital dial indicator with 1/100,5/1000 or 1/1000 mm reading Standard mm /inch Reference Lock -O RS232C C%> Digknatic (zf 52 < Cal Version Digital dial indicator with very large (12 mm), high-contrast LCD display. Immediately ready for use when switched on due to Reference-System. Function Display can be zeroed in any position, preset (measurement value presetting), reversible direction of measurement, auto-off (selectable). Lock function Key lock to prevent inadvertent operation. Supplied with 1 battery No. 081560 size CR2032. Optional extras Spare and special contact points No.434900 / 4910 / 4915. Data cable No. 498940. Measuring range mm 12,5 < ij j/nn Digital dial indicator 3 reading 0.01 mm A3 At\T) Digital dial indicator , reading 0.005 mm 3 A.mA Digital dial indicator , reading 0.001 mm Selectable display (43 4020) mm / inch 0.01 / 0.0005 Selectable display (43 4022) mm / inch 0.005 / 0.0001 Selectable display (43 4024) mm / inch 0.001 / 0.00005 Error limit (434020) mm 0.02 Error limit (434022) mm 0.015 Error limit (43 4024) mm 0.005 Measuring force N 0.5-1 Clamping shank 0 h6 mm 8 0xthickness of housing mm 60x28 HTESA DIGICO digital dial indicator with 1/100 or 1/1000 mm reading DIN 878 mms /inch RS232C Version Digital dial indicator with combined scale and digital display (10 mm character height) and mechanical tolerance marks. Function Automatic switch-off, measurement value output, reversible direction of measurement. Button panel can be locked. Supplied with Including 1 battery No. 081560 size CR2032 Optional extras Spare and special contact points No.434900/4910/4915. Data cable No. 498950. Measuring range mm 12,5 aj A’jan BTESA Digital dial indicator , 3 reading 0.01 mm An i BTESA Digital dial indicator , ‘tzo I reading 0.001 mm Selectable display (43 4260) mm / inches 0.01 / 0.0005 Selectable display (434261) mm / inches 0.001 / 0.00005 Error limit (43 4260) mm 0.02 Error limit (434261) mm 0.008 Measuring force N S2 Clamping shank 0 h6 mm 8 0xthickness of housing mm 57x27 46 Main catalogue
