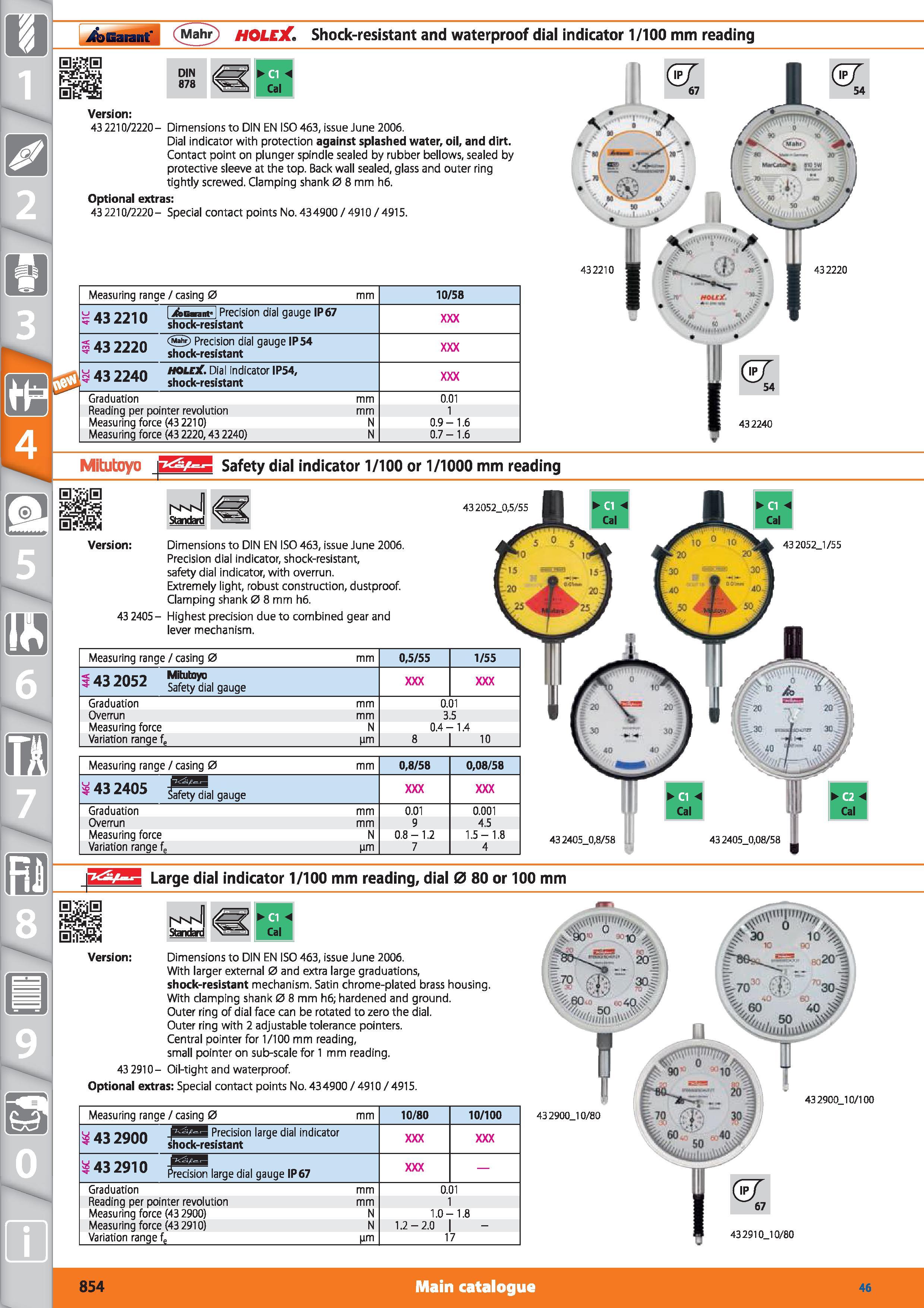

854 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.854

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 854 0854 ENG Lab2u

Garant Mahr HOLEX Shock-resistant and waterproof dial indicator 1/100 mm reading DIN 878 Version 43 2210/2220- Dimensions to DIN EN ISO 463, issue June 2006. Dial indicator with protection against splashed water, oil, and dirt. Contact point on plunger spindle sealed by rubber bellows, sealed by protective sleeve at the top. Back wall sealed, glass and outer ring tightly screwed. Clamping shank 0 8 mm h6. Optional extras 43 2210/2220- Special contact points No. 434900 / 4910 /4915. Measuring range / casing 0 mm 10/58 43 2210 j&Gnnt-l Precision dial gauge IP67 shock-resistant 143 2220 Precision dial gauge IP54 shock-resistant 3 43 2240 HOLEX Dial indicator IP54, shock-resistant Graduation mm 0.01 Reading per pointer revolution mm 1 Measuring force (43 2210) N 0.9-1.6 Measuring force (43 2220,43 2240) N 0.7-1.6 432210 I OT 54 432240 Mitutoyo Safety dial indicator 1/100 or 1/1000 mm reading 0 Version vmJ Standard 43 2052_0,5/55 II ffl Cal Cal Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicator, shock-resistant, safety dial indicator, with overrun. Extremely light, robust construction, dustproof. Clamping shank 0 8 mm h6. 43 2405- Highest precision due to combined gear and lever mechanism. 43 2052J/55 Measuring range / casing 0 mm 0,5/55 1/55 3 43 2052 Mihitayo 5 3 ZK13Z safety dial gauge Graduation mm 0.01 Overrun mm 3.5 Measuring force N 0.4- -1.4 Variation range fe Hm 8 10 Measuring range / casing 0 mm 0,8/58 0,08/58 43 2405 i falgauge Graduation mm 0.01 0.001 Overrun mm 9 4.5 Measuring force N 0.8-1.2 1.5- 1.8 Variation range fe nm 7 4 Cal Large dial indicator 1/100 mm reading, dial 0 80 or 100 mm f=P Standard Cal >90 10 Version Dimensions to DIN EN ISO 463, issue June 2006. With larger external 0 and extra large graduations, shock-resistant mechanism. Satin chrome-plated brass housing. With clamping shank 0 8 mm h6; hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. 43 2910- Oil-tight and waterproof. Optional extras Special contact points No. 434900 / 4910 /4915. j70 (S. J Measuring range / casing 0 mm 10/80 10/100 Viii Tonn MtfWI Precision larqp dial indicator S 3 ZVUU shock-resistant a 43 2910 Precision large dial gauge IP67 Graduation mm 0.01 Reading per pointer revolution mm 1 Measuring force (43 2900) N 1.0- -1.8 Measuring force (43 2910) N 1.2-2.0 - Variation range fP nm 17 43 2900_10/80 , i 43 2900_10/100 ( T 67 432910J0/80 854 Main catalogue Hoffmann Group 46
