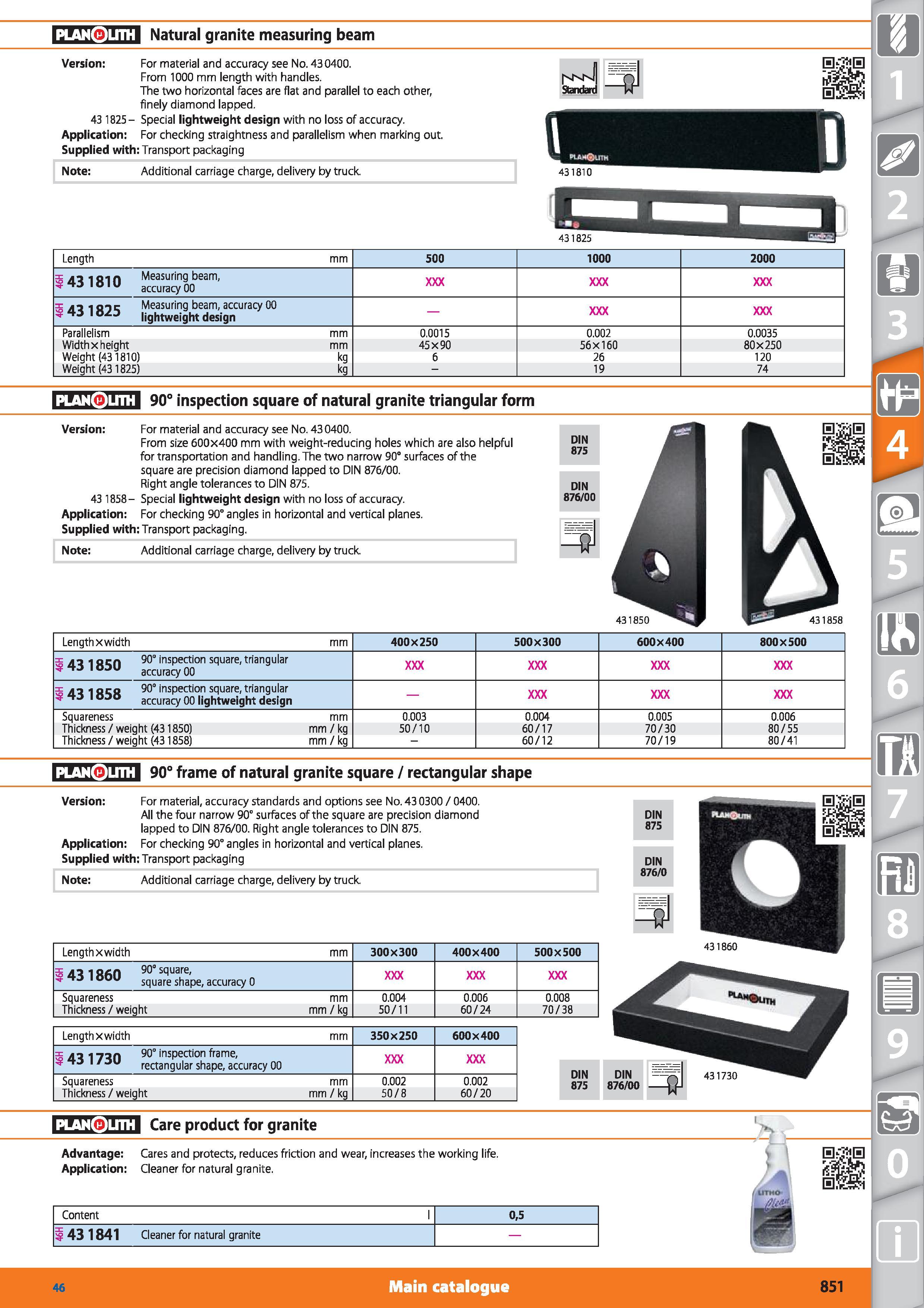

851 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.851

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 851 0851 ENG Lab2u

planQuth Natural granite measuring beam Version For material and accuracy see No. 43 0400. From 1000 mm length with handles. The two horizontal faces are flat and parallel to each other, finely diamond lapped. 43 1825- Special lightweight design with no loss of accuracy. Application For checking straightness and parallelism when marking out. Supplied with Transport packaging Note Additional carriage charge, delivery by truck 431825 Length mm 500 1000 2000 ii ism Measuring beam, , lolu accuracy00 i ij ime Measuring beam,accuracy00 'r lightweight design Parallelism mm 0.0015 0.002 0.0035 Width x height mm 45x90 56x160 80x 250 Weight (431810) kg 6 26 120 Weight (431825) kg - 19 74 planQuth 90° inspection square of natural granite triangular form Version For material and accuracy see No. 430400. From size 600x400 mm with weight-reducing holes which are also helpful for transportation and handling. The two narrow 90° surfaces of the square are precision diamond lapped to DIN 876/00. Right angle tolerances to DIN 875. 43 1858- Special lightweight design with no loss of accuracy. Application For checking 90° angles in horizontal and vertical planes. Supplied with Transport packaging. DIN 875 DIN 876/00 Note Additional carriage charge, delivery by truck 431850 Length x width mm 400x250 500x300 600X 400 800X500 43 i gen 90° inspection square, triangular 1 accuracy 00 v 4 1 qco 90° inspection square, triangular accuracy 00 lightweight design Squareness mm 0.003 0.004 0.005 0.006 Thickness / weight (431850) mm / kg 50/10 60/17 70/30 80/55 Thickness / weight (431858) mm / kg - 60/12 70/19 80/41 431858 planQuth 90° frame of natural granite square / rectangular shape Version For material, accuracy standards and options see No. 43 0300 / 0400. All the four narrow 90° surfaces of the square are precision diamond lapped to DIN 876/00. Right angle tolerances to DIN 875. Application For checking 90° angles in horizontal and vertical planes. Supplied with Transport packaging Note Additional carriage charge, delivery by truck DIN 875 1 DIN 876/0 -4 i Length x width mm 300X300 400X 400 500X500 431860 900 stluare- square shape, accuracy 0 Squareness mm 0.004 0.006 0.008 Thickness / weight mm / kg 50/11 60/24 70/38 Length x width mm 350x250 600x 400 3= jt -ion 90° inspection frame, g I /3U rectangular shape, accuracy 00 Squareness mm 0.002 0.002 Thickness / weight mm / kg 50/8 60/20 l lCH'in Care product for granite Advantage Cares and protects, reduces friction and wear, increases the working life. Application Cleaner for natural granite. Content 1 0,5 43 1841 Cleaner for natural granite Main catalogue Hoffmann Group 46 851
