852 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.852

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 852 0852 ENG Lab2u

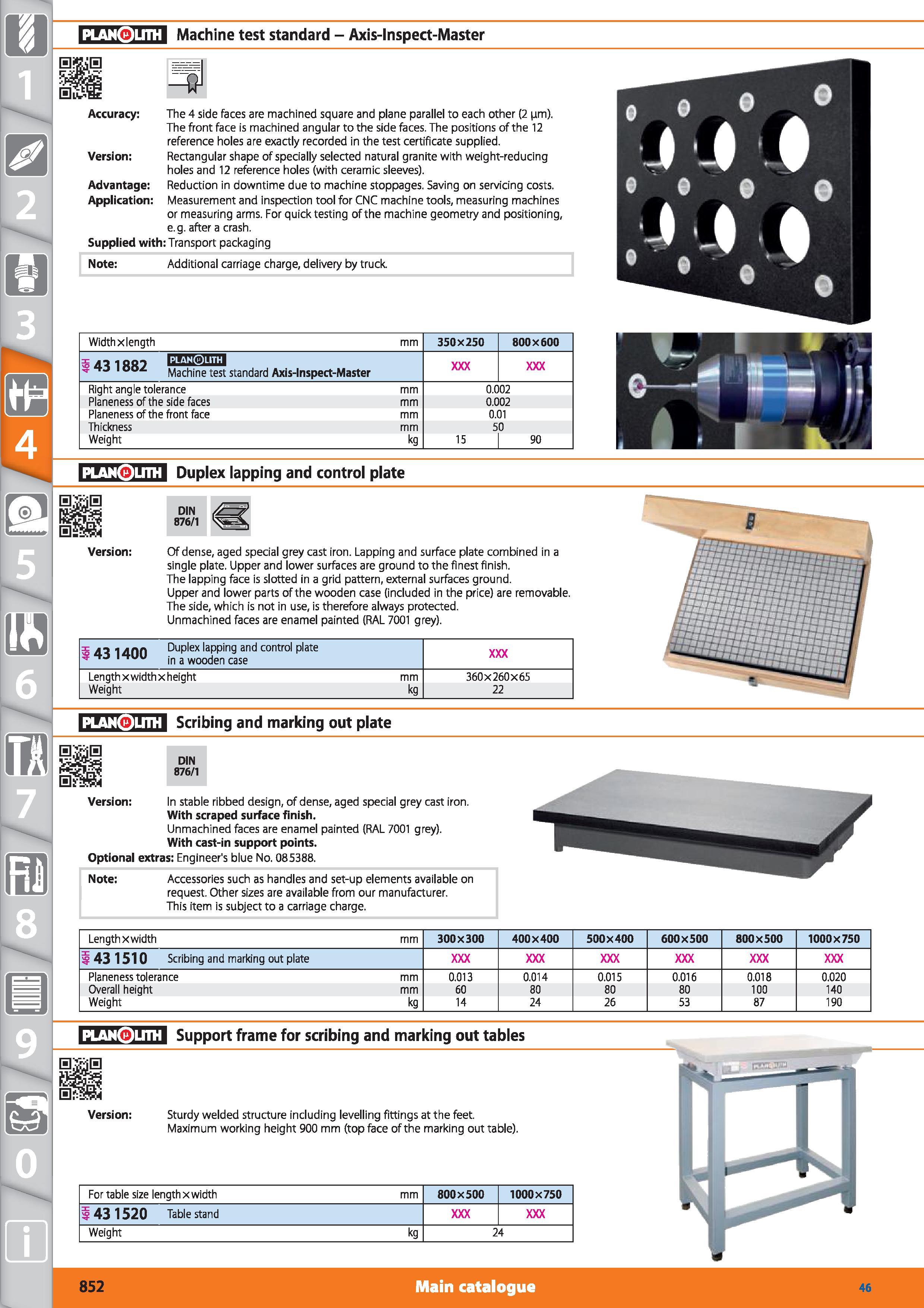

5 3E 6 7 8 m planQuth Machine test standard - Axis-lnspect-Master Accuracy The 4 side faces are machined square and plane parallel to each other (2 nm). The front face is machined angular to the side faces. The positions of the 12 reference holes are exactly recorded in the test certificate supplied. Version Rectangular shape of specially selected natural granite with weight-reducing holes and 12 reference holes (with ceramic sleeves). Advantage Reduction in downtime due to machine stoppages. Saving on servicing costs. Application Measurement and inspection tool for CNC machine tools, measuring machines or measuring arms. For quick testing of the machine geometry and positioning, e.g. after a crash. Supplied with Transport packaging Note Additional carriage charge, delivery by truck e e JI J Widthx length 1431882 PLAN0LITH Machine test standard Axis-lnspect-Master Right angle tolerance Planeness of the side faces Planeness of the front face Thickness Weight mm kg 350x250 800x600 0.002 0.002 0.01 50 15 90 PLAN0UTH Duplex lapping and control plate Version DIN 876/1 Of dense, aged special grey cast iron. Lapping and surface plate combined in a single plate. Upper and lower surfaces are ground to the finest finish. The lapping face is slatted in a grid pattern, external surfaces ground. Upper and lower parts of the wooden case (included in the price) are removable. The side, which is not in use, is therefore always protected. Unmachined faces are enamel painted (RAL 7001 grey). Al 1 Aflfl Duplex lapping and control plate 1 IUU in a wooc en case Length x widthx height mm 360x260x65 Weight kg 22 PLAN0UTH Scribing and marking out plate DIN 876/1 Version In stable ribbed design, of dense, aged special grey cast iron. With scraped surface finish. Unmachined faces are enamel painted (RAL 7001 grey). With cast-in support points. Optional extras Engineer's blue No. 085388. Note Accessories such as handles and set-up elements available on request. Other sizes are available from our manufacturer. This item is subject to a carriage charge. Len gth x width mm 300X300 400X400 500X400 600X500 800 X 500 1000X750 43 1510 Scribing and marking out plate Planeness tolerance mm 0.013 0.014 0.015 0.016 0.018 0.020 Overall height mm 60 80 80 80 100 140 Weight kg 14 24 26 53 87 190 PLAN0UTH Support frame for scribing and marking out tables Sturdy welded structure including levelling fittings at the feet. Maximum working height 900 mm (top face of the marking out table). For table size length x width mm 800x500 1000x 750 43 1520 Table stand Weight kg 24 852 Main catalogue Hoffmann Group 46
