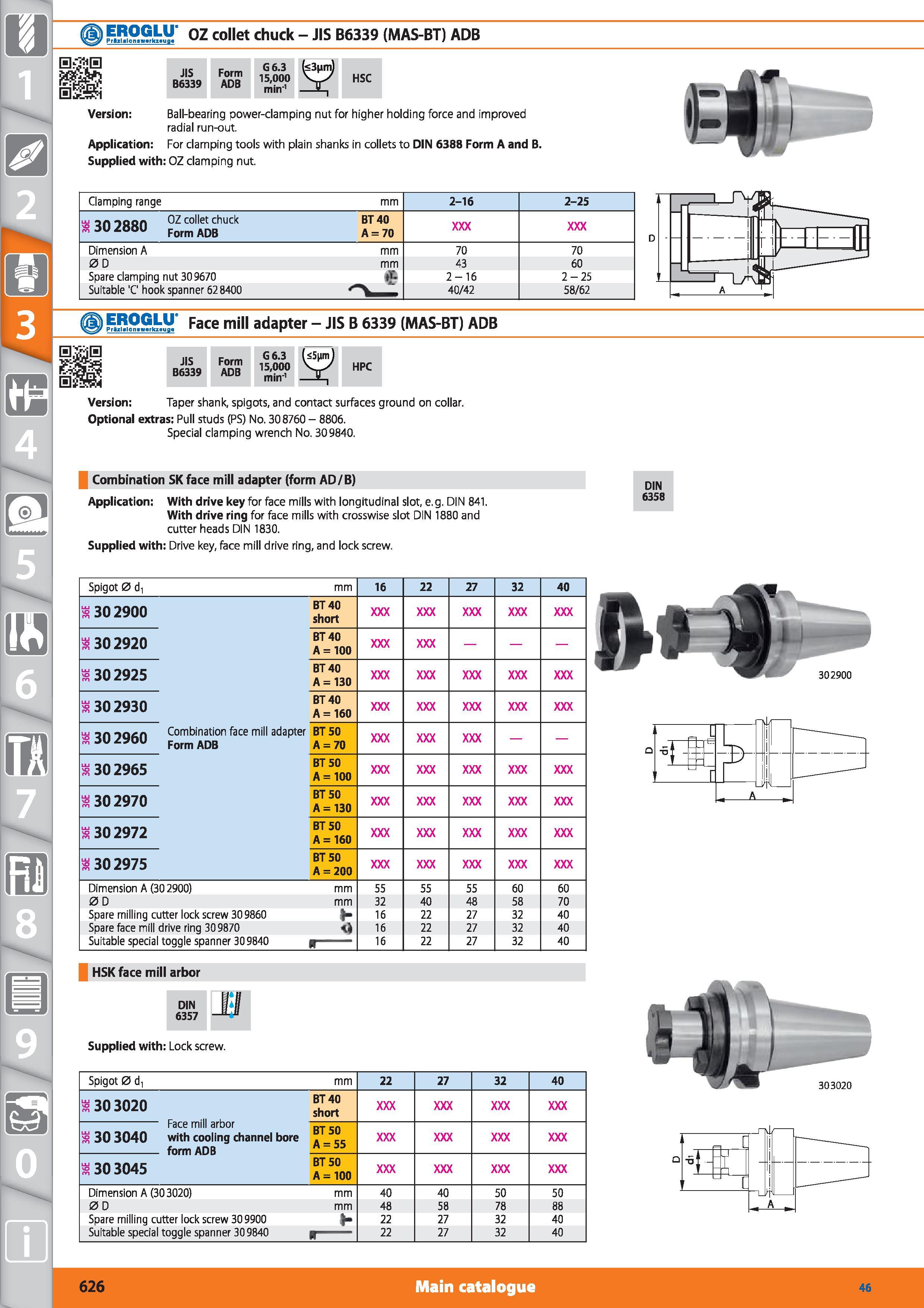

626 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.626

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 626 0626 ENG Lab2u

1 F.ROGLU OZ collet chuck - JIS B6339 (MAS-BT) ADB JIS B6339 Form ADB G6.3 15,000 min-1 HSC Version Ball-bearing power-damping nut for higher holding force and improved radial run-out. Application For clamping tools with plain shanks in collets to DIN 6388 Form A and B. Supplied with OZ clamping nut. 6ft Clamping range mm 2-16 2-25 lu noon collet chuck S 30 2880 Form ADB BT 40 A 70 Dimension A mm 70 70 0 D mm 43 60 Spare clamping nut 309670 2-16 2-25 Suitable 'C' hook spanner 62 8400 40/42 58/62 EBSSIST Face mill adapter - JIS B 6339 (MAS-BT) ADB JIS B6339 Form ADB G6.3 15,000 min-' HPC Version Taper shank, spigots, and contact surfaces ground on collar. Optional extras Pull studs (PS) No. 308760 - 8806. Special clamping wrench No. 309840. Combination SK face mill adapter (form AD/B) Application With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with Drive key, face mill drive ring, and lock screw. DIN 6358 Spigot 0 d. mm 16 22 27 32 40 302900 BT 40 short 302920 BT 40 A 100 302925 BT 40 A 130 302930 BT 40 A 160 m ,g 2950 Combination face mill adapter m Form ADB BT 50 A 70 302965 BT 50 A 100 302970 BT 50 A 130 302972 BT 50 A 160 302975 BT 50 A 200 Dimension A (30 2900) mm 55 55 55 60 60 0 D mm 32 40 48 58 70 Spare milling cutter lock screw 309860 h 16 22 27 32 40 Spare face mill drive ring 309870 16 22 27 32 40 Suitable special toggle spanner 309840 n 16 22 27 32 40 HSK face mill arbor DIN 6357 Supplied with Lock screw. Spigot 0 d. mm 22 27 32 40 303020 BT 40 short 303040 Face mill arbor with cooling channel bore BT 50 A 55 303045 BT 50 A 100 Dimension A (303020) mm 40 40 50 50 0 D mm 48 58 78 88 Spare milling cutter lock screw 309900 b 22 27 32 40 Suitable special toggle spanner 309840 y 22 27 32 40 302900 rdr 303020 626 Main catalogue Hoffmann Group 46
