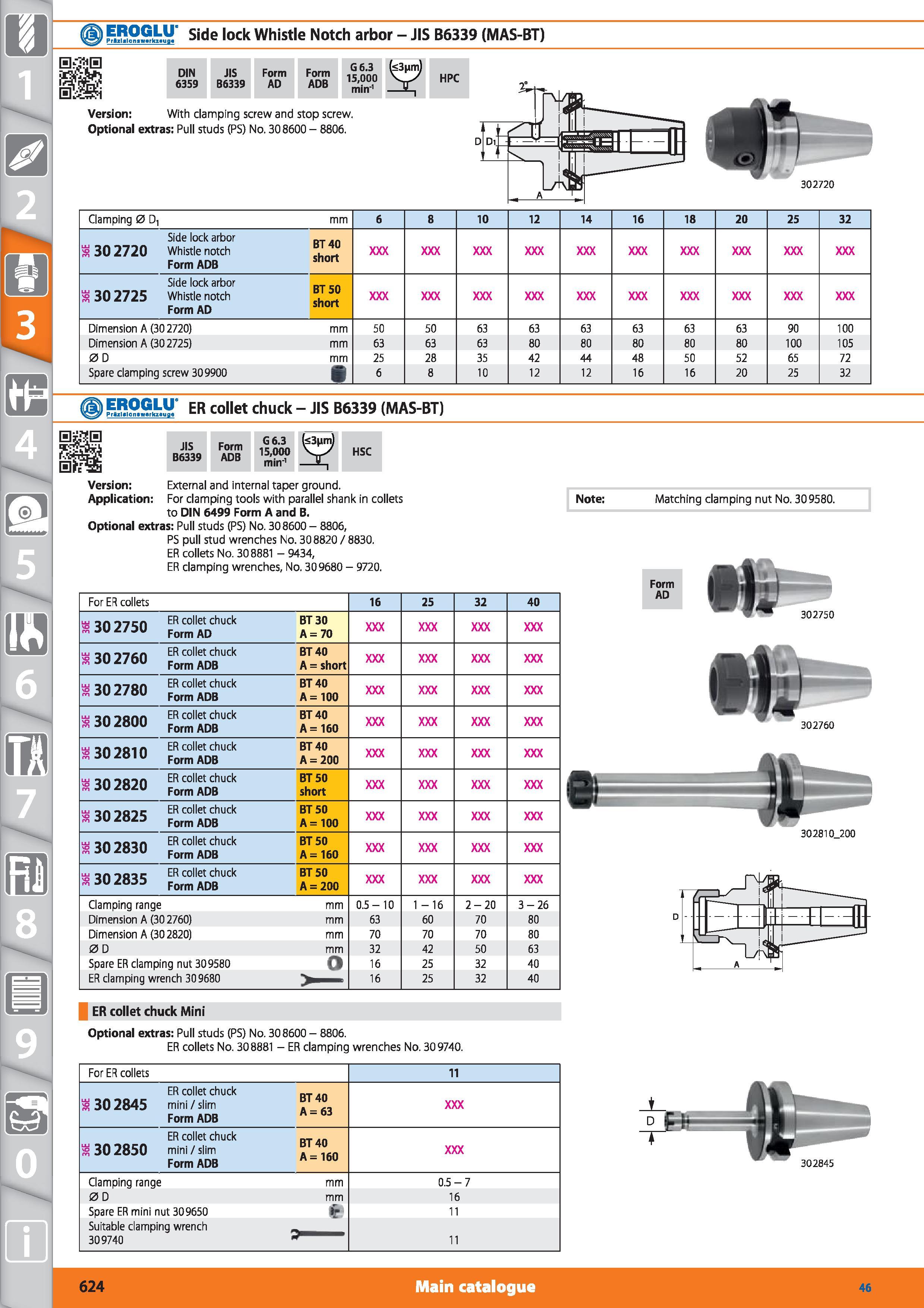

SSSfiSkfiT Side lock Whistle Notch arbor - JIS B6339 (MAS-BT) 0 g0 0 DIN 6359 JIS B6339 Form AD Form ADB G6.3 15,000 min-1 1 HPC Version With clamping screw and stop screw. Optional extras Pull studs (PS) No. 308600 - 8806. 302720 Clamping 0 D, mm 6 8 10 12 14 16 18 20 25 32 Side lock arbor 30 2720 Whistle notch Form ADB BT 40 short Side lock arbor 30 2725 Whistle notch Form AD BT 50 short Dimension A (30 2720) mm 50 50 63 63 63 63 63 63 90 100 Dimension A (302725) mm 63 63 63 80 80 80 80 80 100 105 0 D mm 25 28 35 42 44 48 50 52 65 72 Spare clamping screw 309900 6 8 10 12 12 16 16 20 25 32 EBgaar ER collet chuck - JIS B6339 (MAS-BT) JIS B6339 Form ADB G6.3 15,000 min-1 HSC Version External and internal taper ground. Application For clamping tools with parallel shank in collets to DIN 6499 Form A and B. Optional extras Pull studs (PS) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830. ER collets No. 308881 - 9434, ER clamping wrenches. No. 309680 - 9720. ER collet chuck Mini Optional extras Pull studs (PS) No. 308600 - 8806. ER collets No. 308881 - ER clamping wrenches No. 309740. Note Matching clamping nut No. 30 9580. For ER collets 16 25 32 40 302750 ER collet chuck Form AD BT 30 A 70 s 30 2760 ER collet chuck Form ADB BT 40 A short 302780 ER collet chuck Form ADB BT 40 A =100 302800 ER collet chuck Form ADB BT 40 A= 160 302810 ER collet chuck Form ADB BT 40 A 200 302820 ER collet chuck Form ADB BT 50 short 302825 ER collet chuck Form ADB BT 50 A 100 302830 ER collet chuck Form ADB BT 50 A= 160 302835 ER collet chuck Form ADB BT 50 A 200 Clamping range mm 0.5-10 1 -16 2-20 3-26 Dimension A (30 2760) mm 63 60 70 80 Dimension A (30 2820) mm 70 70 70 80 0 D mm 32 42 50 63 Spare ER clamping nut 309580 o 16 25 32 40 ER damping wrench 309680 16 25 32 40 Form AD 302760 d 302810_200 For ER collets 11 302845 ER collet chuck mini/slim Form ADB BT 40 A 63 302850 ER collet chuck mini/slim Form ADB BT 40 A =160 Clamping range mm o Ln 1 J 0 D mm 16 Spare ER mini nut 309650 11 Suitable clamping wrench 309740 11 jjJBE i 302845 624 Main catalogue
