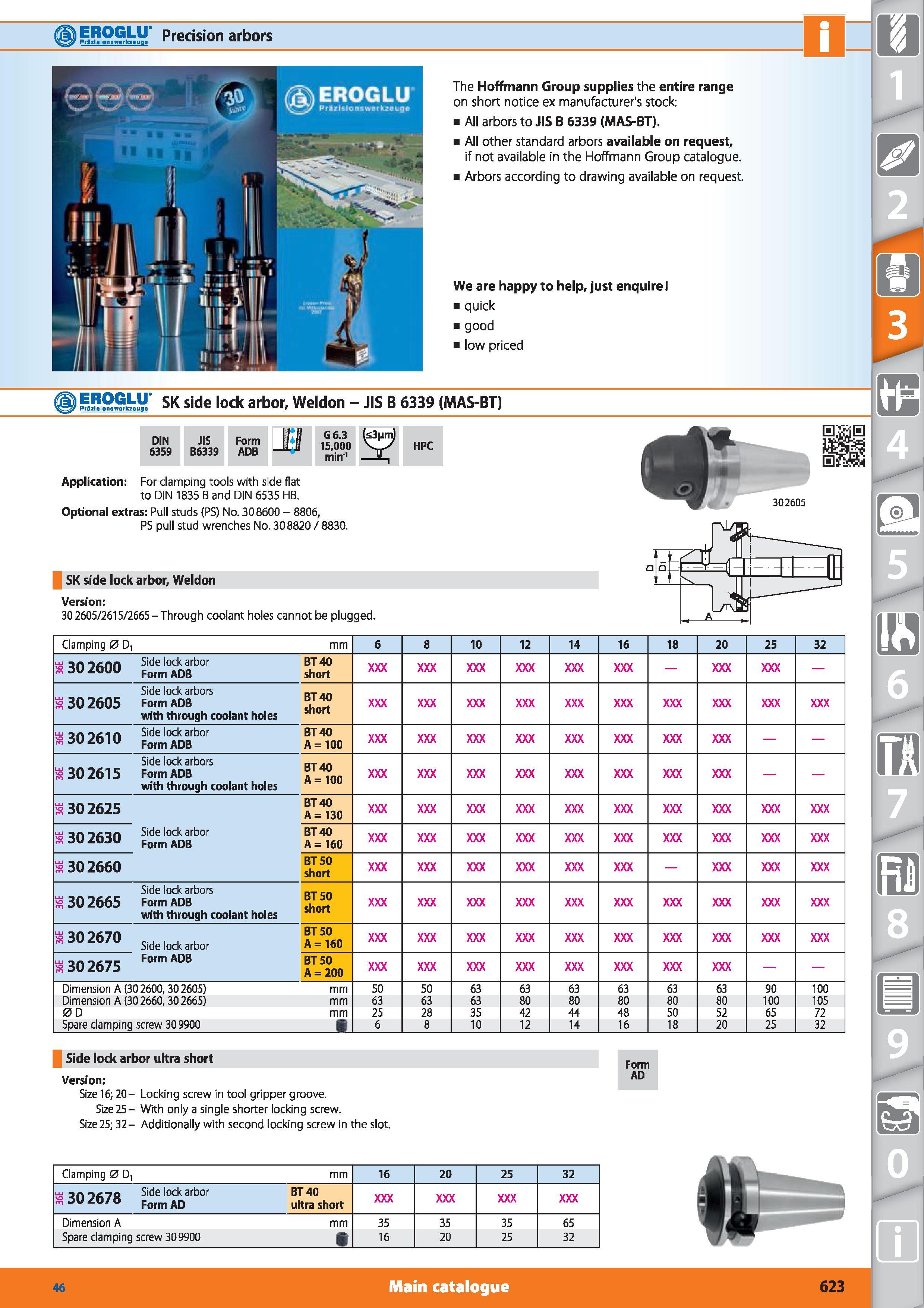

JIS B6339 Form ADB G6.3 15,000 min'1 IEROGLIT Prizl lotm Brkz ug Precision arbors The Hoffmann Group supplies the entire range on short notice ex manufacturer's stock All arbors to JIS B 6339 (MAS-BT). All other standard arbors available on request, if not available in the Hoffmann Group catalogue. Arbors according to drawing available on request. We are happy to help, just enquire quick good low priced IEROGLU' SK side lock arbor, Weldon - JIS B 6339 (MAS-BT) Application For clamping tools with side flat to DIN 1835 B and DIN 6535 HB. Optional extras Pull studs (PS) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830. SK side lock arbor, Weldon Version 302605/2615/2665-Through coolant holes cannot be plugged. HSiH 302605 Clamping 0 D, mm 6 8 10 12 14 16 18 20 25 32 302600 Side lock arbor Form ADB BT 40 short 302605 Side lock arbors Form ADB with through coolant holes BT 40 short 30 2610 Side lock arbor Form ADB BT 40 A 100 30 2615 Side lock arbors Form ADB with through coolant holes BT 40 A 100 302625 BT 40 A 130 302630 Side lock arbor Form ADB BT 40 A 160 302660 BT 50 short 302665 Side lock arbors Form ADB with through coolant holes BT 50 short 302670 Side lock arbor BT 50 A 160 302675 Form ADB BT 50 A 200 Dimension A (302600,302605) mm 50 50 63 63 63 63 63 63 90 100 Dimension A (30 2660,30 2665) mm 63 63 63 80 80 80 80 80 100 105 0D mm 25 28 35 42 44 48 50 52 65 72 Spare clamping screw 309900 6 8 10 12 14 16 18 20 25 32 Side lock arbor ultra short Version Size 16; 20- Locking screw in tool gripper groove. Size 25- With only a single shorter locking screw. Size 25; 32 - Additionally with second locking screw in the slot. Form AD Clamping 0 D, mm 16 20 25 32 302678 Side lock arbor Form AD BT 40 ultra short Dimension A mm 35 35 35 65 Spare clamping screw 309900 16 20 25 32 Main catalogue Hoffmann Group 46 623
