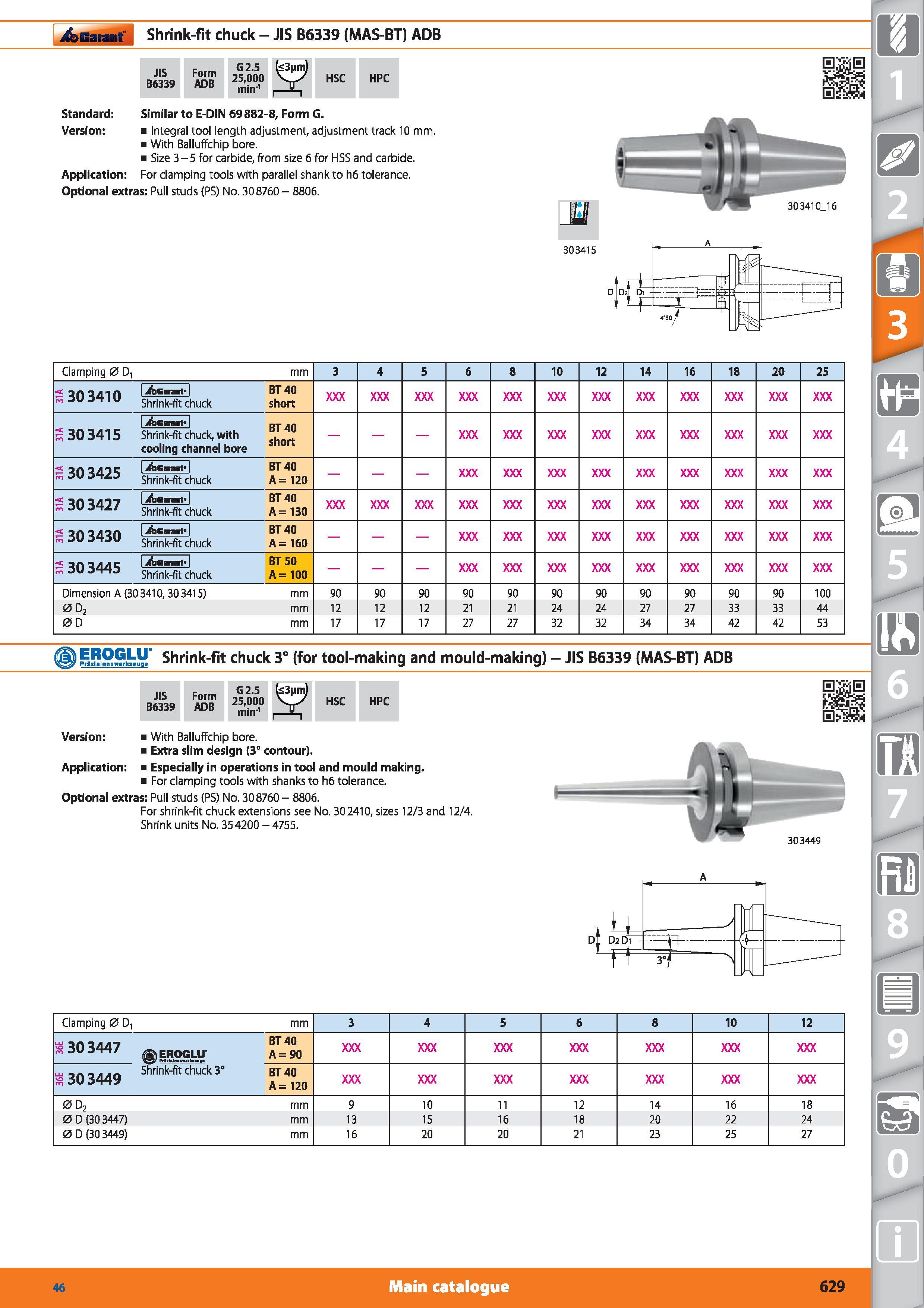

Garant Shrink-fit chuck - JIS B6339 (MAS-BT) ADB JIS B6339 Form ADB G 2.5 25,000 min'1 HSC HPC Standard Similar to E-DIN 69882-8, Form G. Version Integral tool length adjustment, adjustment track 10 mm. With Balluffchip bore. Size 3-5 for carbide, from size 6 for HSS and carbide. Application For clamping tools with parallel shank to h6 tolerance. Optional extras Pull studs (PS) No. 30 8760 - 8806. 303415 Clamping 0 D, mm 3 4 5 6 8 10 12 14 16 18 20 25 s303410 I jfocnnt I BT 40 short Shrink-fit chuck h 30 3415 lifeGrait'l Shrink-fit chuck, with cooling channel bore BT 40 short h 30 3425 lifeGmnt” Shrink-fit chuck BT 40 A 120 h 30 3427 I j&GnHt I BT 40 A 130 Shrink-fit chuck s 30 3430 I jfeGmnt” BT 40 A 160 Shrink-fit chuck 30 3445 lifeGnnt Shrink-fit chuck CO < Dimension A (303410,303415) mm 90 90 90 90 90 90 90 90 90 90 90 100 0D2 mm 12 12 12 21 21 24 24 27 27 33 33 44 0 D mm 17 17 17 27 27 32 32 34 34 42 42 53 I Shrink-fit chuck 3° (for tool-making and mould-making) - JIS B6339 (MAS-BT) ADB JIS B6339 Form ADB G 2.5 25,000 min'1 HSC HPC Version With Balluffchip bore. Extra slim design (3° contour). Application Especially in operations in tool and mould making. For clamping tools with shanks to h6 tolerance. Optional extras Pull studs (PS) No. 308760 - 8806. For shrink-fit chuck extensions see No. 302410, sizes 12/3 and 12/4. Shrink units No. 35 4200 - 4755. Clamping 0 D, mm 3 4 5 6 8 10 12 vO 30 3447 m EROGLU BT 40 A 90 lu Shrink-fit chuck 3° s 30 3449 BT 40 A 120 0D2 mm 9 10 11 12 14 16 18 0D (303447) mm 13 15 16 18 20 22 24 0D (303449) mm 16 20 20 21 23 25 27 303449 m 6 9 30 3410_16 Main catalogue Hoffmann Group 46 629
