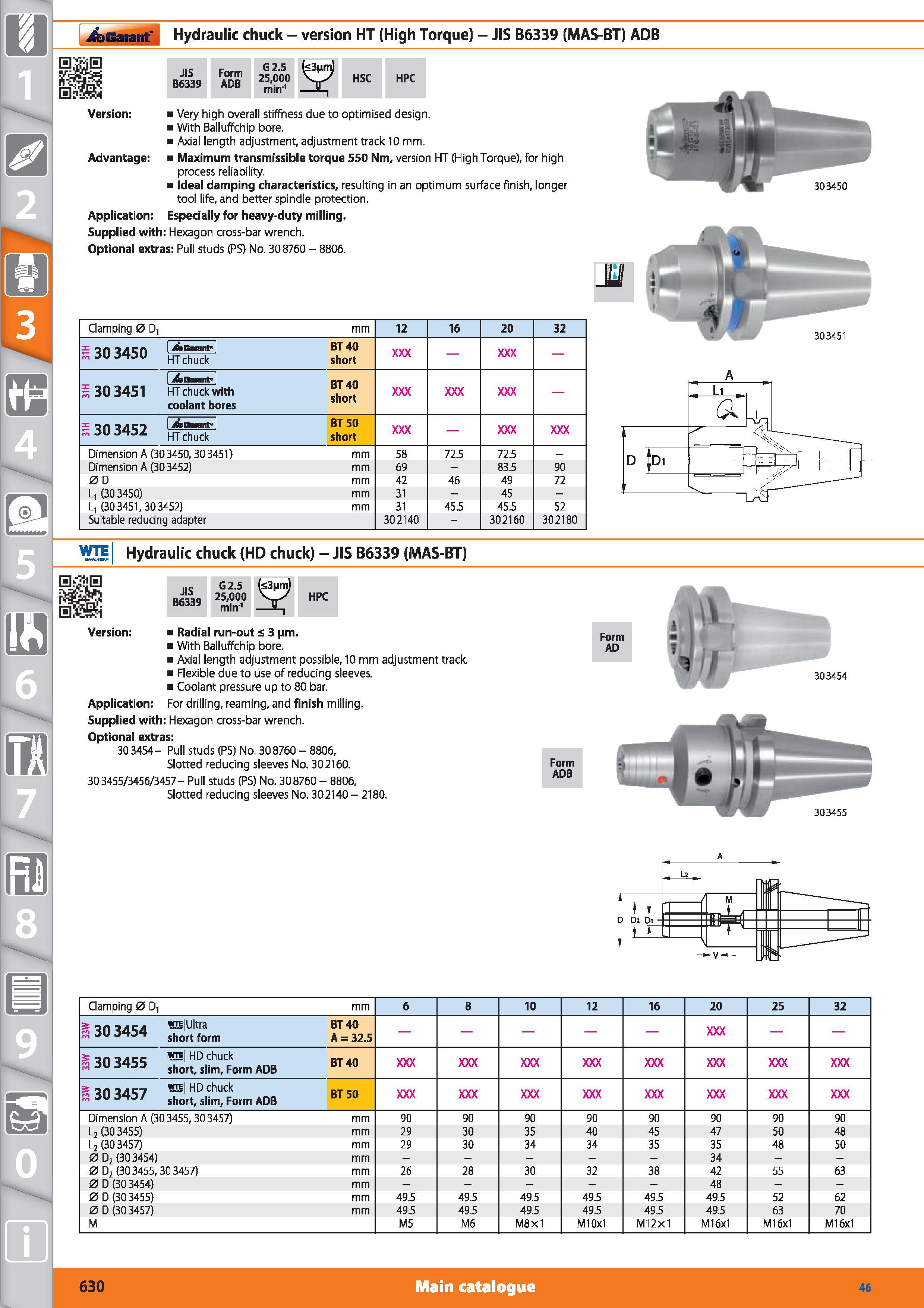

Garant Hydraulic chuck - version HT (High Torque) - JIS B6339 (MAS-BT) ADB JIS B6339 Form ADB G2.5 25,000 min-1 HSC HPC Version Very high overall stiffness due to optimised design. With Balluffchip bore. Axial length adjustment, adjustment track 10 mm. Advantage Maximum transmissible torque 550 Nm, version HT (High Torque), for high process reliability. Ideal damping characteristics, resulting in an optimum surface finish, longer tool life, and better spindle protection. Application Especially for heavy-duty milling. Supplied with Hexagon cross-bar wrench. Optional extras Pull studs (PS) No. 308760 - 8806. Clamping 0 D, mm 12 16 20 32 1303450 1 jfeGnnP HT chuck BT 40 short 1303451 I i&Gannt 1 HT chuck with coolant bores BT 40 short 1303452 1 JfbGarant" HT chuck BT 50 short Dimension A (303450,303451) mm 58 72.5 72.5 - Dimension A (303452) mm 69 - 83.5 90 0 D mm 42 46 49 72 L, (303450) mm 31 - 45 - L, (303451,303452) mm 31 45.5 45.5 52 Suitable reducing adapter 302140 - 302160 302180 WTE Hydraulic chuck (HD chuck) - JIS B6339 (MAS-BT) JIS B6339 G2.5 25,000 min'1 HPC Version Radial run-out 3 jim. With Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application For drilling, reaming, and finish milling. Supplied with Hexagon cross-bar wrench. Optional extras 30 3454- Pull studs (PS) No. 308760 - 8806, Slotted reducing sleeves No. 302160. 303455/3456/3457- Pull studs (PS) No. 308760 - 8806, Slotted reducing sleeves No. 302140-2180. Form ADB Form AD 8 0 m Clamping 0 D, mm 6 8 10 12 16 20 25 32 nn iaha ’EElUltra s 30 3454 shortform BT 40 A 32.5 an chuck S3 3U 3 133 shor( S jm Form ApB BT 40 "’ l chuck S3 3U 3 3 / short s jm Form ADB BT 50 Dimension A (303455,303457) mm 90 90 90 90 90 90 90 90 L2 (30 3455) mm 29 30 35 40 45 47 50 48 L2 (303457) mm 29 30 34 34 35 35 48 50 0D2 (303454) mm - 34 0D2 (30 3455,30 3457) mm 26 28 30 32 38 42 55 63 0D (303454) mm - 48 0D (303455) mm 49.5 49.5 49.5 49.5 49.5 49.5 52 62 0D (303457) mm 49.5 49.5 49.5 49.5 49.5 49.5 63 70 M M5 M6 M8x1 Ml 0x1 M12X1 M16x1 Ml 6x1 M16x1 303450 303451 303454 303455 630 Main catalogue Hoffmann Group 46
