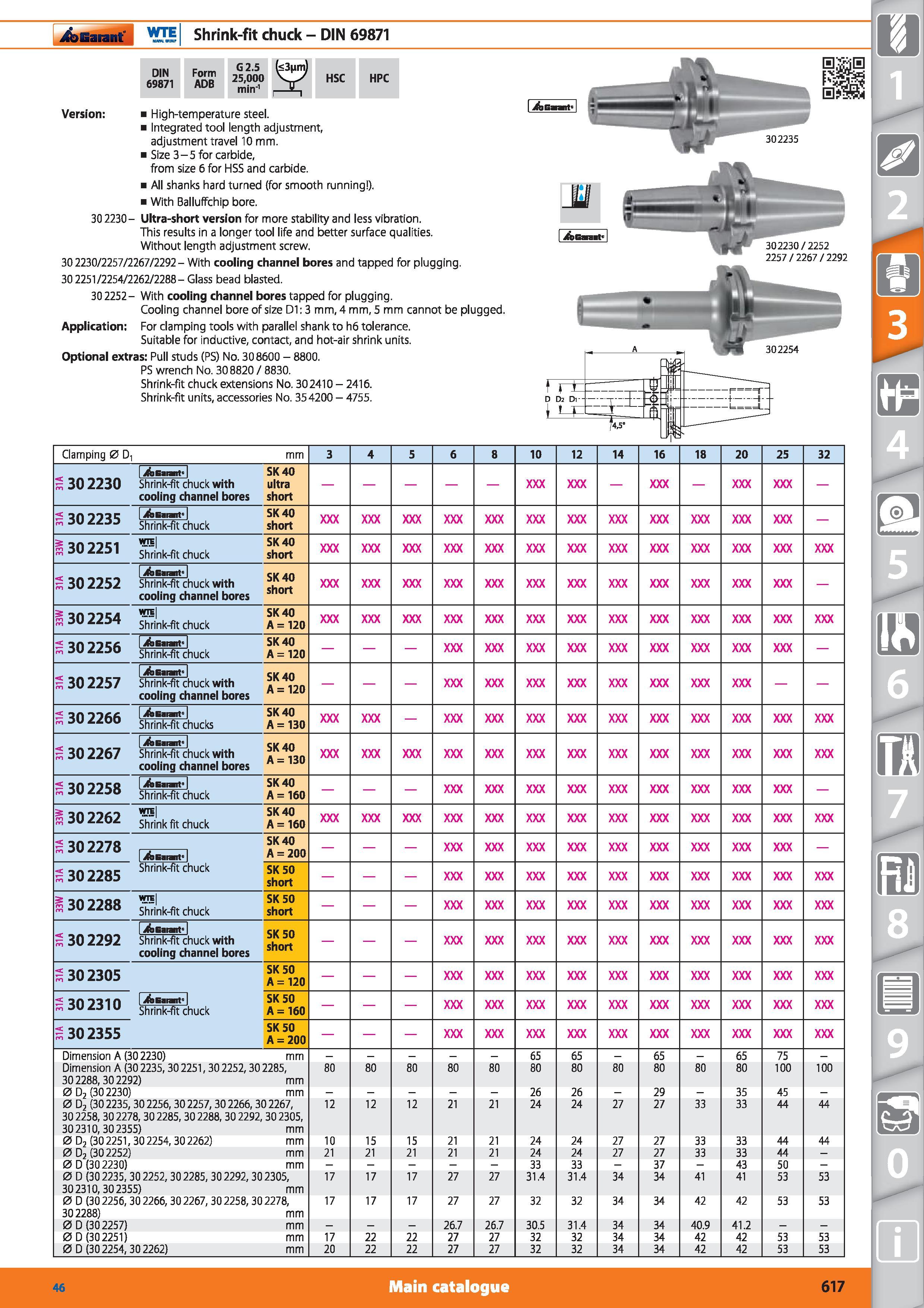

Garant WTE Shrink-fit chuck - DIN 69871 DIN 69871 Form ADB G 2.5 25,000 min'1 HSC HPC Version High-temperature steel. Integrated tool length adjustment, adjustment travel 10 mm. Size 3-5 for carbide, from size 6 for HSS and carbide. All shanks hard turned (for smooth running ). With Balluffchip bore. 30 2230- Ultra-short version for more stability and less vibration. This results in a longer tool life and better surface qualities. Without length adjustment screw. 30 2230/2257/2267/2292 - With cooling channel bores and tapped for plugging. 302251/2254/2262/2288- Glass bead blasted. 302252- With cooling channel bores tapped for plugging. Cooling channel bore of size D1:3 mm, 4 mm, 5 mm cannot be plugged. Application For clamping tools with parallel shank to h6 tolerance. Suitable for inductive, contact, and hot-air shrink units. Optional extras Pull studs (PS) No. 308600 - 8800. PS wrench No. 30 8820 / 8830. Shrink-fit chuck extensions No. 302410 - 2416. Shrink-fit units, accessories No. 354200 - 4755. 302230/2252 2257/2267/2292 Clamping 0 D, mm 3 4 5 6 8 10 12 14 16 18 20 25 32 302230 1 jfeEamt 1 Shrink-fit chuck with cooling channel bores SK40 ultra short 302235 jfeEaiant" Shrink-fit chuck SK40 short s 30 2251 wrc Shrink-fit chuck SK40 short 302252 1 j&Eaiants I Shrink-fit chuck with cooling channel bores SK40 short s 30 2254 wrc Shrink-fit chuck SK40 A 120 302256 1 jfeEamt I Shrink-fit chuck SK40 A 120 302257 1 jfeEamrt I Shrink-fit chuck with cooling channel bores SK40 A 120 302266 j&Eaiants Shrink-fit chucks SK40 A 130 302267 J&Eaiants Shrink-fit chuck with cooling channel bores SK40 A 130 302258 i&Eamt Shrink-fit chuck SK40 A 160 1302262 WTE Shrink fit chuck SK40 A 160 302278 jfeEaiant SK40 A 200 302285 Shrink-fit chuck SK 50 short i 30 2288 wte Shrink-fit chuck SK 50 short 302292 1 jfeEamt I Shrink-fit chuck with cooling channel bores SK 50 short 302305 SK 50 A 120 302310 j&Eaiants Shrink-fit chuck SK 50 A 160 302355 SK 50 A 200 Dimension A (30 2230) mm - 65 65 - 65 - 65 75 - Dimension A (30 2235,30 2251,30 2252,30 2285, 302288,302292) mm 80 80 80 80 80 80 80 80 80 80 80 100 100 0 D2 (30 2230) mm - 26 26 - 29 - 35 45 - 0 D2 (302235, 302256,302257,302266,302267, 30 2258, 30 2278,30 2285,30 2288, 30 2292,30 2305, 302310,302355) mm 12 12 12 21 21 24 24 27 27 33 33 44 44 0 D2 (30 2251, 30 2254,30 2262) mm 10 15 15 21 21 24 24 27 27 33 33 44 44 0D2 (302252) mm 21 21 21 21 21 24 24 27 27 33 33 44 - 0D (302230) mm - 33 33 - 37 - 43 50 - 0 D (30 2235,30 2252,30 2285,30 2292,30 2305, 302310,302355) mm 17 17 17 27 27 31.4 31.4 34 34 41 41 53 53 0 D (302256,302266,302267,302258,302278, 302288) mm 17 17 17 27 27 32 32 34 34 42 42 53 53 0D (302257) mm - 26.7 26.7 30.5 31.4 34 34 40.9 41.2 0D (302251) mm 17 22 22 27 27 32 32 34 34 42 42 53 53 0D (30 2254,30 2262) mm 20 22 22 27 27 32 32 34 34 42 42 53 53 Main catalogue Hoffmann Group 46 617
