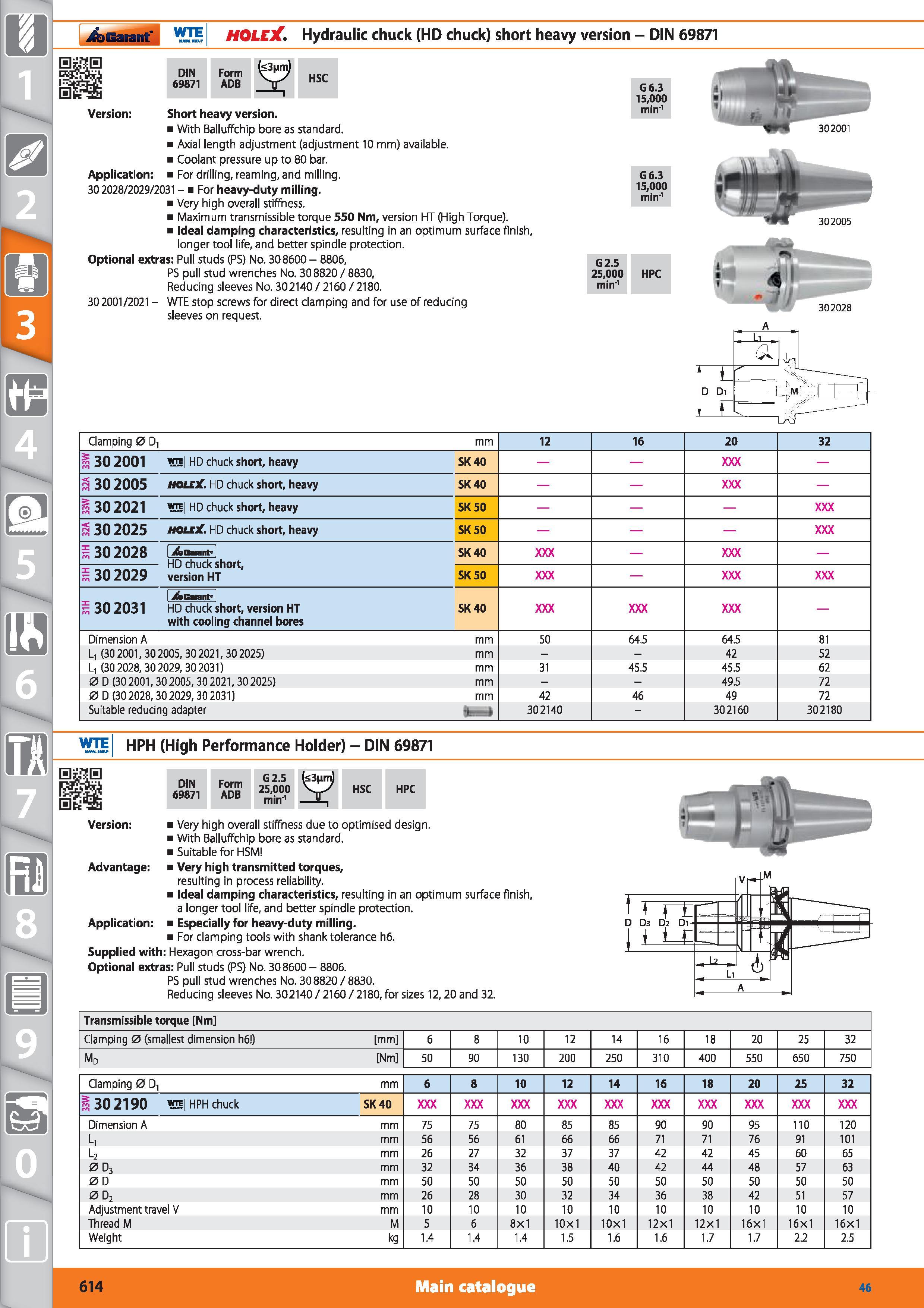

HOLEX Hydraulic chuck (HD chuck) short heavy version - DIN 69871 Version Short heavy version. With Balluffchip bore as standard. Axial length adjustment (adjustment 10 mm) available. Coolant pressure up to 80 bar. Application For drilling, reaming, and milling. 30 2028/2029/2031 - For heavy-duty milling. Very high overall stiffness. Maximum transmissible torque 550 Nm, version HT (High Torque). Ideal damping characteristics, resulting in an optimum surface finish, longer tool life, and better spindle protection. Optional extras Pull studs (PS) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830, Reducing sleeves No. 302140 / 2160 / 2180. 30 2001/2021 - WTE stop screws for direct clamping and for use of reducing sleeves on request. G6.3 15,000 min'1 G6.3 15,000 min'1 G2.5 25,000 min'1 HPC 302001 Clamping 0 D, mm 12 16 20 32 H 30 2001 'S31 HD chuck short, heavy SK40 a 30 2005 HOLEX HD chuck short, heavy SK40 H 30 2021 'EE HD chuck short, heavy SK 50 a 30 2025 HOLEX HD chuck short, heavy SK 50 S 30 2028 IAg - SK40 nU LllULK I, ss 30 2029 version HT SK 50 I /b Garant s 30 2031 HD chuck short, version HT with cooling channel bores SK40 Dimension A mm 50 64.5 64.5 81 L, (30 2001,30 2005,30 2021,30 2025) mm 42 52 L, (30 2028,302029,302031) mm 31 45.5 45.5 62 0 D (30 2001,30 2005,30 2021,30 2025) mm 49.5 72 0D (302028,302029,302031) mm 42 46 49 72 Suitable reducing adapter fe 4 302140 - 302160 302180 WTE HPH (High Performance Holder) - DIN 69871 DIN 69871 Form ADB G2.5 25,000 min'1 HSC HPC Version Very high overall stiffness due to optimised design. With Balluffchip bore as standard. Suitable for HSM Advantage Very high transmitted torques, resulting in process reliability. Ideal damping characteristics, resulting in an optimum surface finish, a longer tool life, and better spindle protection. Application Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Supplied with Hexagon cross-bar wrench. Optional extras Pull studs (PS) No. 308600 - 8806. PS pull stud wrenches No. 308820 / 8830. Reducing sleeves No. 302140/2160/2180, for sizes 12,20 and 32. Transmissible torque Nm Clamping 0 (smallest dimension h6l) mm 6 8 10 12 14 16 18 20 25 32 Md Nm 50 90 130 200 250 310 400 550 650 750 Clamping 0 D, mm 6 8 10 12 14 16 18 20 25 32 1302190
