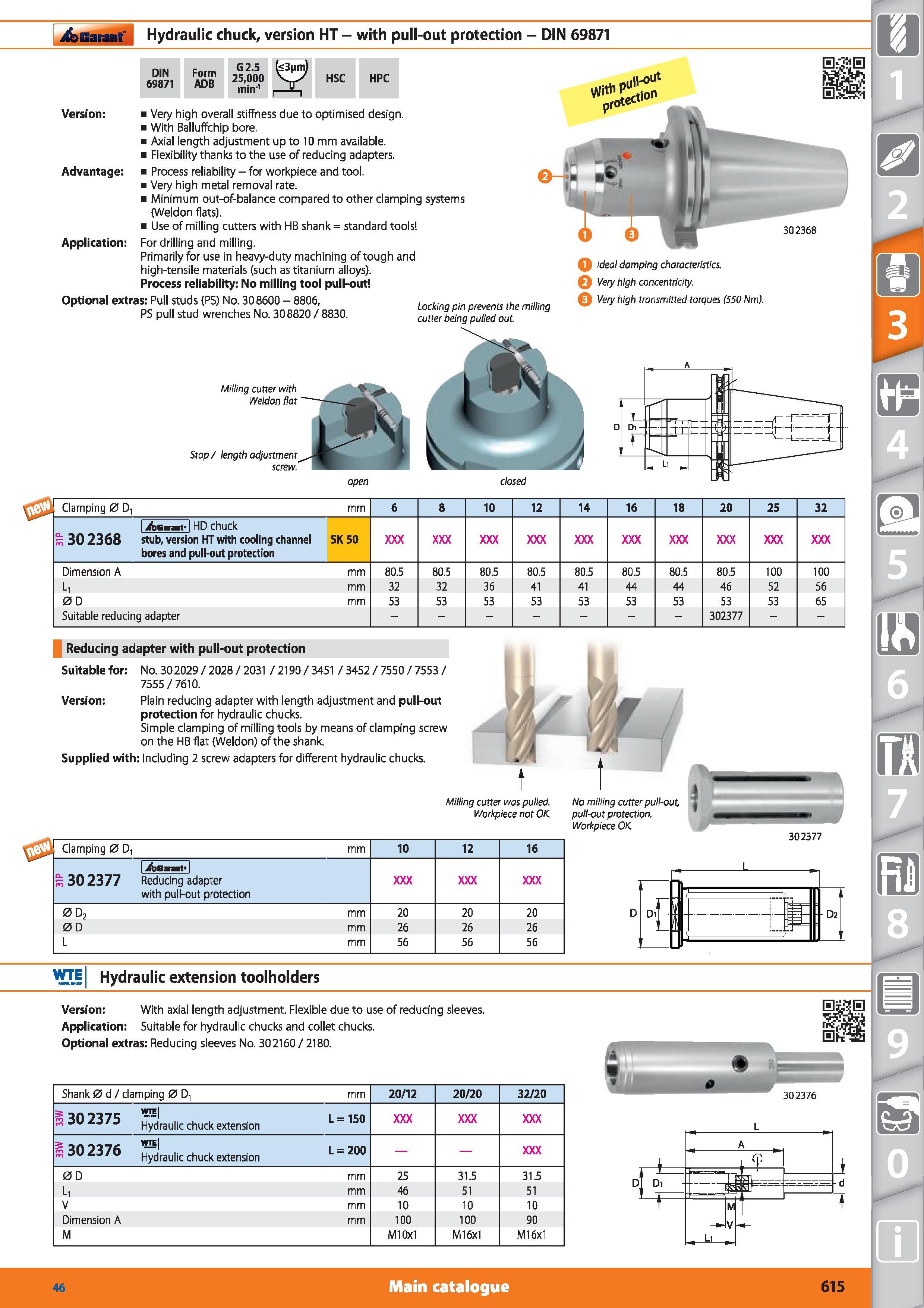

Garant Hydraulic chuck, version HT - with pull-out protection - DIN 69871 DIN 69871 Form ADB G 2.5 25,000 min'1 HSC HPC Advantage Application Version Very high overall stiffness due to optimised design. With Balluffchip bore. Axial length adjustment up to 10 mm available. Flexibility thanks to the use of reducing adapters. Process reliability - for workpiece and tool. Very high metal removal rate. Minimum out-of-balance compared to other clamping systems (Weldon flats). Use of milling cutters with HB shank standard tools For drilling and milling. Primarily for use in heavy-duty machining of tough and high-tensile materials (such as titanium alloys). Process reliability No milling tool pull-out Optional extras Pull studs (PS) Na 30 8600- 8806 Locking pin prevents the milling PS pull stud wrenches No. 30 8820 / 8830. cutter being out Milling cutter with Weldon fiat Q Ideal damping characteristics. Very high concentricity. Q Very high transmitted torques (550 Nm). Stop/ length adjustment screw. open closed Clamping 0 D, mm 6 8 10 12 14 16 18 20 25 32 s 30 2368 1 jtbcnnt' 1 HD chuck stub, version HT with cooling channel bores and pull-out protection SK 50 Dimension A mm 80.5 80.5 80.5 80.5 80.5 80.5 80.5 80.5 100 100 L, mm 32 32 36 41 41 44 44 46 52 56 0 D mm 53 53 53 53 53 53 53 53 53 65 Suitable reducing adapter - 302377 Reducing adapter with pull-out protection Suitable for No. 302029 / 2028 / 2031 / 2190 / 3451 / 3452 / 7550 / 7553 / 7555 / 7610. Version Plain reducing adapter with length adjustment and pull-out protection for hydraulic chucks. Simple clamping of milling tools by means of clamping screw on the HB flat (Weldon) of the shank Supplied with Including 2 screw adapters for different hydraulic chucks. Milling cutter was pulled. Workpiece not OK Clamping 0 D, mm 10 12 16 I jfbGsant s 30 2377 Reducing adapter with pull-out protection 0D2 mm 20 20 20 0 D mm 26 26 26 L mm 56 56 56 D2 WTE Hydraulic extension toolholders Version With axial length adjustment. Flexible due to use of reducing sleeves. Application Suitable for hydraulic chucks and collet chucks. Optional extras Reducing sleeves No. 302160 / 2180. Shank 0 d / clamping 0 D, mm 20/12 20/20 32/20 30 2375 WTE Hydraulic chuck extension L 150 1302376 wte Hydraulic chuck extension fN II 1 0 D mm 25 31.5 31.5 L, mm 46 51 51 V mm 10 10 10 Dimension A mm 100 100 90 M M10x1 M16x1 Ml 6x1 302376 Main catalogue Hoffmann Group 46 615
