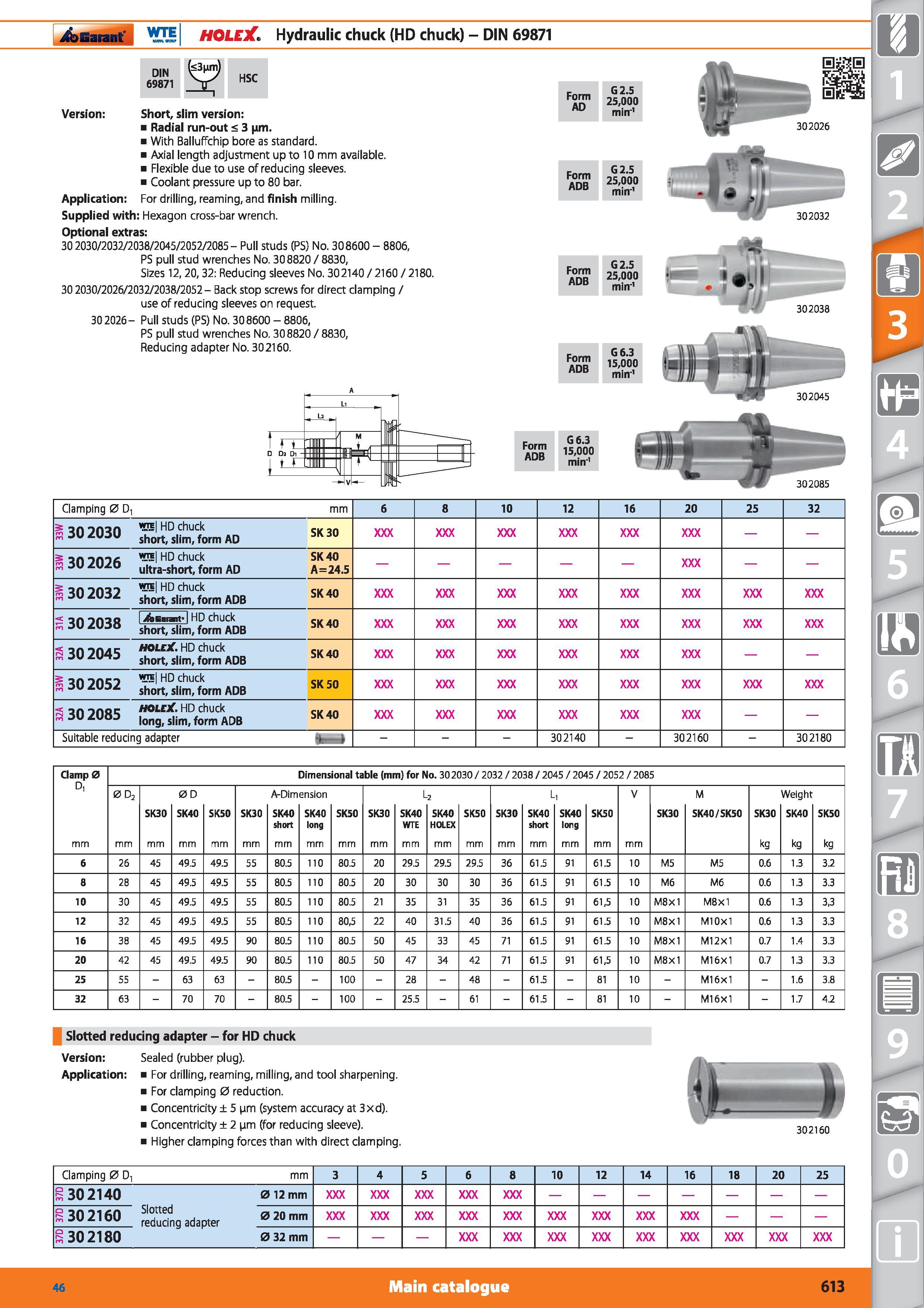

Garant WTE HOLEX Hydraulic chuck (HD chuck) - DIN DIN 69871 HSC Version Short, slim version Radial run-out < 3 im. With Balluffchip bore as standard. Axial length adjustment up to 10 mm available. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application For drilling, reaming, and finish milling. Supplied with Hexagon cross-bar wrench. Optional extras 30 2030/2032/2038/2045/2052/2085- Pull studs (PS) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830, Sizes 12,20,32 Reducing sleeves No. 302140 / 2160 / 2180. 30 2030/2026/2032/2038/2052 - Back stop screws for direct clamping / use of reducing sleeves on request. 302026- Pull studs (PS) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830, Reducing adapter No. 302160. 302026 302032 302038 302045 302085 69871 Clamping 0 D, mm 6 8 10 12 16 20 25 32 i 30 2030 S HD chuck short, slim, form AD SK30 130 2026 H HD chuck ultra-short, form AD SK40 A=24.5 i 30 2032 wffi HD chuck short, slim, form ADB SK40 302038 lAEamfl HD chuck short, slim, form ADB SK40 30 2045 HOLEX HD chuck short, slim, form ADB SK40 i 30 2052 H HD chuck short, slim, form ADB SK50 302085 HOLEX HD chuck long, slim, form ADB SK40 Suitable reducing adapter MB - 302140 - 302160 302180 Clamp 0 D, Dimensional table (mm) for No. 302030 / 2032 / 2038 / 2045 / 2045 / 2052 / 2085 0D2 0 D A-Dimension 2 L, V M Weight SK30 5K40 SK50 SK30 5K40 short SK40 long SK50 SK30 SK40 WTE SK40 HOLEX SK50 SK30 SK40 short SK40 long SK50 SK30 SK40/SK50 SK30 SK40 5K50 mm kg kg kg 6 26 45 49.5 49.5 55 80.5 110 80.5 20 29.5 29.5 29.5 36 61.5 91 61.5 10 M5 M5 0.6 1.3 3.2 8 28 45 49.5 49.5 55 80.5 110 80.5 20 30 30 30 36 61.5 91 61.5 10 M6 M6 0.6 1.3 3.3 10 30 45 49.5 49.5 55 80.5 110 80.5 21 35 31 35 36 61.5 91 61,5 10 M8X1 M8X1 0.6 1.3 3,3 12 32 45 49.5 49.5 55 80.5 110 80,5 22 40 31.5 40 36 61.5 91 61.5 10 M8X1 M10X1 0.6 1.3 3.3 16 38 45 49.5 49.5 90 80.5 110 80.5 50 45 33 45 71 61.5 91 61.5 10 M8X1 M12X1 0.7 1.4 3.3 20 42 45 49.5 49.5 90 80.5 110 80.5 50 47 34 42 71 61.5 91 61,5 10 M8X1 M16X1 0.7 1.3 3.3 25 55 - 63 63 - 80.5 - 100 - 28 - 48 - 61.5 - 81 10 - M16X1 - 1.6 3.8 32 63 - 70 70 - 80.5 - 100 - 25.5 - 61 - 61.5 - 81 10 - M16X1 - 1.7 4.2 Slotted reducing adapter - for HD chuck Version Sealed (rubber plug). Application For drilling, reaming, milling, and tool sharpening. For clamping 0 reduction. Concentricity ± 5 nm (system accuracy at 3xd). -J i Concentricity ± 2 (jm (for reducing sleeve). 302160 i Higher clamping forces than with direct clamping. Clamping 0 D, mm 3 4 5 6 8 10 12 14 16 18 20 25 ft 302140 Slotted reducing adapter 0 12 mm ft 302160 0 20 mm ft 302180 0 32 mm Main catalogue Hoffmann Group 46 613
