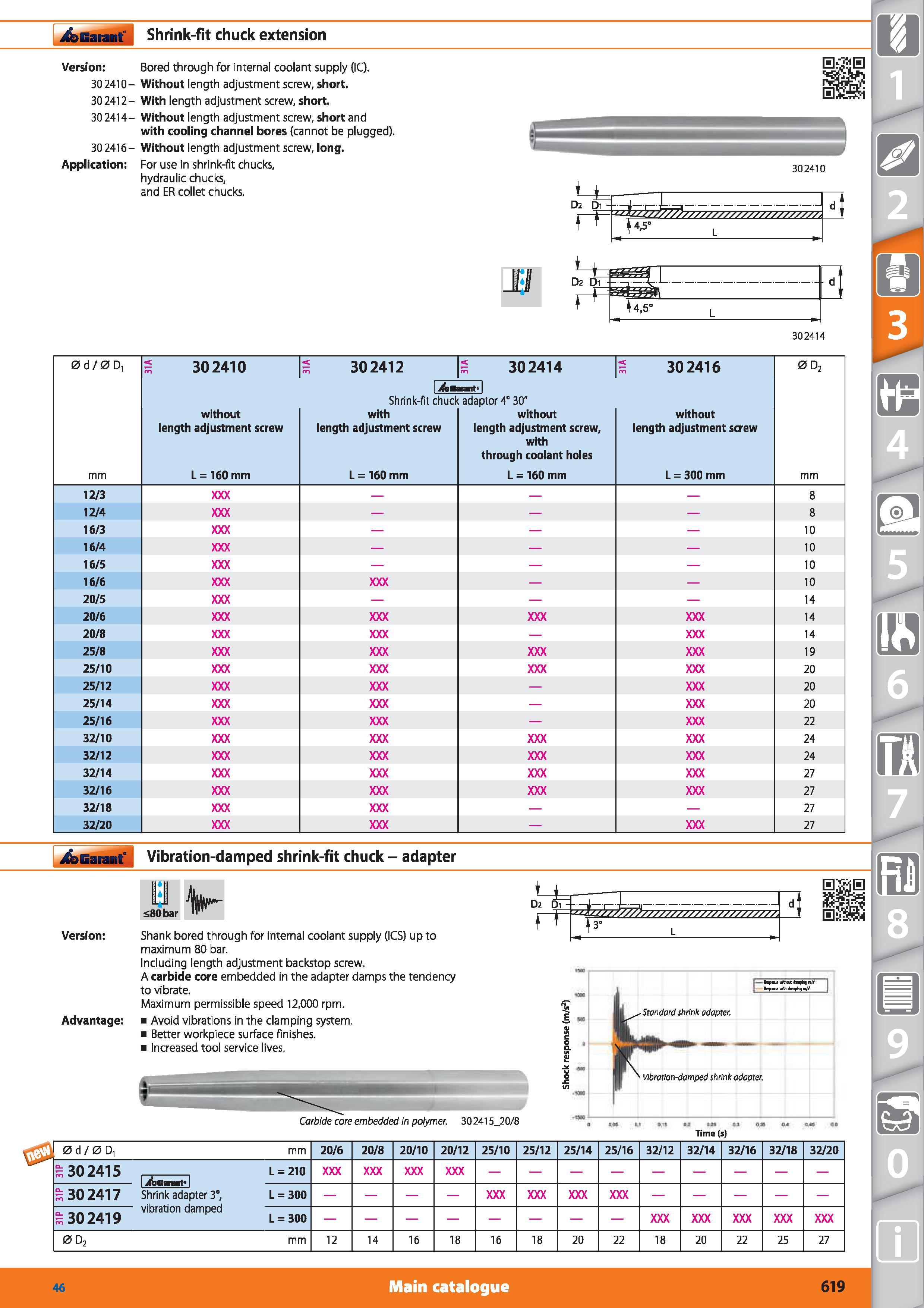

Garant Shrink-fit chuck extension Version Bored through for internal coolant supply (IC). 30 2410- Without length adjustment screw, short. 30 2412- With length adjustment screw, short. 30 2414- Without length adjustment screw, short and with cooling channel bores (cannot be plugged). 30 2416- Without length adjustment screw, long. Application For use in shrink-fit chucks, hydraulic chucks, and ER collet chucks. 302410 D2 Di - j ii d i , f4.5- L T d , r - f 4,5° L 302414 0 d / 0 D, mm t 302410 without length adjustment screw L 160 mm H 302412 S 302414 S 302416 without length adjustment screw L 300 mm 0D; mm I Shrink-fit chuck with length adjustment screw L 160 mm rant11 adaptor 4° 30" without length adjustment screw, with through coolant holes L 160 mm 12/3 8 12/4 8 16/3 10 16/4 10 16/5 10 16/6 10 20/5 14 20/6 14 20/8 14 25/8 19 25/10 20 25/12 20 25/14 20 25/16 22 32/10 24 32/12 24 32/14 27 32/16 27 32/18 27 32/20 27 Garant Vibration-damped shrink-fit chuck - adapter Version Advantage Shank bored through for internal coolant supply (ICS) up to maximum 80 bar. Including length adjustment backstop screw. A carbide core embedded in the adapter damps the tendency to vibrate. Maximum permissible speed 12,000 rpm. Avoid vibrations in the clamping system. Better workpiece surface finishes. Increased tool service lives. D2 Di rr Carbide core embedded in polymer. 302415_20/8 Time (s) 0 d / 0 D, mm 20/6 20/8 20/10 20/12 25/10 25/12 25/14 25/16 32/12 32/14 32/16 32/18 32/20 s 30 2415 Garant I Shrink adapter 3°, vibration damped o fN II 1 H 30 2417 L 300 s 30 2419 L 300 0D2 mm 12 16 18 16 18 20 22 18 20 22 25 27 m Main catalogue Hoffmann Group 46 619
