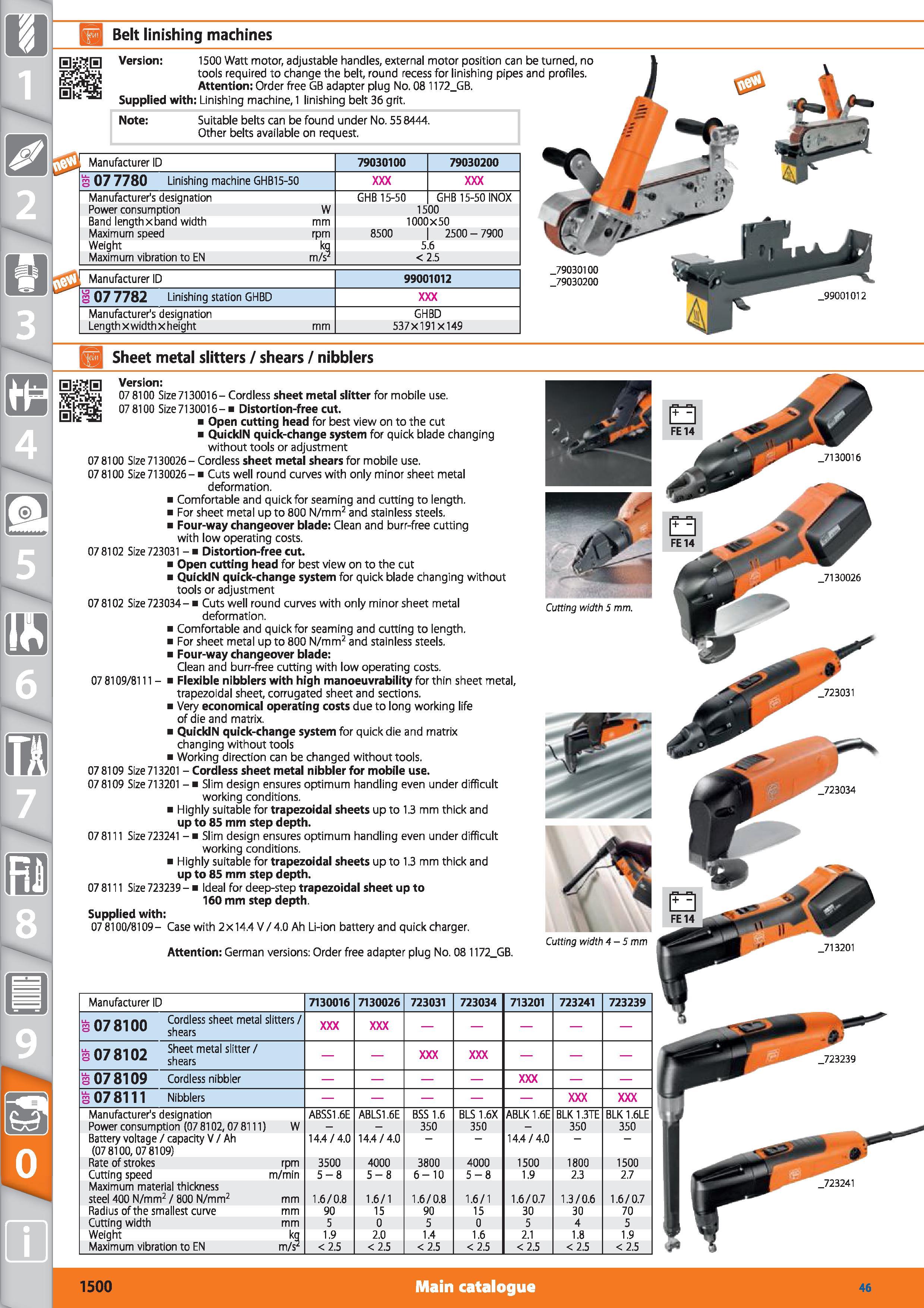

H Belt linishing machines Version 1500 Watt motor, adjustable handles, external motor position can be turned, no tools required to change the belt, round recess for linishing pipes and profiles. Attention Order free GB adapter plug No. 08 1172_GB. Supplied with Linishing machine, 1 linishing belt 36 grit. Note Suitable belts can be found under No. 558444. Other belts available on request. Manufacturer ID j 07 7780 Linishing machine GHB15-50 Manufacturer's designation Power consumption Band length x band width Maximum speed Weight Maximum vibration to EN W mm rpm k<3 m/s Manufacturer ID i 07 7782 Linishing station GHBD Manufacturer's designation Length xwidthx height 79030100 79030200 GHB 15-50 GHB 15-50 INOX 1500 1000x50 8500 2500 - 7900 5.6 <2.5 99001012 GHBD 537X191X149 _79030100 _79030200 .99001012 Sheet metal slitters / shears / nibblers i Version 07 8100 Size 7130016- Cordless sheet metal slitter for mobile use. 07 8100 Size 7130016 - Distortion-free cut. Open cutting head for best view on to the cut QuickIN quick-change system for quick blade changing without tools or adjustment 07 8100 Size 7130026 - Cordless sheet metal shears for mobile use. 078100 Size 7130026- Cuts well round curves with only minor sheet metal deformation. Comfortable and quick for seaming and cutting to length. For sheet metal up to 800 N/mm2 and stainless steels. Four-way changeover blade Clean and burr-free cutting with low operating costs. 07 8102 Size 723031 - Distortion-free cut. Open cutting head for best view on to the cut QuickIN quick-change system for quick blade changing without tools or adjustment 07 8102 Size 723034- Cuts well round curves with only minor sheet metal deformation. Comfortable and quick for seaming and cutting to length. For sheet metal up to 800 N/mm2 and stainless steels. Four-way changeover blade Clean and burr-free cutting with low operating costs. 07 8109/8111 - Flexible nibblers with high manoeuvrability for thin sheet metal, trapezoidal sheet, corrugated sheet and sections. Very economical operating costs due to long working life of die and matrix. QuickIN quick-change system for quick die and matrix changing without tools Working direction can be changed without tools. 07 8109 Size 713201 - Cordless sheet metal nibbler for mobile use. 078109 Size 713201 - Slim design ensures optimum handling even under difficult working conditions. Highly suitable for trapezoidal sheets up to 1.3 mm thick and up to 85 mm step depth. 07 8111 Size 723241 - Slim design ensures optimum handling even under difficult working conditions. Highly suitable for trapezoidal sheets up to 1.3 mm thick and up to 85 mm step depth. 07 8111 Size 723239 - Ideal for deep-step trapezoidal sheet up to 160 mm step depth. Supplied with 07 8100/8109- Case with 2X14.4V/4.0 Ah Li-ion battery and quick charger. Attention German versions Order free adapter plug No. 08 1172_GB. Manufacturer ID 7130016 7130026 723031 723034 713201 723241 723239 u-. n. Cordless sheet metal slitters / shears m oi m Sheet metal slitter / o 07 8102 shears S 07 8109 Cordless nibbler S 07 8111 Nibblers Manufacturer's designation ABSS1.6E ABLS1.6E BSS 1.6 BLS 1.6X ABLK1.6E BLK1.3TE BLK1.6LE Power consumption (07 8102,07 8111' W 350 350 - 350 350 Battery voltage / capacity V/Ah (078100,078109) 14.4/4.0 14.4/4.0 14.4/4.0 Rate of strokes rpm 3500 4000 3800 4000 1500 1800 1500 Cutting speed m/min 5-8 5-8 6-10 5-8 1.9 2.3 2.7 Maximum material thickness steel 400 N/mm2 / 800 N/mm2 mm 1.6/0.8 1.6/1 1.6/0.8 1.6/1 1.6/0.7 1.3/0.6 1.6/0.7 Radius of the smallest cun/e mm 90 15 90 15 30 30 70 Cutting width mm 5 0 5 0 5 4 5 Weight kq m/s2 1.9 2.0 1.4 1.6 2.1 1.8 1.9 Maximum vibration to EN <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 1500 Main catalogue Hoffmann Group 46 7130016 7130026 723031 723034 723239 723241
