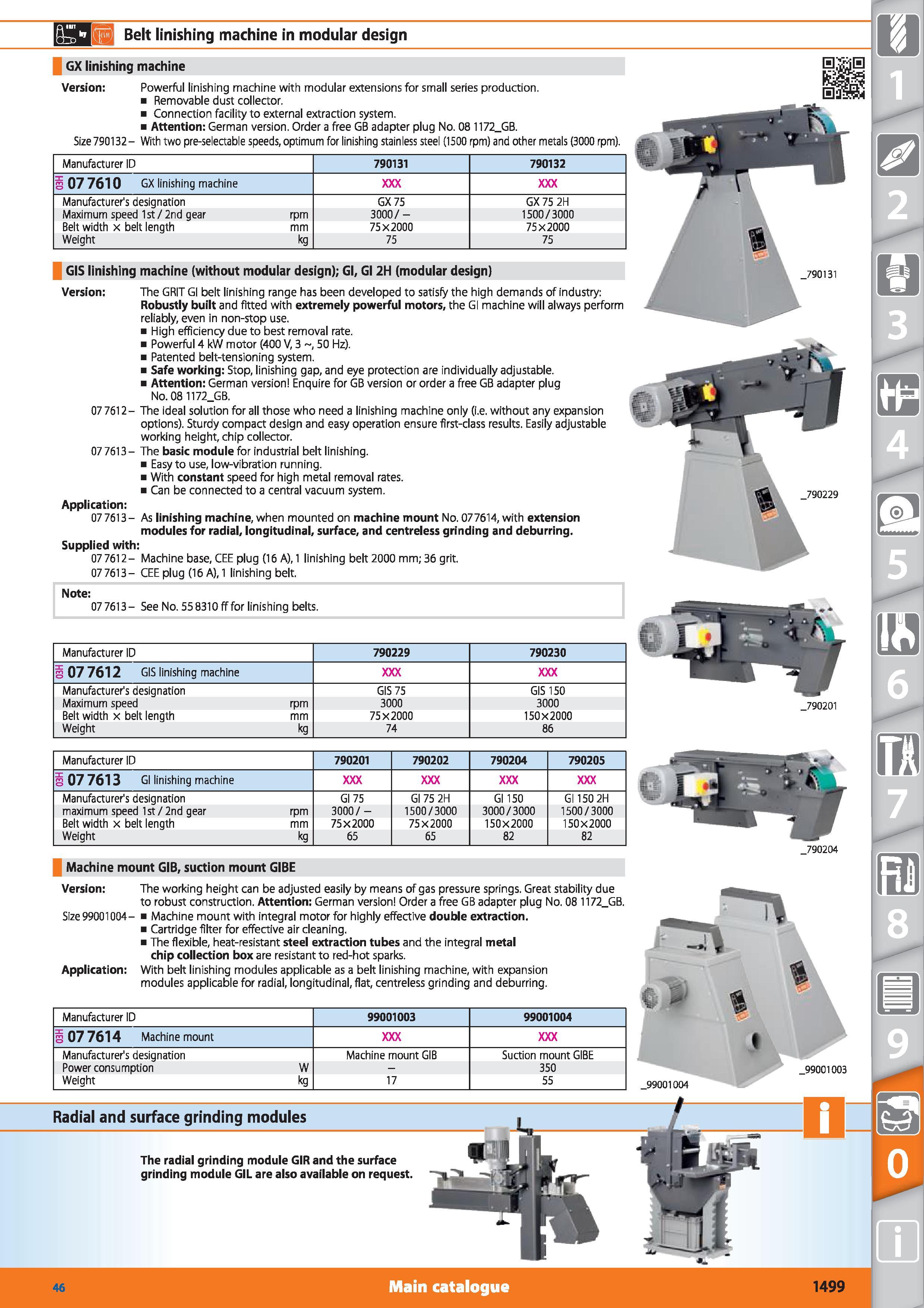

HHQ Belt linishing machine in modular design GX linishing machine Version Powerful linishing machine with modular extensions for small series production. Removable dust collector. Connection facility to external extraction system. Attention German version. Order a free GB adapter plug No. 08 1172_GB. Size 790132- With two pre-selectable speeds, optimum for linishing stainless steel (1500 rpm) and other metals (3000 rpm). Manufacturer ID 790131 790132 077610 GX linishing machine Manufacturer's designation GX 75 GX 75 2H Maximum speed 1st/2nd gear rpm 3000/ - 1500/3000 Belt width x belt length mm 75X2000 75X2000 Weight kg 75 75 GIS linishing machine (without modular design); Gl, Gl 2H (modular design) Version The GRIT Gl belt linishing range has been developed to satisfy the high demands of industry Robustly built and fitted with extremely powerful motors, the Gl machine will always perform reliably, even in non-stop use. High efficiency due to best removal rate. Powerful 4 kW motor (400 V, 3 , 50 Hz). Patented belt-tensioning system. Safe working Stop, linishing gap, and eye protection are individually adjustable. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. 07 7612- The ideal solution for all those who need a linishing machine only (i.e. without any expansion options). Sturdy compact design and easy operation ensure first-class results. Easily adjustable working height, chip collector. 07 7613- The basic module for industrial belt linishing. Easy to use, low-vibration running. With constant speed for high metal removal rates. Can be connected to a central vacuum system. Application 07 7613- As linishing machine, when mounted on machine mount No. 077614, with extension modules for radial, longitudinal, surface, and centreless grinding and deburring. Supplied with 07 7612- Machine base, CEE plug (16 A), 1 linishing belt 2000 mm; 36 grit. 07 7613- CEE plug (16 A), 1 linishing belt. Note 07 7613- See No. 55 8310 ff for linishing belts. Manufacturer ID 790229 790230 S 07 7612 GIS linishing machine Manufacturer's designation GIS 75 GIS 150 Maximum speed rpm 3000 3000 Belt width x belt length mm 75X2000 150X2000 Weight kg 74 86 Manufacturer ID 790201 790202 790204 790205 S 07 7613 Gl linishing machine Manufacturer's designation Gl 75 Gl 75 2H Gl 150 Gl150 2H maximum speed 1st/2nd gear rpm 3000/- 1500/3000 3000/3000 1500/3000 Belt width x belt length mm 75X2000 75X2000 150X2000 150X2000 Weight kg 65 65 82 82 Machine mount GIB, suction mount GIBE Version The working height can be adjusted easily by means of gas pressure springs. Great stability due to robust construction. Attention German version Order a free GB adapter plug No. 08 1172_GB. Size 99001004- Machine mount with integral motor for highly effective double extraction. Cartridge filter for effective air cleaning. The flexible, heat-resistant steel extraction tubes and the integral metal chip collection box are resistant to red-hot sparks. Application With belt linishing modules applicable as a belt linishing machine, with expansion modules applicable for radial, longitudinal, flat, centreless grinding and deburring. Manufacturer ID 99001003 99001004 s 07 7614 Machine mount Manufacturer's designation Machine mount GIB Suction mount GIBE Power consumption W - 350 Weight kg 17 55 Radial and surface grinding modules The radial grinding module GIR and the surface grinding module GIL are also available on request. 99001003 _99001004 46 Main catalogue
