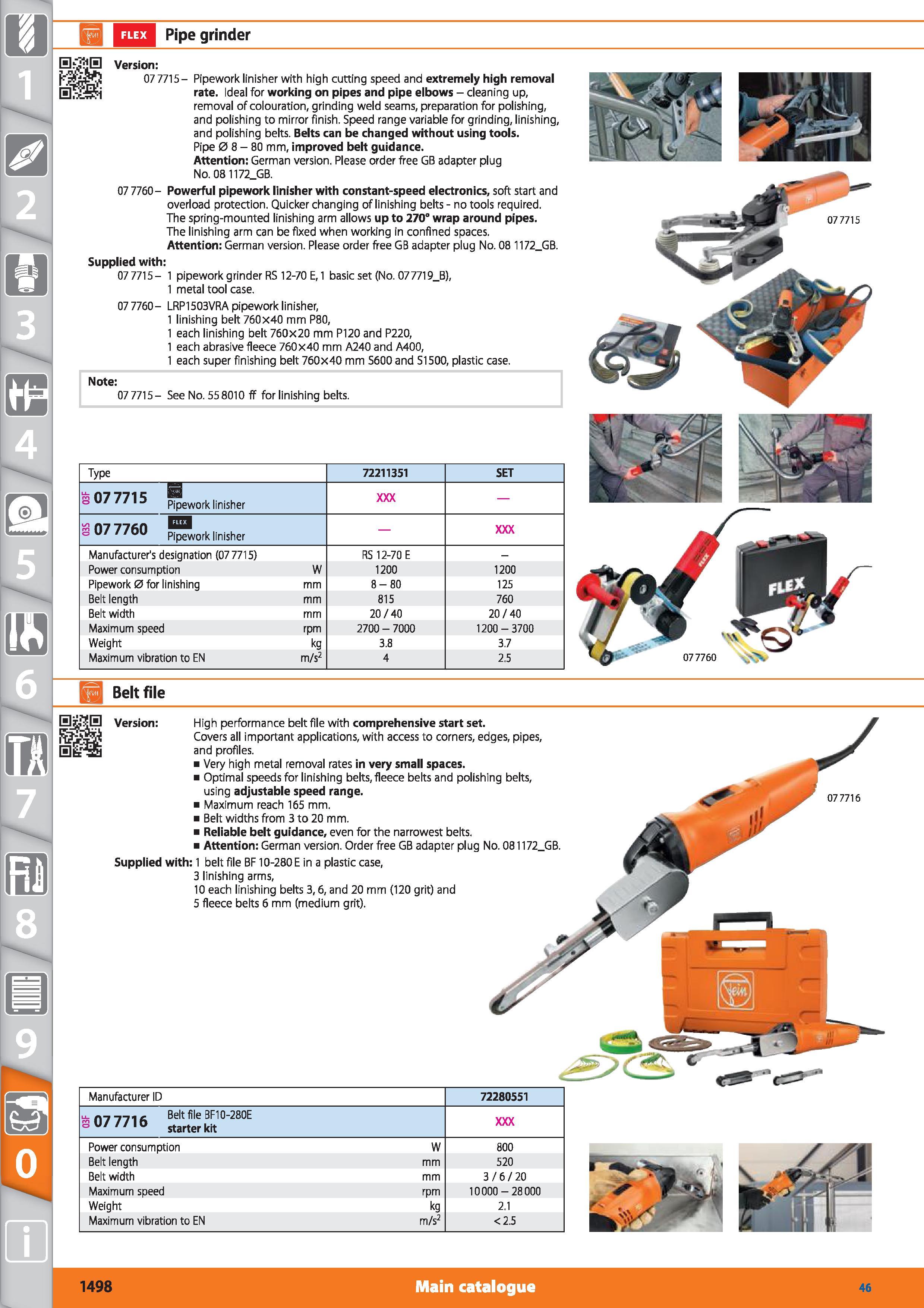

FLEX Pipe grinder Version 07 7715- Pipework linisher with high cutting speed and extremely high removal rate. Ideal for working on pipes and pipe elbows - cleaning up, removal of colouration, grinding weld seams, preparation for polishing, and polishing to mirror finish. Speed range variable for grinding, linishing, and polishing belts. Belts can be changed without using tools. Pipe 0 8 - 80 mm, improved belt guidance. Attention German version. Please order free GB adapter plug No. 081172_GB. 07 7760- Powerful pipework linisher with constant-speed electronics, soft start and overload protection. Quicker changing of linishing belts - no tools required. The spring-mounted linishing arm allows up to 270° wrap around pipes. The linishing arm can be fixed when working in confined spaces. Attention German version. Please order free GB adapter plug No. 08 1172_GB. Supplied with 077715- 1 pipework grinder RS 12-70 E, 1 basic set (No. 07 7719_B), 1 metal tool case. 07 7760- LRP1503VRA pipework linisher, 1 linishing belt 760 x40 mm P80, 1 each linishing belt 760x 20 mm P120 and P220, 1 each abrasive fleece 760 x40 mm A240 and A400, 1 each super finishing belt 760x40 mm S600 and SI 500, plastic case. 0 0 S. Note 077715- See No. 558010 ff for linishing belts. Type i 07 7715 Pipework linisher 72211351 SET 1077760 Pipework linisher Manufacturer's designation (077715) RS 12-70 E Power consumption W 1200 Pipework 0 for linishing mm 8-80 Belt length mm 815 Belt width mm 20/40 Maximum speed rpm 2700-7000 Weight kg 3.8 Maximum vibration to EN m/s2 4 1200 125 760 20/40 1200 - 3700 3.7 2.5 Belt file Manufacturer ID 72280551 .mn1 Belt file BF10-280E 1077716 starter kit Power consumption Belt length Belt width Maximum speed Weight Maximum vibration to EN 800 520 3/6/20 10000-28000 2.1 Version Supplied High performance belt file with comprehensive start set. Covers all important applications, with access to corners, edges, pipes, and profiles. Very high metal removal rates in very small spaces. Optimal speeds for linishing belts, fleece belts and polishing belts, using adjustable speed range. Maximum reach 165 mm. Belt widths from 3 to 20 mm. Reliable belt guidance, even for the narrowest belts. Attention German version. Order free GB adapter plug No. 081172_GB. with 1 belt file BF10-280 E in a plastic case, 3 linishing arms, 10 each linishing belts 3,6, and 20 mm (120 grit) and 5 fleece belts 6 mm (medium grit). 1498 Main catalogue Hoffmann Group 46
