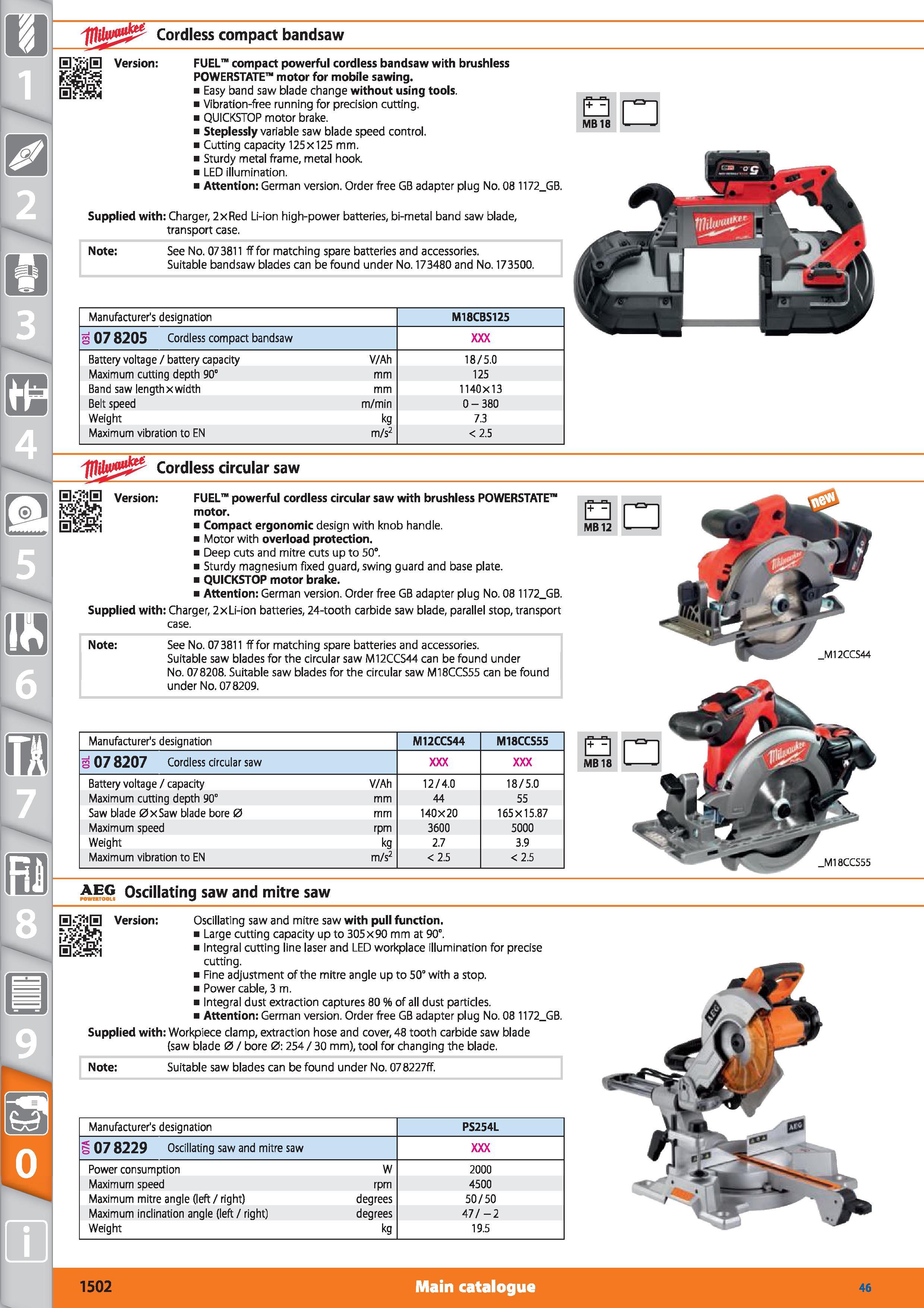

1502 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1502

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1502 1502 ENG Lab2u

Cordless compact bandsaw SSjS Version FUEL compact powerful cordless bandsaw with brushless FiitoSS POWERSTATE motor for mobile sawing. ijpijjj Easy band saw blade change without using tools. Vibration-free running for precision cutting. QUICKSTOP motor brake. Steplessly variable saw blade speed control. Cutting capacity 125x125 mm. Sturdy metal frame, metal hook. LED illumination. Attention German version. Order free GB adapter plug No. 08 1172_GB. Supplied with Charger, 2xRed Li-ion high-power batteries, bi-metal band saw blade, transport case. I Note See No. 073811 ff for matching spare batteries and accessories. Suitable bandsaw blades can be found under No. 173480 and No. 173500. Manufacturer's designation M18CBS125 8 07 8205 Cordless compact bandsaw Battery voltage / battery capacity V/Ah 18/5.0 Maximum cutting depth 90° mm 125 Band saw lengthxwidth mm 1140x13 Belt speed m/min 0-380 Weight kg 7.3 Maximum vibration to EN m/s2 <2.5 Cordless circular saw Si-y'ijS Version FUEL powerful cordless circular saw with brushless POWERSTATE motor. Compact ergonomic design with knob handle. Motor with overload protection. Deep cuts and mitre cuts up to 50°. Sturdy magnesium fixed guard, swing guard and base plate. QUICKSTOP motor brake. Attention German version. Order free GB adapter plug No. 08 1172_GB. Supplied with Charger, 2xLi-ion batteries, 24-tooth carbide saw blade, parallel stop, transport case. Note See No. 073811 ff for matching spare batteries and accessories. Suitable saw blades for the circular saw M12CCS44 can be found under No. 078208. Suitable saw blades for the circular saw M18CCS55 can be found under No. 078209. Manufacturer's designation M12CCS44 M18CCS55 S 07 8207 Cordless circular saw Battery voltage / capacity V/Ah 12/4.0 18/5.0 Maximum cutting depth 90° mm 44 55 Saw blade 0xSaw blade bore 0 mm 140X20 165X15.87 Maximum speed rpm 3600 5000 Weight kg 2.7 3.9 Maximum vibration to EN m/s2 <2.5 <2.5 AEG Oscillating saw and mitre saw Version Oscillating saw and mitre saw with pull function. '-ar9e cuttin9 capacity up to 305 x 90 mm at 90°. lnte9ral cutting line laser and LED workplace illumination for precise cutting. Fine adjustment of the mitre angle up to 50° with a stop. Power cable, 3 m. Integral dust extraction captures 80 of all dust particles. Attention German version. Order free GB adapter plug No. 08 1172_GB. Supplied with Workpiece clamp, extraction hose and cover, 48 tooth carbide saw blade (saw blade 0 / bore 0 254 / 30 mm), tool for changing the blade. Note Suitable saw blades can be found under No. 078227ff. Manufacturer's designation PS254L S 07 8229 Oscillating saw and mitre saw Power consumption W 2000 Maximum speed rpm 4500 Maximum mitre angle (left / right) degrees 50/50 Maximum inclination angle (left / right) degrees 47/-2 Weight kg 19.5 1502 Main catalogue Hoffmann Group 46 _M12CCS44 _M18CCS55
