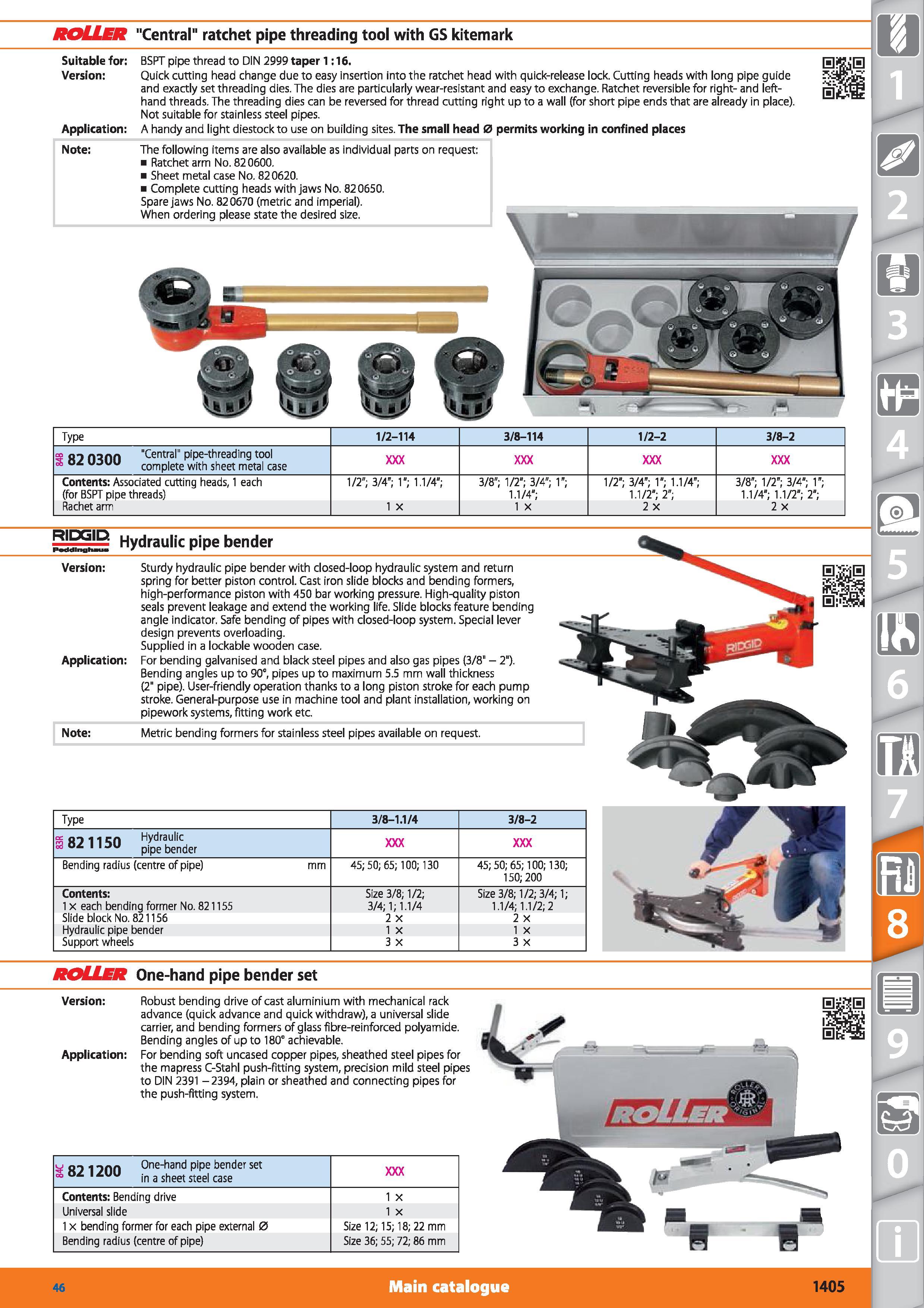

ROLLER "Central" ratchet pipe threading tool with GS kitemark Suitable for Version Application BSPT pipe thread to DIN 2999 taper 1:16. Quick cutting head change due to easy insertion into the ratchet head with quick-release lock. Cutting heads with long pipe guide and exactly set threading dies. The dies are particularly wear-resistant and easy to exchange. Ratchet reversible for right- and left-hand threads. The threading dies can be reversed for thread cutting right up to a wall (for short pipe ends that are already in place). Not suitable for stainless steel pipes. A handy and light diestock to use on building sites. The small head 0 permits working in confined places Note The following items are also available as individual parts on request Ratchet arm No. 820600. Sheet metal case No. 820620. Complete cutting heads with jaws No. 820650. Spare jaws No. 820670 (metric and imperial). When ordering please state the desired size. roller One-hand pipe bender set Version Application Robust bending drive of cast aluminium with mechanical rack advance (quick advance and quick withdraw), a universal slide carrier, and bending formers of glass fibre-reinforced polyamide. Bending angles of up to 180° achievable. For bending soft uncased copper pipes, sheathed steel pipes for the mapress C-Stahl push-fitting system, precision mild steel pipes to DIN 2391 -2394, plain or sheathed and connecting pipes for the push-fitting system. uo')1 One-hand pipe bender set "WIZUU in a sheet steel case Contents Bending drive 1 X Universal slide 1 X 1 x bending former for each pipe external 0 Size 12; 15; 18; 22 mm Bending radius (centre of pipe) Size 36; 55; 72; 86 mm Main catalogue Note Metric bending formers for stainless steel pipes available on request. 1820300 "Central" pipe-threading tool complete with sheet metal case Contents Associated cutting heads, 1 each (for BSPT pipe threads) Rachet arm 1/2"; 3/4"; 1"; 1.1/4"; 1 X 3/8"; 1/2"; 3/4"; 1” 1.1/4"; 1 X 1/2"; 3/4"; 1"; 1.1/4"; 1.1/2"; 2"; 2 X 3/8"; 1/2"; 3/4"; 1" 1.1/4"; 1.1/2"; 2"; 2 X 3/8-1.1/4 3/8-2 j 821150 HydTjic, pipe bender Bending radius (centre of pipe) 45; 50; 65; 100; 130 45; 50; 65; 100; 130; 150; 200 Contents 1 x each bending former No. 821155 Slide block No. 821156 Hydraulic pipe bender Support wheels Size 3/8; 1/2; 3/4; 1; 1.1/4 2 X 1 X 3 X Size 3/8; 1/2; 3/4; 1; 1.1/4; 1.1/2; 2 2 X 1 X 3 X 1/2-114 3/8-114 1/2-2 3/8-2 j ID Hydraulic pipe bender Version Sturdy hydraulic pipe bender with dosed-loop hydraulic system and return spring for better piston control. Cast iron slide blocks and bending formers, high-performance piston with 450 bar working pressure. High-quality piston seals prevent leakage and extend the working life. Slide blocks feature bending angle indicator. Safe bending of pipes with dosed-loop system. Special lever design prevents overloading. Supplied in a lockable wooden case. Application For bending galvanised and black steel pipes and also gas pipes (3/8" - 2"). Bending angles up to 90°, pipes up to maximum 5.5 mm wall thickness (2" pipe). User-friendly operation thanks to a long piston stroke for each pump stroke. General-purpose use in machine tool and plant installation, working on pipework systems, fitting work etc.
