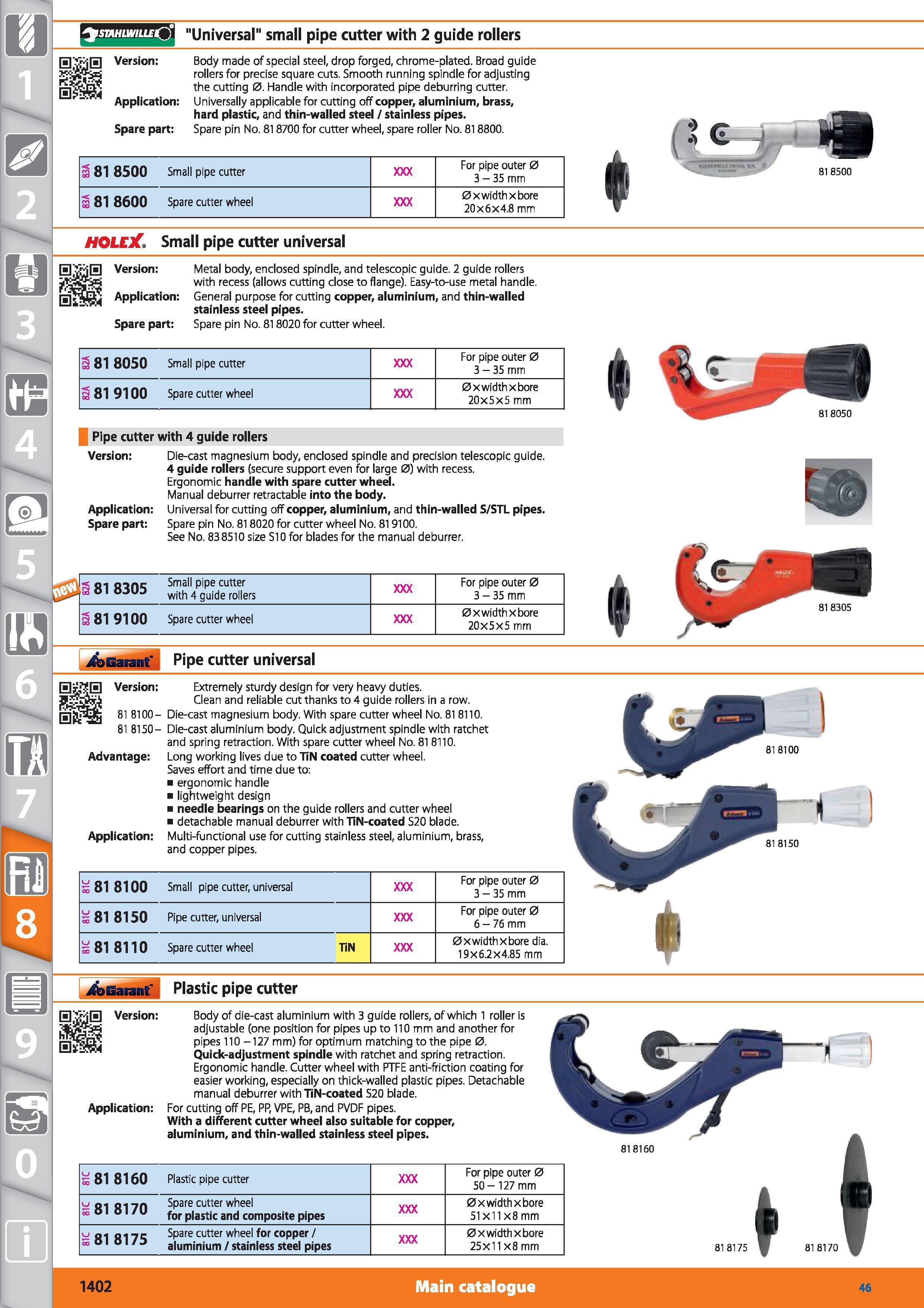

UDUfUPfUfO "Universal" small pipe cutter with 2 guide rollers Version Body made of special steel, drop forged, chrome-plated. Broad guide rollers for precise square cuts. Smooth running spindle for adjusting the cutting 0. Handle with incorporated pipe deburring cutter. Application Universally applicable for cutting off copper, aluminium, brass, hard plastic, and thin-walled steel / stainless pipes. Spare part Spare pin No. 818700 for cutter wheel, spare roller No. 818800. a 81 8500 Small pipe cutter For pipe outer 0 3-35 mm il 81 8600 Spare cutter wheel 0xwidthxbore 20x6x4.8 mm HOLEX Small pipe cutter universal Metal body, enclosed spindle, and telescopic guide. 2 guide rollers with recess (allows cutting close to flange). Easy-to-use metal handle, gr’wy Application General purpose for cutting copper, aluminium, and thin-walled stainless steel pipes. Spare pin No. 818020 for cutter wheel. Spare part S3 81 8050 Small pipe cutter For pipe outer 0 3-35 mm S 81 9100 Spare cutter wheel 0xwidthxbore 20x5x5 mm Pipe cutter with 4 guide rollers Version Application Spare part Die-cast magnesium body, enclosed spindle and precision telescopic guide. 4 guide rollers (secure support even for large 0) with recess. Ergonomic handle with spare cutter wheel. Manual deburrer retractable into the body. Universal for cutting off copper, aluminium, and thin-walled S/STL pipes. Spare pin No. 818020 for cutter wheel No. 819100. See No. 838510 size S10 for blades for the manual deburrer. s ai Rini; SmaN P'Pe cutter ” °1 OJu:> with 4 guide rollers For pipe outer 0 3 - 35 mm S3 81 9100 Spare cutter wheel 0xwidthxbore 20x5x5 mm i&Garant'i Pipe cutter universal Version Extremely sturdy design for very heavy duties. Clean and reliable cut thanks to 4 guide rollers in a row. 81 8100- Die-cast magnesium body. With spare cutter wheel No. 81 8110. 81 8150- Die-cast aluminium body. Quick adjustment spindle with ratchet and spring retraction. With spare cutter wheel No. 81 8110. Advantage Long working lives due to TiN coated cutter wheel. Saves effort and time due to ergonomic handle lightweight design needle bearings on the guide rollers and cutter wheel detachable manual deburrer with TiN-coated S20 blade. Application Multi-functional use for cutting stainless steel, aluminium, brass, and copper pipes. 81 8100 Small pipe cutter, universal For pipe outer 0 3-35 mm 81 8150 Pipe cutter, universal For pipe outer 0 6-76 mm 81 8110 Spare cutter wheel TiN 0xwidthxbore dia. 19x6.2x4.85 mm ifeGaranf i Plastic pipe cutter Version Body of die-cast aluminium with 3 guide rollers, of which 1 roller is adjustable (one position for pipes up to 110 mm and another for pipes 110-127 mm) for optimum matching to the pipe 0. Quick-adjustment spindle with ratchet and spring retraction. Ergonomic handle. Cutter wheel with PTFE anti-friction coating for easier working, especially on thick-walled plastic pipes. Detachable manual deburrer with TiN-coated S20 blade. Application For cutting off PE, PP, VPE, PB, and PVDF pipes. With a different cutter wheel also suitable for copper, aluminium, and thin-walled stainless steel pipes. 5 81 8160 Plastic pipe cutter For pipe outer 0 50- 127 mm - 81 Al 70 Spare cutter wheel for plastic and composite pipes 0x widthx bore 51x11x8mm ugi oi 7c Spare cutter wheel for copper / sol 01/3 aluminium / stainless steel pipes 0x widthx bore 25x11 x8 mm 1402 Main catalogue IWWWWHM 9 81 8500 if 81 8050 81 8305 818160 81 8175 81 8170 46
