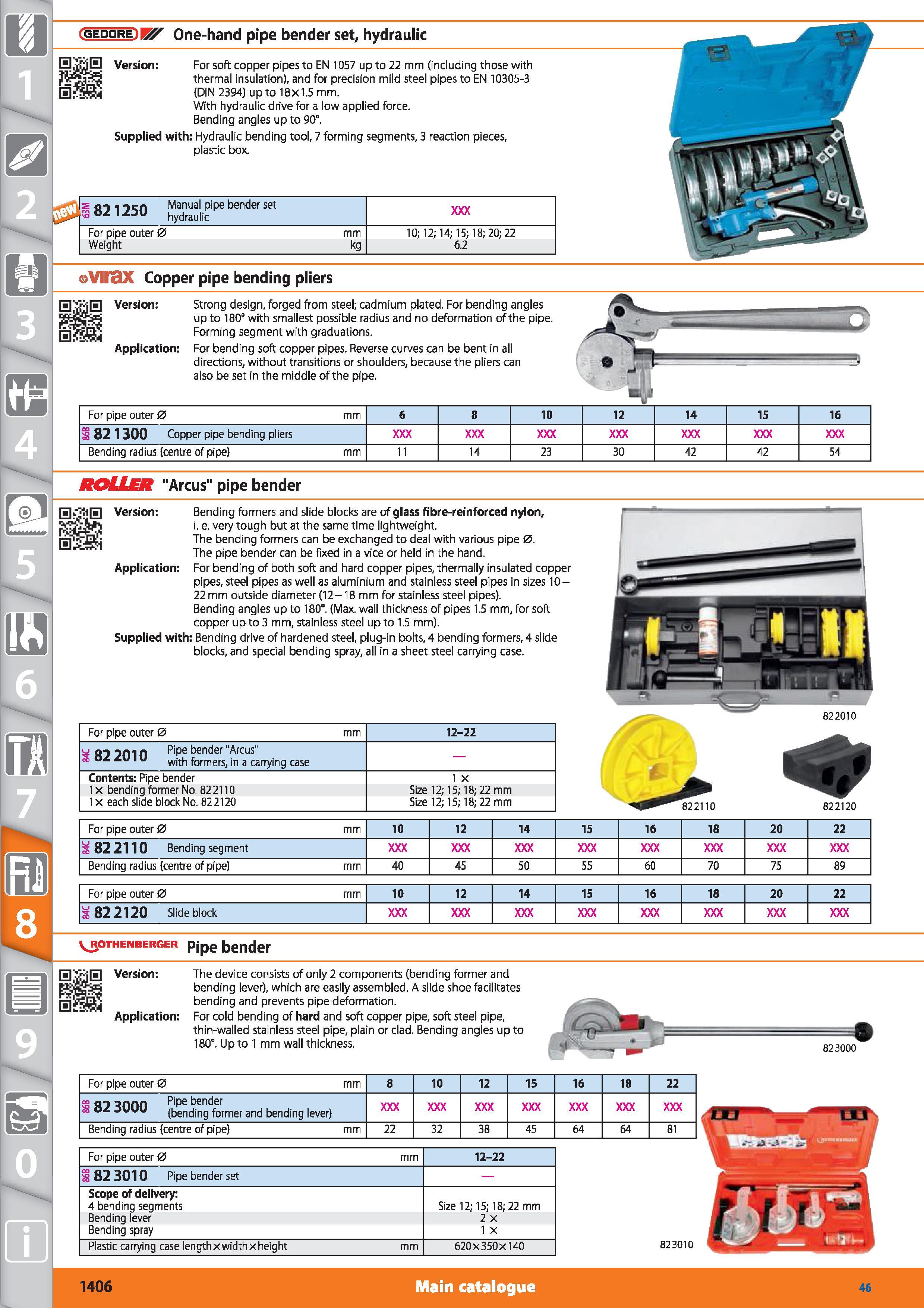

cgedorejBE - One-hand pipe bender set, hydraulic Version For soft copper pipes to EN 1057 up to 22 mm (including those with thermal insulation), and for precision mild steel pipes to EN 10305-3 (DIN 2394) up to 18x 1.5 mm. With hydraulic drive for a low applied force. Bending angles up to 90°. Supplied with Hydraulic bending tool, 7 forming segments, 3 reaction pieces, plastic box. 821250 Manual pipe bender set hydraulic For pipe outer 0 Weight mm kg 10; 12; 14; 15; 18; 20; 22 6.2 < VII3X Copper pipe bending pliers Version Strong design, forged from steel; cadmium plated. For bending angles up to 180° with smallest possible radius and no deformation of the pipe. Forming segment with graduations. Application For bending soft copper pipes. Reverse curves can be bent in all directions, without transitions or shoulders, because the pliers can also be set in the middle of the pipe. For pipe outer 0 mm 6 8 10 12 14 15 16 1 82 1300 Copper pipe bending pliers Bending radius (centre of pipe) mm 11 14 23 30 42 42 54 roLLbr "Arcus" pipe bender Version Bending formers and slide blocks are of glass fibre-reinforced nylon, i. e. very tough but at the same time lightweight. The bending formers can be exchanged to deal with various pipe 0. The pipe bender can be fixed in a vice or held in the hand. Application For bending of both soft and hard copper pipes, thermally insulated copper pipes, steel pipes as well as aluminium and stainless steel pipes in sizes IQ-22 mm outside diameter (12-18 mm for stainless steel pipes). Bending angles up to 180°. (Max. wall thickness of pipes 1.5 mm, for soft copper up to 3 mm, stainless steel up to 1.5 mm). Supplied with Bending drive of hardened steel, plug-in bolts, 4 bending formers, 4 slide blocks, and special bending spray, all in a sheet steel carrying case. For pipe outer 0 822010 Pipe bender "Arcus" with formers, in a carrying case Contents Pipe bender 1 x bending former No. 822110 1 x each slide block No. 822120 12-22 1 X Size 12; 15; 18; 22 mm Size 12; 15; 18; 22 mm 822110 822120 For pipe outer 0 mm 10 12 14 15 16 18 20 22 82 2110 Bending segment Bending radius (centre of pipe) mm 40 45 50 55 60 70 75 89 For pipe outer 0 mm 10 12 14 15 16 18 20 22 S 82 2120 Slide block V othenberger pjpe bender Version The device consists of only 2 components (bending former and bending lever), which are easily assembled. A slide shoe facilitates bending and prevents pipe deformation. Application For cold bending of hard and soft copper pipe, soft steel pipe, thin-walled stainless steel pipe, plain or clad. Bending angles up to 180°. Up to 1 mm wall thickness. 823000 For pipe outer 0 mm 8 10 12 15 16 18 22 82 3000 Pipe nder ” (bending former and bending lever) Bending radius (centre of pipe) mm 22 32 38 45 64 64 81 For pipe outer 0 mm 12-22 1 82 3010 Pipe bender set Scope of delivery 4 bending segments Size 12; 15; 18; 22 mm Bending lever 2 x Bending spray 1 X Plastic carrying case lengthxwidthxheight mm 620x350x140 823010 1406 Main catalogue Hoffmann Group 46
