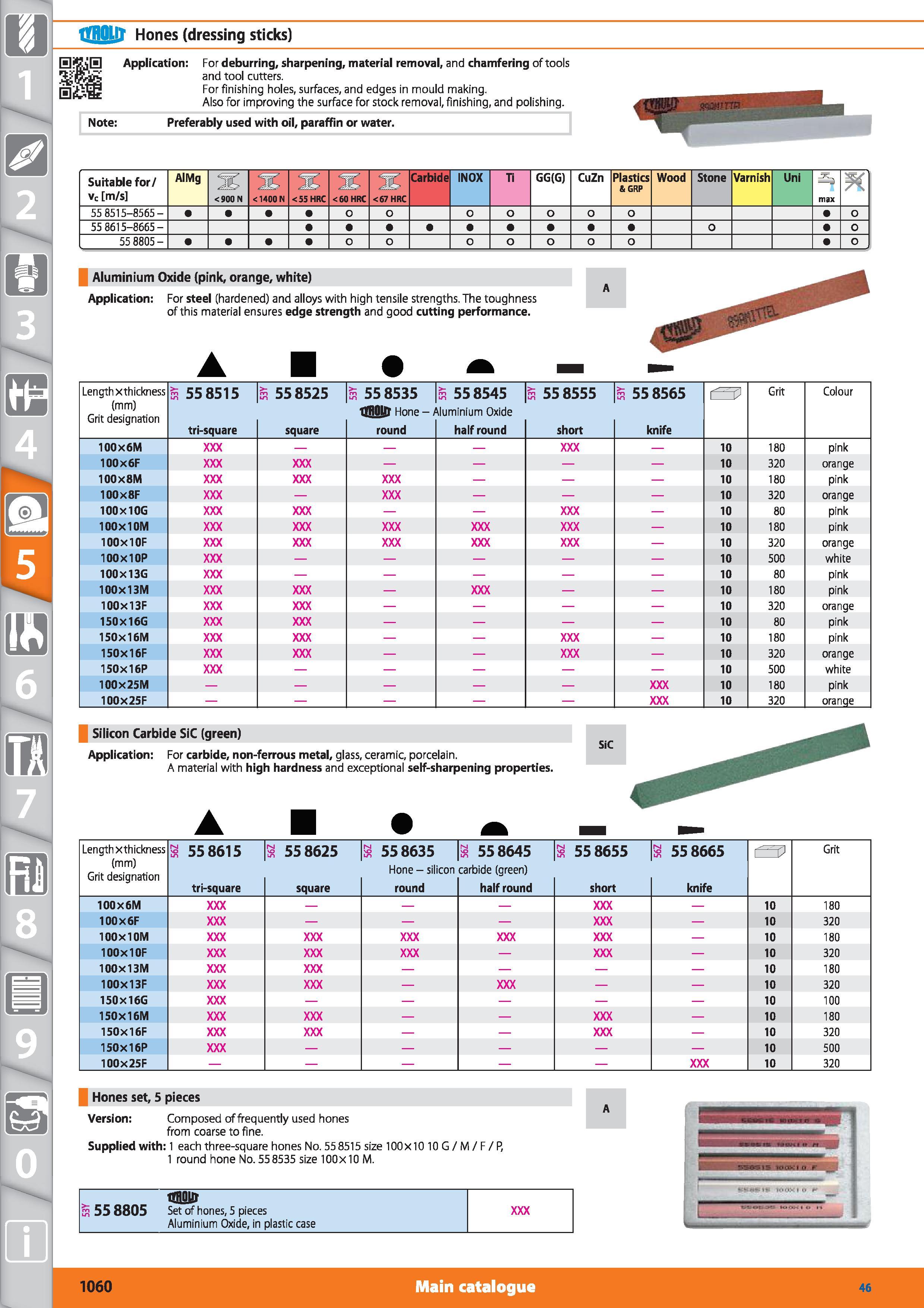

tfBOlIT Hones (dressing sticks) S'tuiH Application wk Ei&Il Note For deburring, sharpening, material removal, and chamfering of tools and tool cutters. For finishing holes, surfaces, and edges in mould making. Also for improving the surface for stock removal, finishing, and polishing. Preferably used with oil, paraffin or water. Suitable for/ vc m/s AlMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max 55 8515-8565- o 55 8615-8665 - 55 8805 - Aluminium Oxide (pink, orange, white) Application For steel (hardened) and alloys with high tensile strengths. The toughness of this material ensures edge strength and good cutting performance. Length xthickness (mm) Grit designation S 55 8515 tri-square S 558525 square S 55 8535 tfflOUr Hone - / round S 558545 \luminium Oxide half round S 55 8555 short 5 55 8565 knife Grit Colour 100X6M 10 180 pink 100X6F 10 320 orange 100X8M 10 180 pink 100X8F 10 320 orange 100X10G 10 80 pink 100X10M 10 180 pink 100x1 OF 10 320 orange 100X10P 10 500 white 100X13G 10 80 pink 100X13M 10 180 pink 100X13F 10 320 orange 150X16G 10 80 pink 150x16IVI 10 180 pink 150X16F 10 320 orange 150X16P 10 500 white 100X25M 10 180 pink 100X25F 10 320 oranqe Silicon Carbide SiC (green) Application For carbide, non-ferrous metal, glass, ceramic, porcelain. A material with high hardness and exceptional self-sharpening properties. SiC Length xthickness (mm) Grit designation 3 55 8615 tri-square 3 55 8625 square 3 55 8635 Hone - silicon round 3 55 8645 carbide (green) half round 3 55 8655 short 3 55 8665 knife Grit 100X6M 10 180 100X6F 10 320 100X10M 10 180 100x1 OF 10 320 100X13M 10 180 100X13F 10 320 150X16G 10 100 150X16M 10 180 150X16F 10 320 150X16P 10 500 100X25F 10 320 Hones set, 5 pieces Version Composed of frequently used hones from coarse to fine. Supplied with 1 each three-square hones No. 558515 size 100x10 10 G / M / F / P, 1 round hone No. 558535 size 100x10 M. diour K 55 8805 Set of hones, 5 pieces Aluminium Oxide, in plastic case A 1060 Main catalogue Hoffmann Group 46
