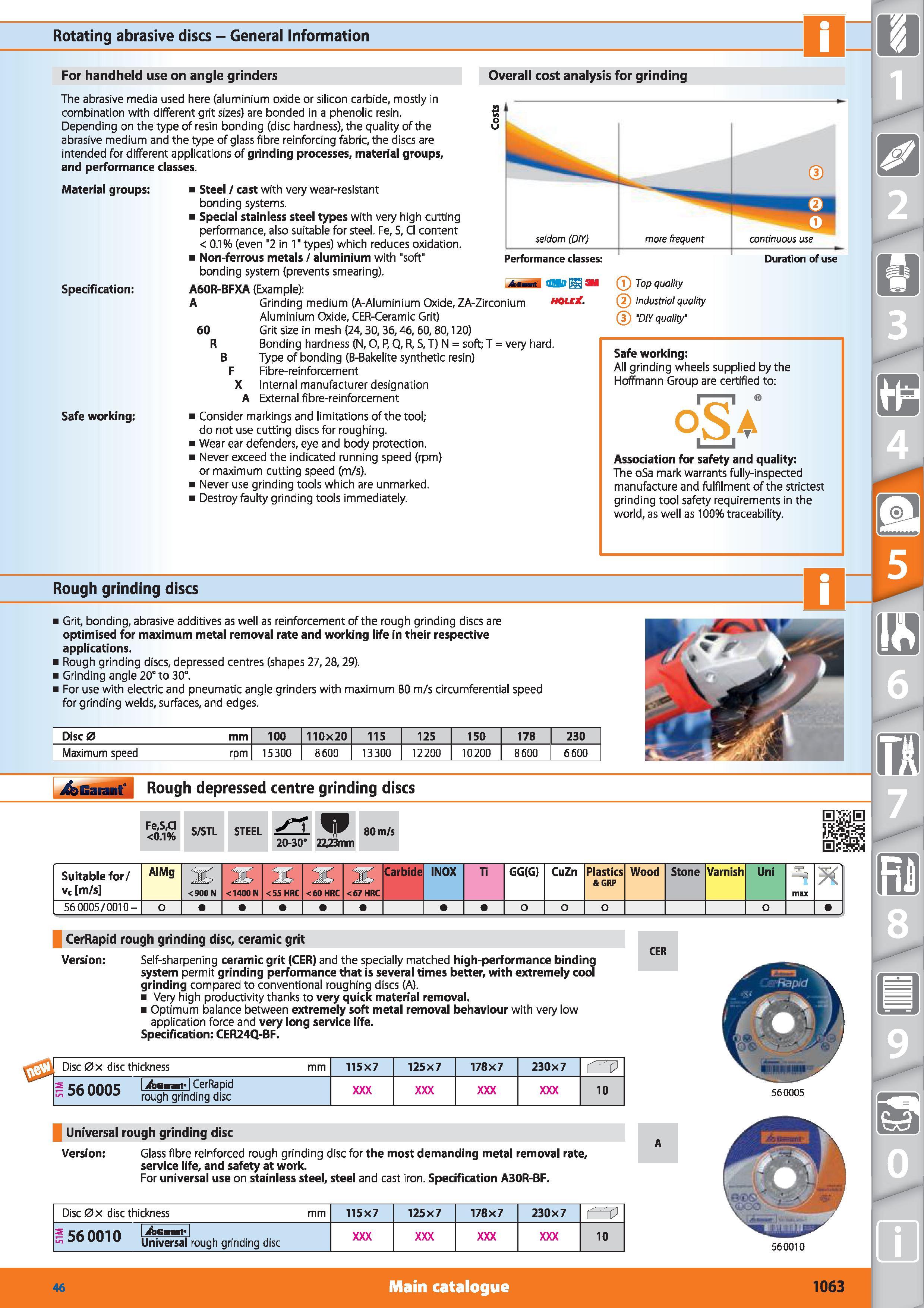

Rotating abrasive discs - General Information For handheld use on angle grinders The abrasive media used here (aluminium oxide or silicon carbide, mostly in combination with different grit sizes) are bonded in a phenolic resin. Depending on the type of resin bonding (disc hardness), the quality of the abrasive medium and the type of glass fibre reinforcing fabric, the discs are intended for different applications of grinding processes, material groups, and performance classes. Overall cost analysis for grinding Material groups Specification Safe working Performance classes Steel / cast with very wear-resistant bonding systems. Special stainless steel types with very high cutting performance, also suitable for steel. Fe, S, Cl content < 0.1% (even "2 in 1" types) which reduces oxidation. Non-ferrous metals / aluminium with "soft" bonding system (prevents smearing). A60R-BFXA (Example) aHIB 3 A Grinding medium (A-Aluminium Oxide, ZA-Zirconium holoC. Aluminium Oxide, CER-Ceramic Grit) 60 Grit size in mesh (24,30,36,46,60,80,120) R Bonding hardness (N, O, P, Q, R, S, T) N soft; T very hard. B Type of bonding (B-Bakelite synthetic resin) F Fibre-reinforcement X Internal manufacturer designation A External fibre-reinforcement Consider markings and limitations of the tool; do not use cutting discs for roughing. Wear ear defenders, eye and body protection. Never exceed the indicated running speed (rpm) or maximum cutting speed (m/s). Never use grinding tools which are unmarked. Destroy faulty grinding tools immediately. JI seldom (DIY) more frequent continuous use Duration of use (T) Top quality (5) Industrial quality (3) “DIY quality" Safe working All grinding wheels supplied by the Hoffmann Group are certified to Association for safety and quality The oSa mark warrants fully-inspected manufacture and fulfilment of the strictest grinding tool safety requirements in the world, as well as 100% traceability. Rough grinding discs 1 Grit, bonding, abrasive additives as well as reinforcement of the rough grinding discs are optimised for maximum metal removal rate and working life in their respective applications. 1 Rough grinding discs, depressed centres (shapes 27,28,29). 1 Grinding angle 20° to 30°. 1 For use with electric and pneumatic angle grinders with maximum 80 m/s circumferential speed for grinding welds, surfaces, and edges. Disc 0 mm 100 110x20 115 125 150 178 230 Maximum speed rpm 15300 8600 13300 12200 10200 8600 6600 Garant Rough depressed centre grinding discs OJ LL. V S/STL STEEL 20-30" 2123mm 80 m/s II Suitable for/ vc m/s AIMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max H 560005/0010- 0 CerRapid rough grinding disc, ceramic grit Version Self-sharpening ceramic grit (CER) and the specially matched high-performance binding system permit grinding performance that is several times better, with extremely cool grinding compared to conventional roughing discs (A). Very high productivity thanks to very quick material removal. Optimum balance between extremely soft metal removal behaviour with very low application force and very long service life. Specification CER24Q-BF. CER Disc 0x disc thickness mm 115x7 125x7 178x7 230x7 e> s 56 0005 1 Gnnt 1 CerRapid k jo vwj rough grinding disc 10 560005 Universal rough grinding disc Version Glass fibre reinforced rough grinding disc for the most demanding metal removal rate, service life, and safety at work. For universal use on stainless steel, steel and cast iron. Specification A30R-BF. m Disc 0x disc thickness mm 115x7 125x7 178x7 230x7 S 56 0010 lAGmnfl s jo uu u Universal rough grinding disc 10 560010 m Main catalogue Hoffmann Group 46 1063
