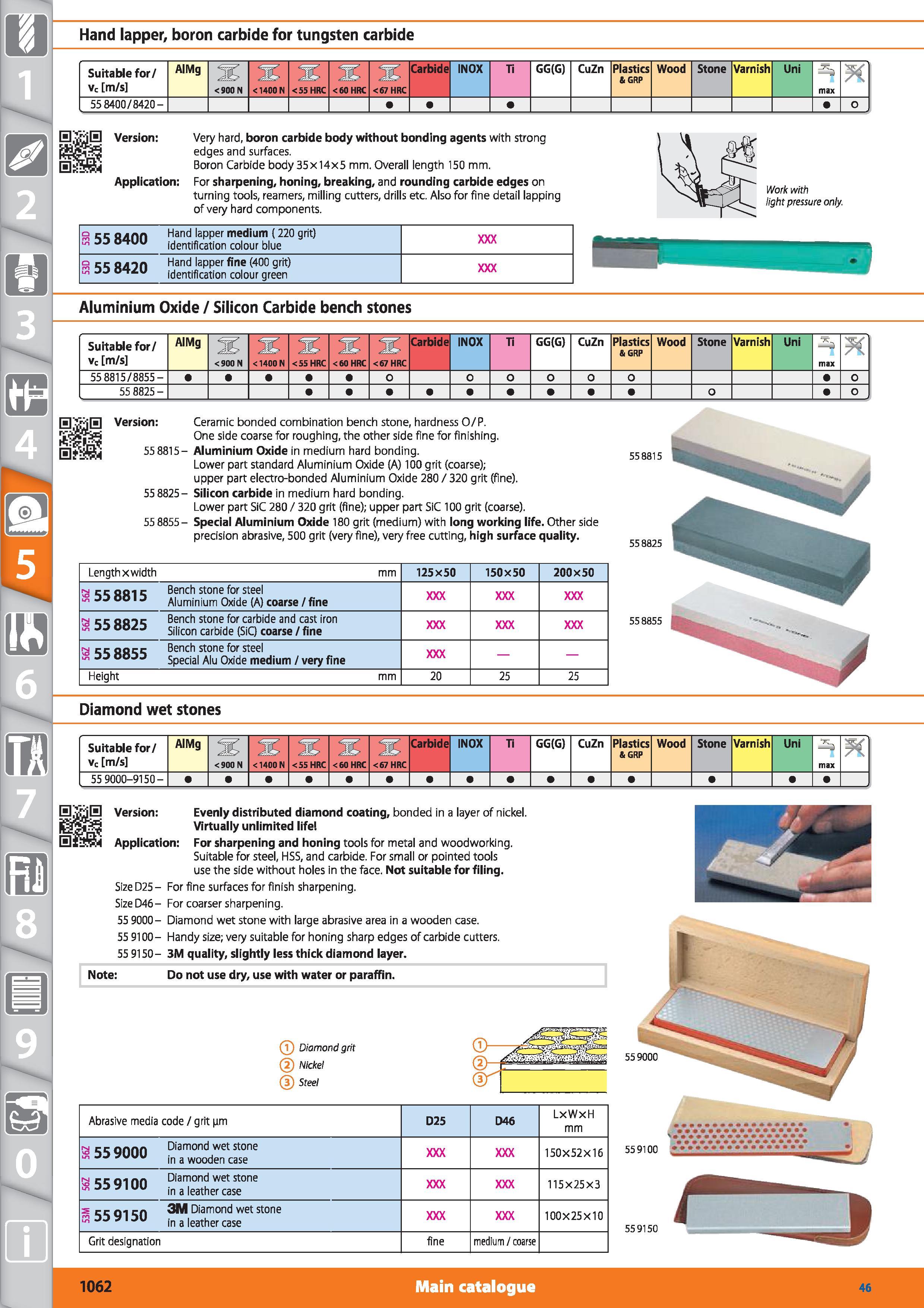

1062 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1062

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1062 1062 ENG Lab2u

Hand lapper, boron carbide for tungsten carbide Suitable for/ Vc m/s AIMg <900 N <1400N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max 558400/8420- 0 Version Very hard, boron carbide body without bonding agents with strong edges and surfaces. Boron Carbide body 35x14x5 mm. Overall length 150 mm. Application For sharpening, honing, breaking, and rounding carbide edges on turning tools, reamers, milling cutters, drills etc. Also for fine detail lapping of very hard components. Work with light pressure only. q rr njAA Hand lapper medium 220 grit) identification colour blue q cc QAjn Hand lapper fine (400 grit) identification colour green Aluminium Oxide / Silicon Carbide bench stones Suitable for/ vc m/s AIMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max Ji 55 8815/8855 - O 0 55 8825 - Version 55 8815- 55 8825- 55 8855- Ceramic bonded combination bench stone, hardness O/P. One side coarse for roughing, the other side fine for finishing. Aluminium Oxide in medium hard bonding. Lower part standard Aluminium Oxide (A) 100 grit (coarse); upper part electro-bonded Aluminium Oxide 280 / 320 grit (fine). Silicon carbide in medium hard bonding. Lower part SiC 280 / 320 grit (fine); upper part SiC 100 grit (coarse). Special Aluminium Oxide 180 grit (medium) with long working life. Other side precision abrasive, 500 grit (very fine), very free cutting, high surface quality. 558815 Lengthxwidth mm 125x50 150x50 200x50 S 55 8815 Bench stone for steel Aluminium Oxide (A) coarse / fine s 55 8825 Bench stone for carbide and cast iron Silicon carbide (SiC) coarse / fine s 55 8855 Bench stone for steel Special Alu Oxide medium / very fine Height mm 20 25 25 558825 558855 Diamond wet stones Suitable for/ vc m/s AIMg <900 N < 1400 N < 55 HRC <60HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max 1 55 9000-9150- J 8 0 m Version Evenly distributed diamond coating, bonded in a layer of nickel. Virtually unlimited life Application For sharpening and honing tools for metal and woodworking. Suitable for steel, HSS, and carbide. For small or pointed tools use the side without holes in the face. Not suitable for filing. Size D25 - For fine surfaces for finish sharpening. SizeD46- For coarser sharpening. 55 9000- Diamond wet stone with large abrasive area in a wooden case. 55 9100- Handy size; very suitable for honing sharp edges of carbide cutters. 55 9150 - 3M quality, slightly less thick diamond layer. Note Do not use dry, use with water or paraffin. (j) Diamond grit (2) Nickel (3) Steel Abrasive media code / grit nm D25 D46 LxWxH mm py r r Qnnn Diamond wet stone in a wooden case 150x52x16 n cc ni nn Diamond wet stone - 55 9100 in a leather case 115x25x3 s cc oi cn 3M Diamond wet stone m a leather case 100X 25X10 Grit designation fine medium / coarse 559150 1062 Main catalogue Hoffmann Group 46 559000 559100
