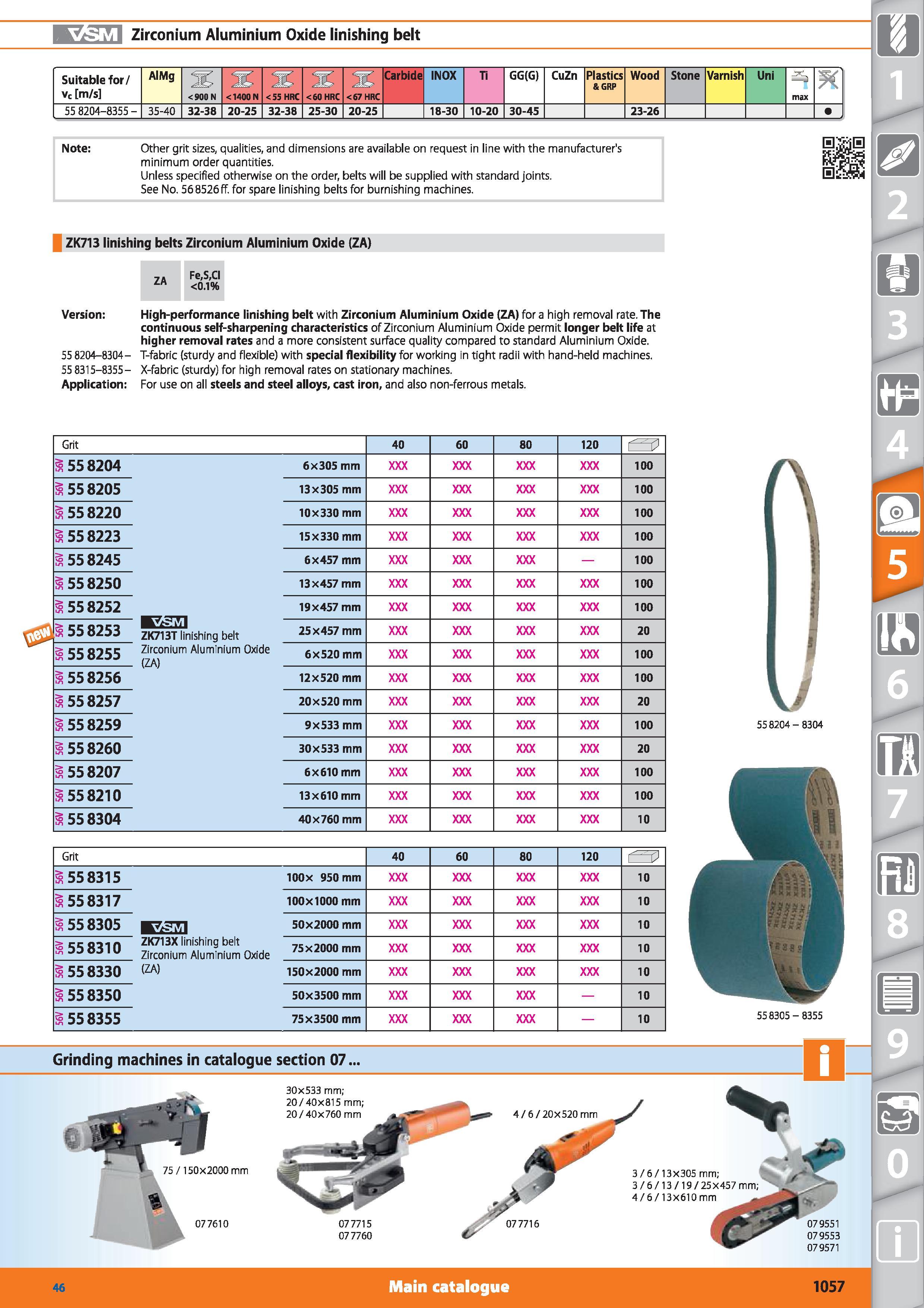

1057 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1057

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1057 1057 ENG Lab2u

Zirconium Aluminium Oxide linishing belt Suitable for/ vc m/s AIMg <900 N 1 "IfE 1 1 Carbide <1400N <55 HRC <60HRC <67 HRC INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni jf max 55 8204-8355 - 35-40 32-38 20-25 32-38 25-30 20-25 18-30 10-20 30-45 23-26 Note Other grit sizes, qualities, and dimensions are available on request in line with the manufacturer's minimum order quantities. Unless specified otherwise on the order, belts will be supplied with standard joints. See No. 56 8526 ff. for spare linishing belts for burnishing machines. ZK713 linishing belts Zirconium Aluminium Oxide (ZA) Version 55 8204-8304-55 8315-8355-Application ZA Fe,S,CI <0.1% High-performance linishing belt with Zirconium Aluminium Oxide (ZA) for a high removal rate. The continuous self-sharpening characteristics of Zirconium Aluminium Oxide permit longer belt life at higher removal rates and a more consistent surface quality compared to standard Aluminium Oxide. T-fabric (sturdy and flexible) with special flexibility for working in tight radii with hand-held machines. X-fabric (sturdy) for high removal rates on stationary machines. For use on all steels and steel alloys, cast iron, and also non-ferrous metals. Grit 40 60 80 120 Q %558204 6x305 mm 100 S558205 13x305 mm 100 558220 10x330 mm 100 558223 15x330 mm 100 558245 6 x457 mm 100 558250 13x457 mm 100 558252 a i ZK713T linishing belt 19 x457 mm 100 558253 25 x457 mm 20 558255 Zirconium Aluminium Oxide (ZA) 6x520 mm 100 558256 12x520 mm 100 558257 20x520 mm 20 558259 9x533 mm 100 558260 30x533 mm 20 558207 6x610 mm 100 558210 13x610 mm 100 558304 40 x 760 mm 10 Grit 40 60 80 120 558315 lOOx 950 mm 10 558317 100x1000 mm 10 558305 50x2000 mm 10 558310 ZK713X linishing belt Zirconium Aluminium Oxide 75 x 2000 mm 10 558330 (ZA) 150x2000 mm 10 558350 50x3500 mm 10 558355 75 x3500 mm 10 Grinding machines in catalogue section 07. 30x533 mm; 20/40x815 mm; 20 / 40x 760 mm 077610 558204-8304 077716 Main catalogue Hoffmann Group 46 3/6/13x305 mm; 3 / 6/13/19 / 25 x 457 mm; 4/6/ 13x610 mm
