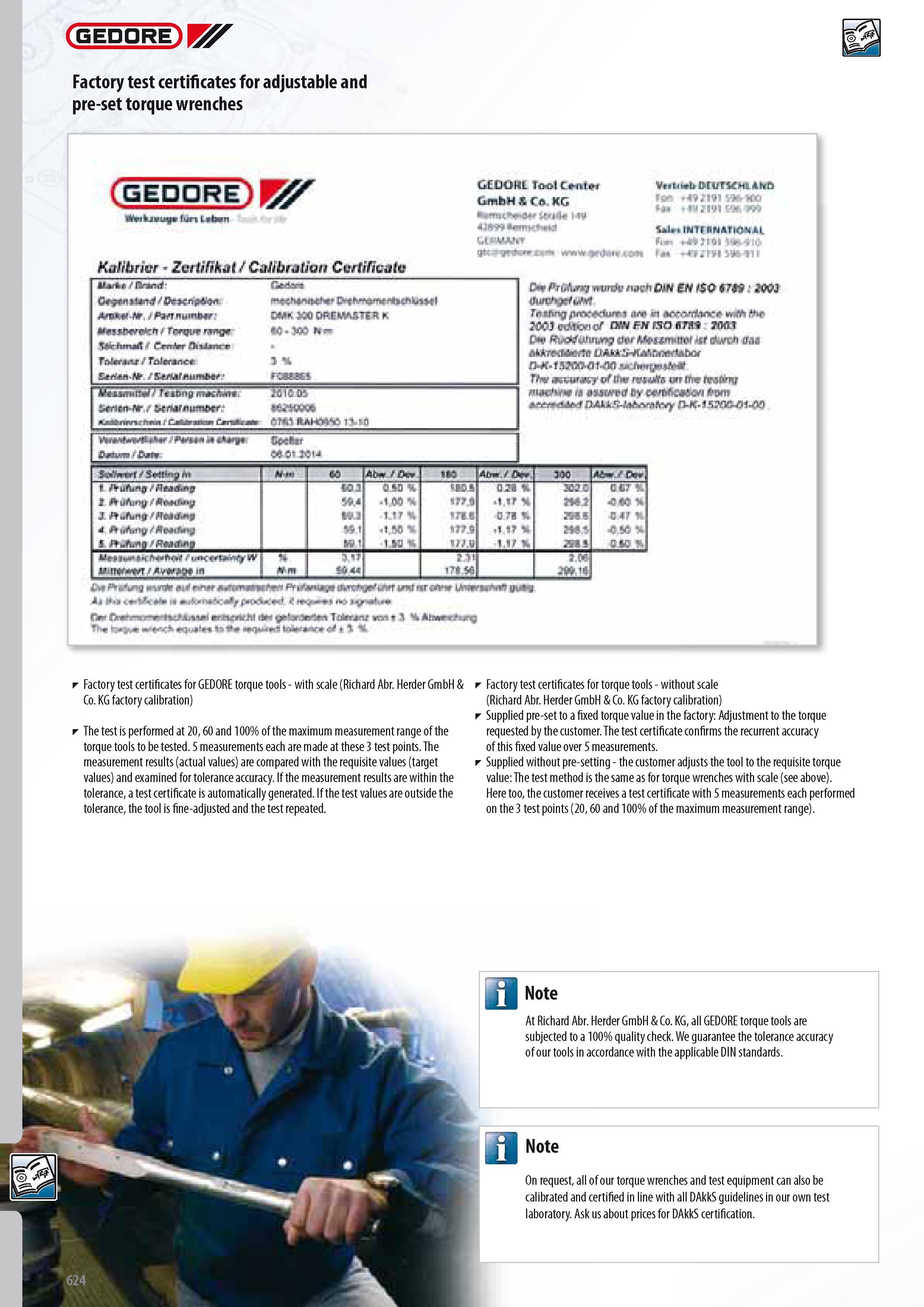

GEDORE Factory test certificates for adjustable and pre-set torque wrenches Factory test certificates for GEDORE torque tools - with scale (Richard Abr. Herder GmbH & Co. KG factory calibration) The test is performed at 20 60 and 100% of the maximum measurement range of the torque tools to be tested. 5 measurements each are made at these 3 test points. The measurement results (actual values) are compared with the requisite values (target values) and examined for tolerance accuracy. If the measurement results are within the tolerance a test certificate is automatically generated. If the test values are outside the tolerance the tool is fine-adjusted and the test repeated. Factory test certificates for torque tools - without scale (Richard Abr. Herder GmbH & Co. KG factory calibration) Supplied pre-set to a fixed torque value in the factory Adjustment to the torque requested by the customer. The test certificate confirms the recurrent accuracy of this fixed value over 5 measurements. Supplied without pre-setting - the customer adjusts the tool to the requisite torque value The test method is the same as for torque wrenches with scale (see above). Here too the customer receives a test certificate with 5 measurements each performed on the 3 test points (20 60 and 100% of the maximum measurement range). Q Note At Richard Abr. Herder GmbH & Co. KG all GEDORE torque tools are subjected to a 100% quality check. We guarantee the tolerance accuracy of our tools in accordance with the applicable DIN standards. Q Note On request all of our torque wrenches and test equipment can also be calibrated and certified in line with all DAkkS guidelines in our own test laboratory. Ask us about prices for DAkkS certification.
