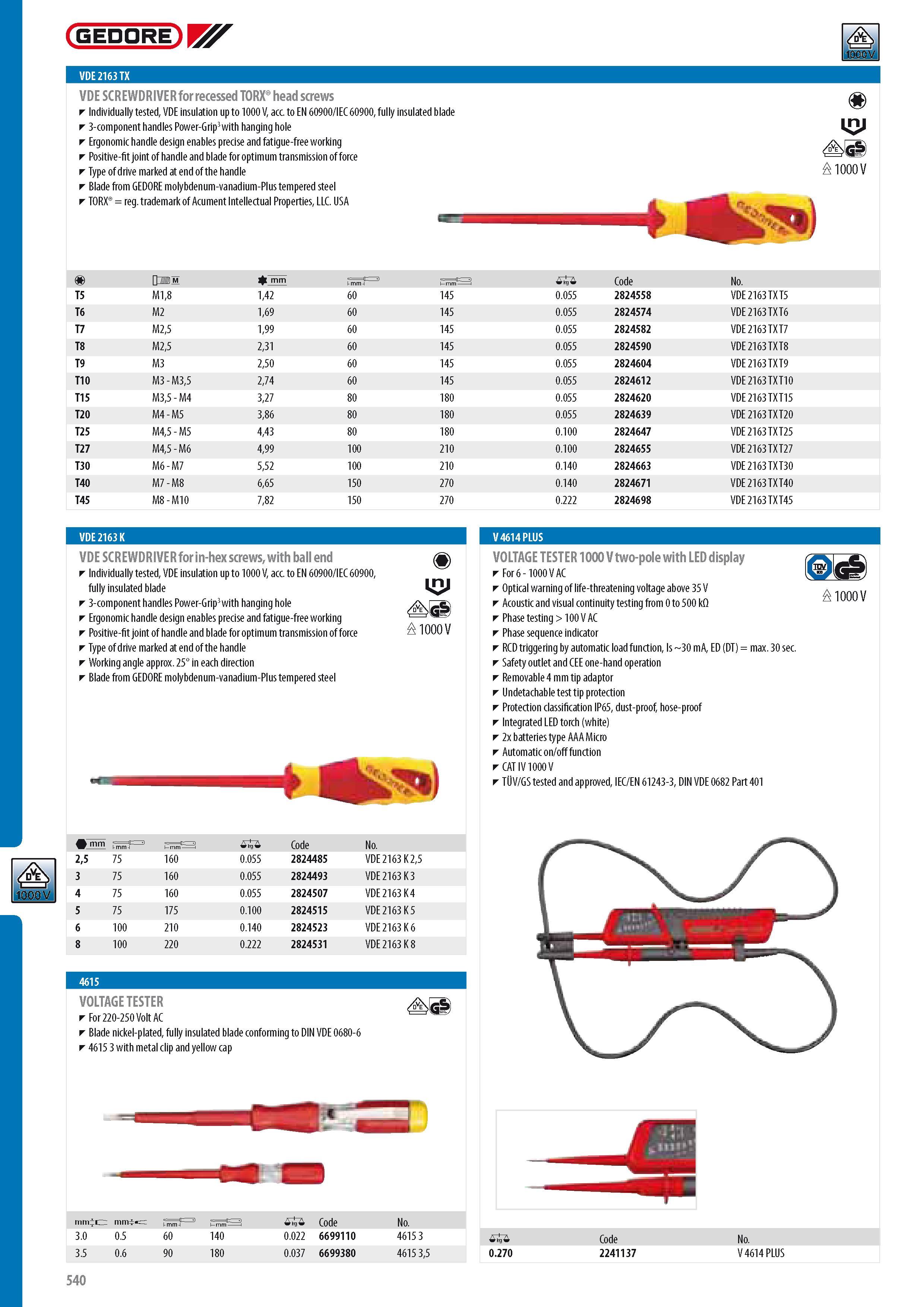

GEDORE VDE2163TX VDE SCREWDRIVER for recessed TORX head screws I ndividually tested VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 fully insulated blade 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Blade from GEDORE molybdenum-vanadium-Plus tempered steel TORX reg. trademark of Acument Intellectual Properties LLC. USA 7 G iO & 1000 V 7 m mm -i0 ode No. T5 M18 142 60 145 0.055 2824558 VDE 2163 TX T5 T6 M2 169 60 145 0.055 2824574 VDE2163TXT6 T7 M25 199 60 145 0.055 2824582 VDE2163TXT7 T8 M25 231 60 145 0.055 2824590 VDE2163TXT8 T9 M3 250 60 145 0.055 2824604 VDE2163TXT9 T10 M3 - M35 274 60 145 0.055 2824612 VDE2163TXT10 T15 M35 - M4 327 80 180 0.055 2824620 VDE2163TXT15 T20 M4 - M5 386 80 180 0.055 2824639 VDE2163TXT20 T25 M45 - M5 443 80 180 0.100 2824647 VDE2163TXT25 T27 M45 - M6 499 100 210 0.100 2824655 VDE2163TXT27 T30 M6 - M7 552 100 210 0.140 2824663 VDE2163TXT30 T40 M7 - M8 665 150 270 0.140 2824671 VDE2163TXT40 T45 M8 - M10 782 150 270 0.222 2824698 VDE2163TXT45 VDE 2163 K V4614 PLUS VDE SCREWDRIVER for in-hex screws with ball end I ndividually tested VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 fully insulated blade 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Working angle approx. 25 in each direction Blade from GEDORE molybdenum-vanadium-Plus tempered steel 5 G iO k1000V mnnv )mm 0 Code No. 5 75 160 0.055 2824485 VDE 2163 K 25 75 160 0.055 2824493 VDE2163K3 75 160 0.055 2824507 VDE2163K4 75 175 0.100 2824515 VDE2163K5 100 210 0.140 2824523 VDE2163K6 100 220 0.222 2824531 VDE2163K8 VOLTAGE TESTER For 220-250 Volt AC Blade nickel-plated fully insulated blade conforming to DIN VDE 0680-( 4615 3 with metal clip and yellow cap iO VOLTAGE TESTER 1000 V two-pole with LED display For6- 1000VAC Optical warning of life-threatening voltage above 35 V Acoustic and visual continuity testing from 0 to 500 kfi Phase testing 100 V AC Phase sequence indicator RCD triggering by automatic load function Is 30 mA ED (DT) max. 30 sec. Safety outlet and CEE one-hand operation Removable 4 mm tip adaptor Undetachable test tip protection Protection classification IP65 dust-proof hose-proof Integrated LED torch (white) 2x batteries type AAA Micro Automatic on off function CAT IV 1000V TLIV GS tested and approved IEC EN 61243-3 DIN VDE 0682 Part 401 k1000V 3.0 3.5 0.5 0.6 60 90 140 180 0 Code 0.022 6699110 0.037 6699380 No. 4615 3 4615 35 0 0.270 Code 2241137 No. V4614 PLUS 540
