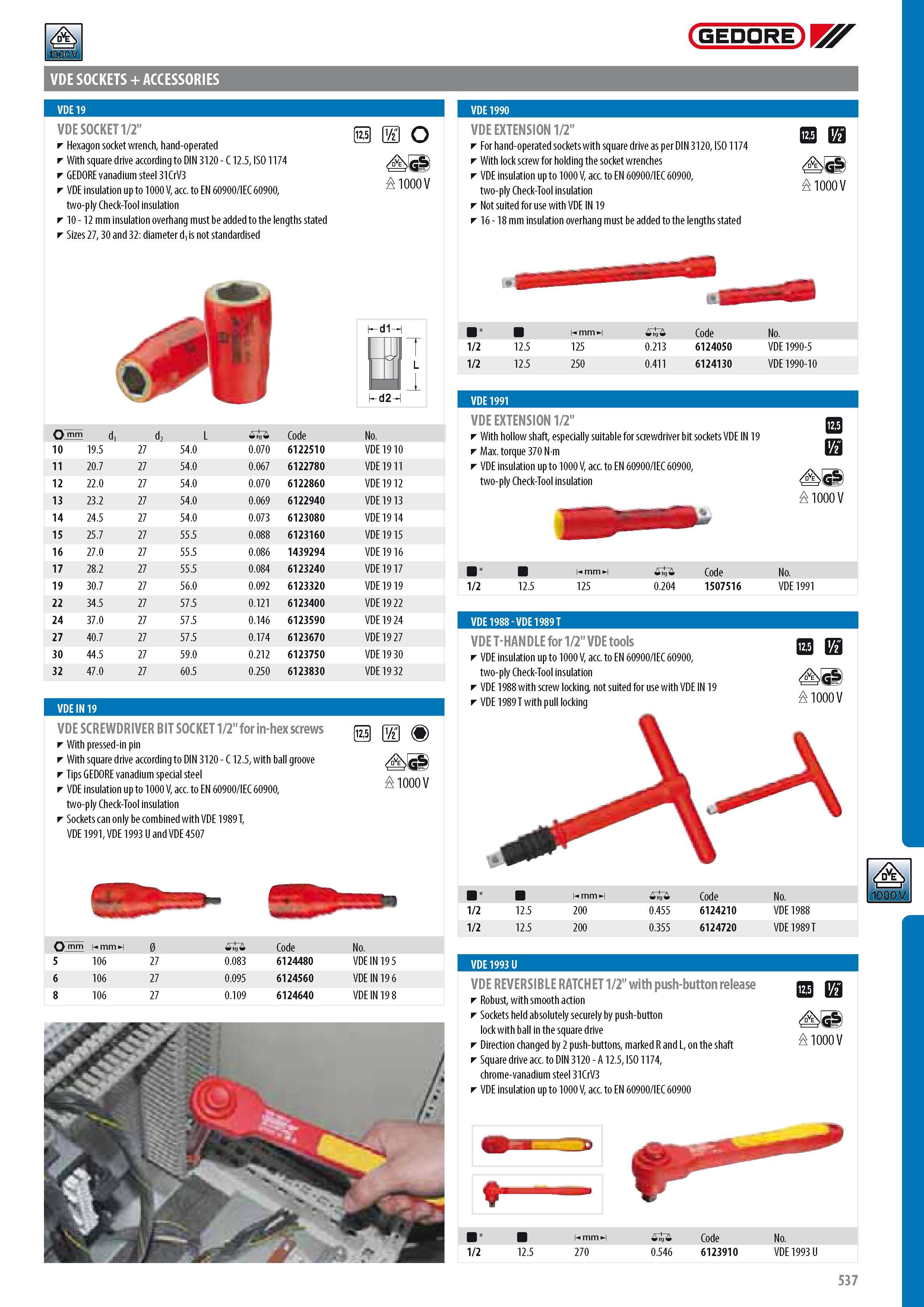

GEDORE VDE SOCKETS + ACCESSORIES VDE SOCKET 1 2" Hexagon socket wrench hand-operated With square drive according to DIN 3120 - C 12.5 ISO 1174 GEDORE vanadium steel 31CrV3 VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation 10 - 12 mm insulation overhang must be added to the lengths stated Sizes 27 30 and 32 diameter d1 is not standardised O T O iO k 1000V VDE EXTENSION 1 2" For hand-operated sockets with square drive as per DIN 3120 IS01174 With lock screw for holding the socket wrenches VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation Not suited for use with VDE IN 19 16 - 18 mm insulation overhang must be added to the lengths stated o d iO k1000V VDE SCREWDRIVER BIT SOCKET 1 2" for in-hex screws With pressed-in pin With square drive according to DIN 3120 - C 12.5 with ball groove Tips GEDORE vanadium special steel VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation Sockets can only be combined with VDE 1989 T VDE 1991 VDE 1993 U and VDE 4507 KdH 1 kd2 O m d1 d2 L -0 Code No. 10 19.5 27 54.0 0.070 6122510 VDE1910 11 20.7 27 54.0 0.067 6122780 VDE1911 12 22.0 27 54.0 0.070 6122860 VDE19 12 13 23.2 27 54.0 0.069 6122940 VDE19 13 14 24.5 27 54.0 0.073 6123080 VDE1914 15 25.7 27 55.5 0.088 6123160 VDE19 15 16 27.0 27 55.5 0.086 1439294 VDE1916 17 28.2 27 55.5 0.084 61 23240 VDE1917 19 30.7 27 56.0 0.092 6123320 VDE1919 22 34.5 27 57.5 0.121 6123400 VDE1922 24 37.0 27 57.5 0.146 6123590 VDE1924 27 40.7 27 57.5 0.174 6123670 VDE1927 30 44.5 27 59.0 0.212 6123750 VDE1930 32 47.0 27 60.5 0.250 61 23830 VDE1932 VDEIN 19 O T 5 iO k1000V 3 mm mmm m 0 0 Code No. 106 27 0.083 6124480 VDEIN 195 106 27 0.095 6124560 VDE IN 19 6 106 27 0.109 6124640 VDE IN 19 8 11 m mm m 0 Code No. T 1 2 12.5 125 0.213 6124050 VDE1990-5 L 1 2 12.5 250 0.411 6124130 VDE1990-10 1 VDE1991 VDE EXTENSION 1 2" With hollow shaft especially suitable for screwdriver bit sockets VDE IN 19 Max. torque 370 Nm VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation o d iO k1000V 11 m mm m -0 Code No. 1 2 12.5 125 0.204 1507516 VDE 1991 VDE1988-VDE1989T VDE T-HANDLE for 1 2" VDE tools VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation VDE 1988 with screw locking not suited for use with VDE IN 19 VDE 1989 T with pull locking o d iO k1000V 11 1 2 12.5 1 2 12.5 m mm m 200 200 0 Code 0.455 6124210 0.355 6124720 No. VDE1988 VDE1989T VDE REVERSIBLE RATCHET 1 2" with push-button release Robust with smooth action Sockets held absolutely securely by push-button lock with ball in the square drive Direction changed by 2 push-buttons marked R and L on the shaft Square drive acc. to DIN 3120 - A 12.5 ISO 1174 chrome-vanadium steel 31CrV3 VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 o d iO k1000V 11 1 2 12.5 Hmm 270 0 Code 0.546 6123910 No. VDE1993U 537 VDE 19 VDE1990
