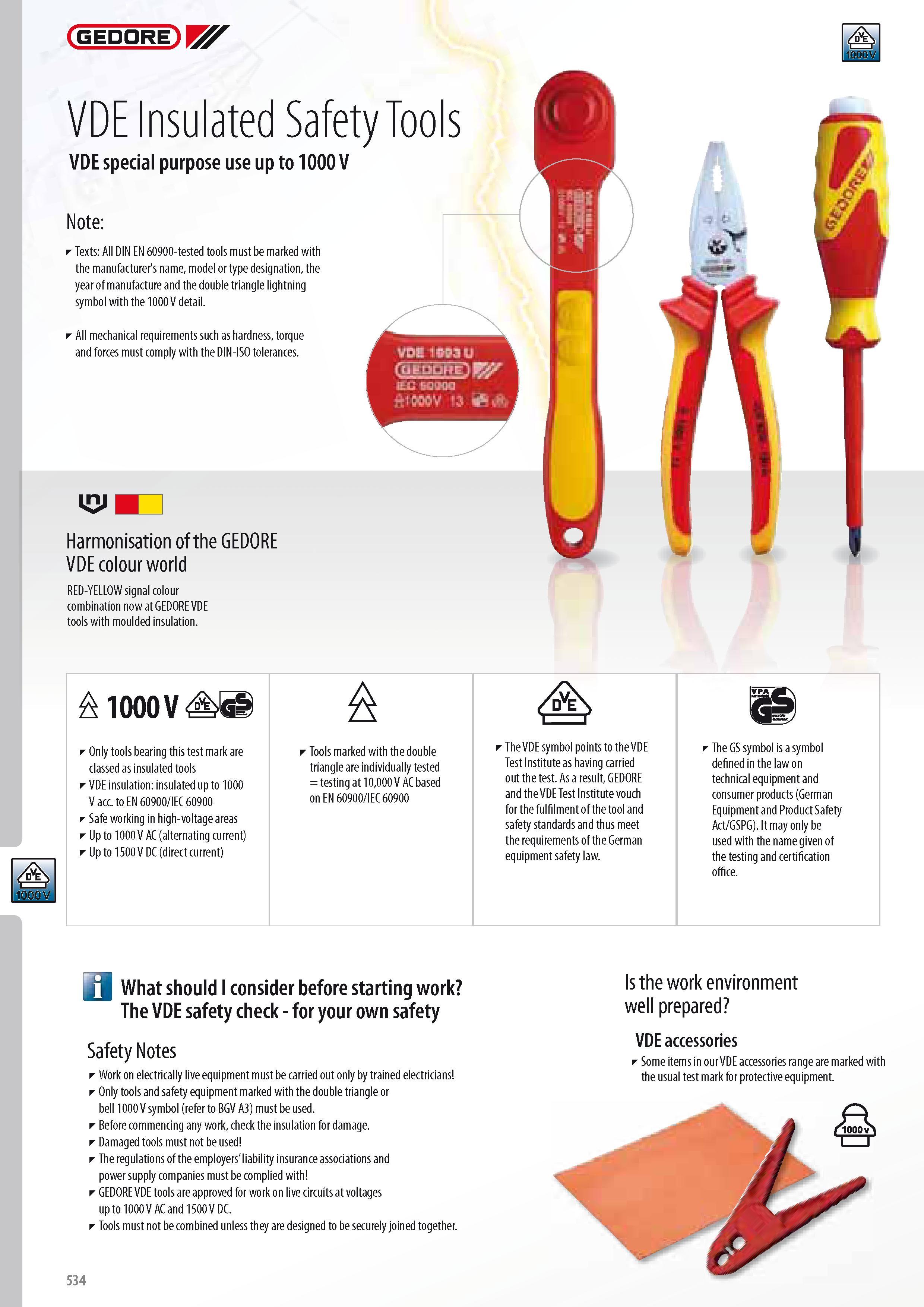

536 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.534

Каталог GEDORE 2014 Слесарный инструмент Стр. 534 0536 ENG Lab2u

GEDORE VDE Insulated Safety Tools VDE special purpose use up to 1000 V Note Texts All DIN EN 60900-tested tools must be marked with the manufacturer's name model or type designation the year of manufacture and the double triangle lightning symbol with the 1000 V detail. All mechanical requirements such as hardness torque and forces must comply with the DIN-ISO tolerances. Harmonisation of the GEDORE VDE colour world RED-YELLOW signal colour combination now at GEDORE VDE tools with moulded insulation. &1000V k & i r Only tools bearing this test mark are classed as insulated tools VDE insulation insulated up to 1000 V acc. to EN 60900 IEC 60900 Safe working in high-voltage areas Up to 1000 V AC (alternating current) Up to 1500 V DC (direct current) Tools marked with the double triangle are individually tested testing at 10000 V AC based on EN 60900 IEC 60900 The VDE symbol points to the VDE Test Institute as having carried out the test. As a result GEDORE and the VDE Test Institute vouch for the fulfilment of the tool and safety standards and thus meet the requirements of the German equipment safety law. The GS symbol is a symbol defined in the law on technical equipment and consumer products (German Equipment and Product Safety Act GSPG). It may only be used with the name given of the testing and certification office. a What should I consider before starting work The VDE safety check - for your own safety Safety Notes Work on electrically live equipment must be carried out only by trained electricians Only tools and safety equipment marked with the double triangle or bell 1000 V symbol (refer to BGV A3) must be used. Before commencing any work check the insulation for damage. Damaged tools must not be used The regulations of the employers'liability insurance associations and power supply companies must be complied with GEDORE VDE tools are approved for work on live circuits at voltages up to 1000 V AC and 1500 V DC. Tools must not be combined unless they are designed to be securely joined together. Is the work environment well prepared VDE accessories Some items in our VDE accessories range are marked with the usual test mark for protective equipment. 534
