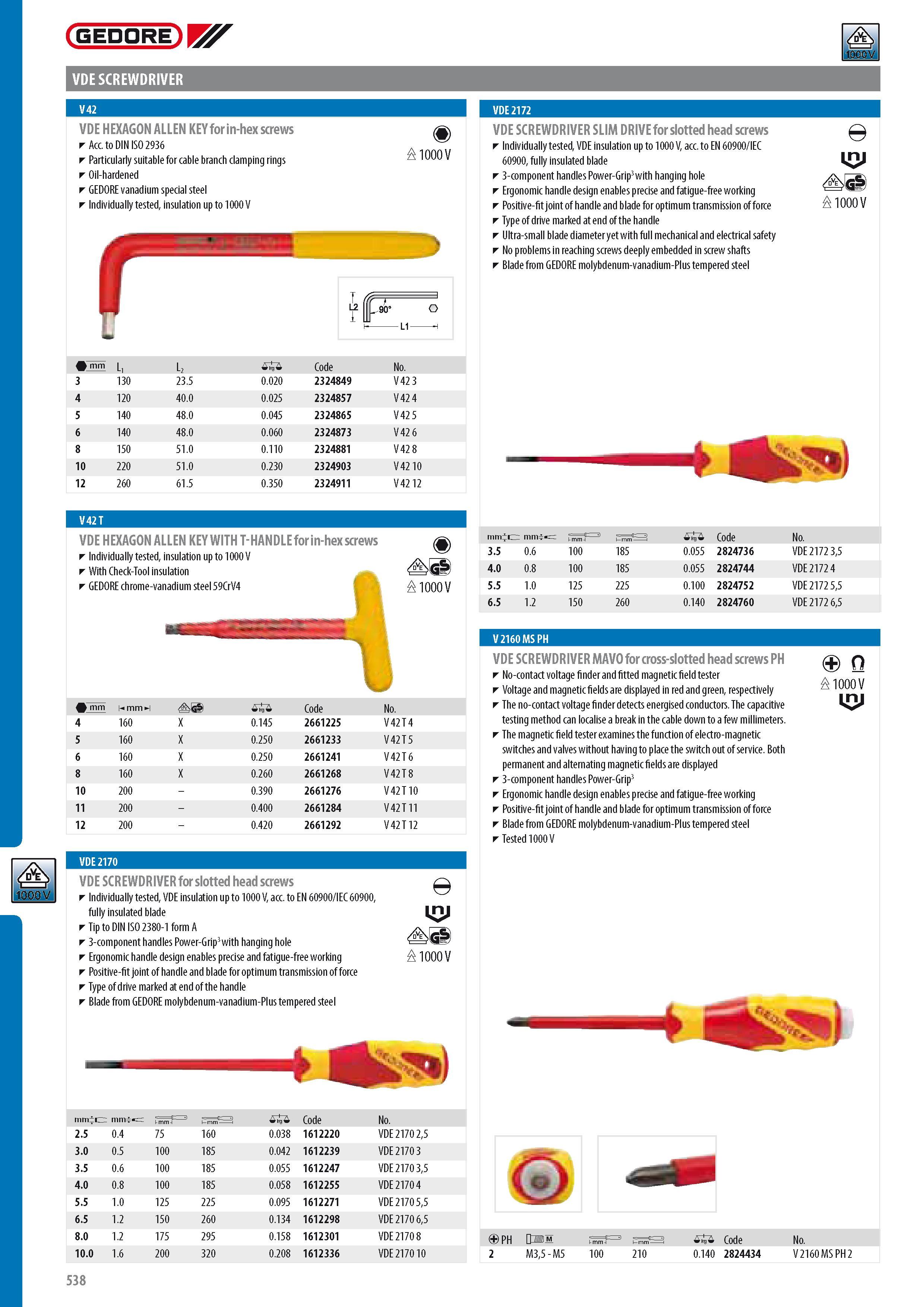

GEDORE VDE SCREWDRIVER VDE HEXAGON ALLEN KEY for in-hex screws Acc. to DIN ISO 2936 Particularly suitable for cable branch clamping rings Oil-hardened GEDORE vanadium special steel Individually tested insulation up to 1000 V 5 k 1000V ) mm L1 L2 -0 Code No. 130 23.5 0.020 2324849 V 42 3 120 40.0 0.025 2324857 V 42 4 140 48.0 0.045 2324865 V 42 5 140 48.0 0.060 2324873 V 42 6 150 51.0 0.110 2324881 V 42 8 0 220 51.0 0.230 2324903 V 42 10 2 0 6 2 61.5 0.350 2324911 V 42 12 VDE SCREWDRIVER SLIM DRIVE for slotted head screws I ndividually tested VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 fully insulated blade 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Ultra-small blade diameter yet with full mechanical and electrical safety No problems in reaching screws deeply embedded in screw shafts Blade from GEDORE molybdenum-vanadium-Plus tempered steel G iO k1000V VDE HEXAGON ALLEN KEY WITH T-HANDLE for in-hex screws I ndividually tested insulation up to 1000 V With Check-Tool insulation GEDORE chrome-vanadium steel 59CrV4 I k 1000 V ) mm m mm mi i -0 Code No. 160 X 0.145 2661225 V 42 T 4 160 X 0.250 2661233 V 42 T 5 160 X 0.250 2661241 V 42 T 6 160 X 0.260 2661268 V 42 T 8 0 200 - 0.390 2661276 V 42 T 10 1 200 - 0.400 2661284 V 42 T 11 2 200 - 0.420 2661292 V 42 T 12 VDE SCREWDRIVER for slotted head screws I ndividually tested VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 fully insulated blade T ip to DIN ISO 2380-1 form A 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Blade from GEDORE molybdenum-vanadium-Plus tempered steel G iO k1000V mm 3 0 Code No. 2.5 0.4 75 160 0.038 1612220 VDE 2170 25 3.0 0.5 100 185 0.042 1612239 VDE21703 3.5 0.6 100 185 0.055 1612247 VDE 2170 35 4.0 0.8 100 185 0.058 1612255 VDE21704 5.5 1.0 125 225 0.095 1612271 VDE2170 55 6.5 1.2 150 260 0.134 1612298 VDE 2170 65 8.0 1.2 175 295 0.158 1612301 VDE21708 10.0 1.6 200 320 0.208 1612336 VDE2170 10 mm 1 0 Code No. 3.5 0.6 100 185 0.055 2824736 VDE 2172 35 4.0 0.8 100 185 0.055 2824744 VDE21724 5.5 1.0 125 225 0.100 2824752 VDE 2172 55 6.5 1.2 150 260 0.140 2824760 VDE 2172 65 VDE SCREWDRIVER MAVO for cross-slotted head screws PH No-contact voltage finder and fitted magnetic field tester Voltage and magnetic fields are displayed in red and green respectively The no-contact voltage finder detects energised conductors. The capacitive testing method can localise a break in the cable down to a few millimeters. The magnetic field tester examines the function of electro-magnetic switches and valves without having to place the switch out of service. Both permanent and alternating magnetic fields are displayed 3-component handles Power-Grip3 Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Blade from GEDORE molybdenum-vanadium-Plus tempered steel Tested 1000 V I k1000V G M35 - M5 100 210 0 Code 0.140 2824434 No. V 2160 MS PH 2 538
