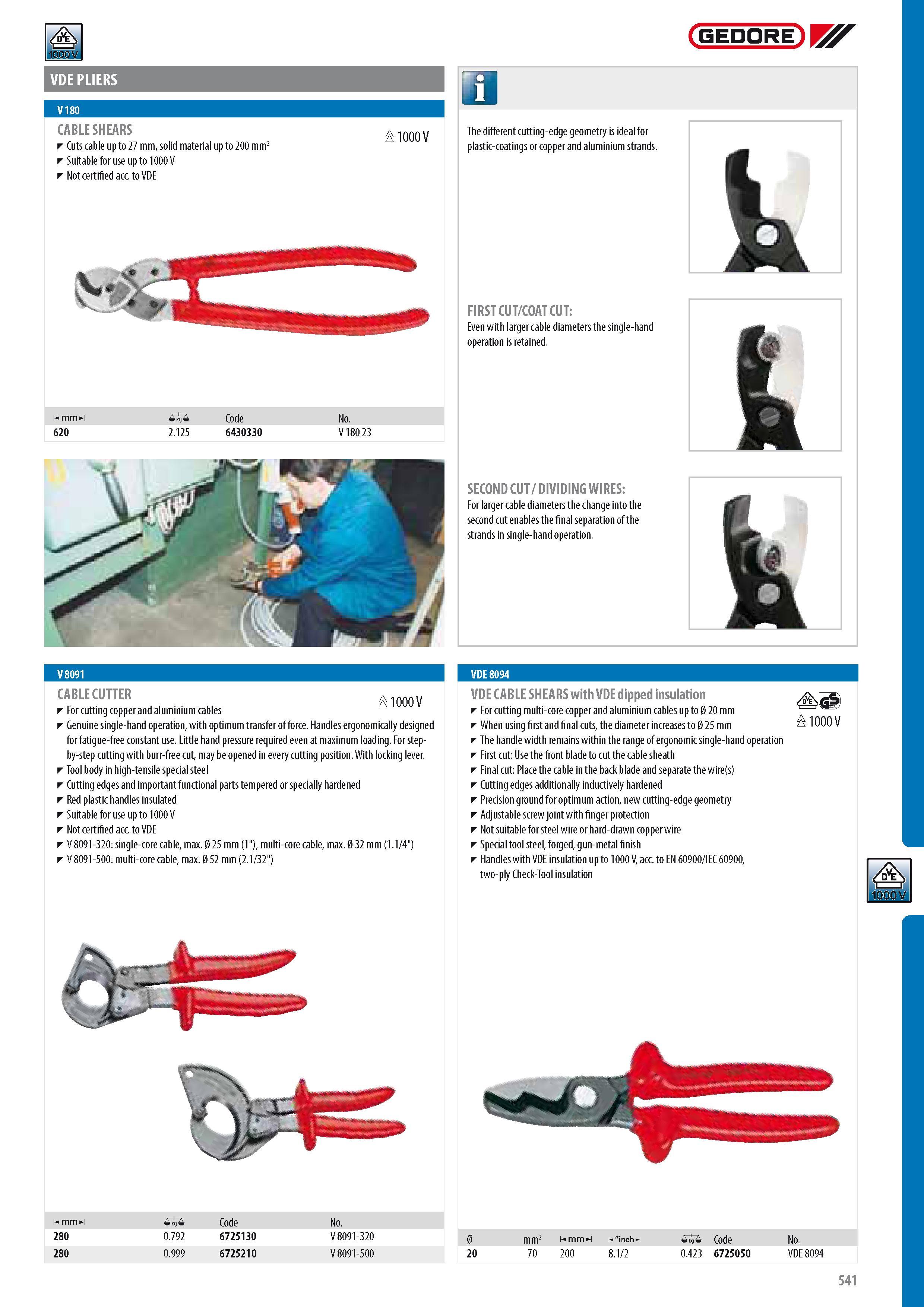

VDE PLIERS CABLE SHEARS Cuts cable up to 27 mm solid material up to 200 mm2 Suitable for use up to 1000 V Not certified acc. to VDE & 1000 V Hmm - 620 0 2.125 Code 6430330 No. V 18023 & 1000 V CABLE CUTTER r For cutting copper and aluminium cables Genuine single-hand operation with optimum transfer of force. Handles ergonomically designed for fatigue-free constant use. Little hand pressure required even at maximum loading. For step-by-step cutting with burr-free cut may be opened in every cutting position. With locking lever. Tool body in high-tensile special steel Cutting edges and important functional parts tempered or specially hardened Red plastic handles insulated Suitable for use up to 1000 V Not certified acc. to VDE V 8091-320 single-core cable max. 0 25 mm (1") multi-core cable max. 0 32 mm (1.1 4") V 8091-500 multi-core cable max. 0 52 mm (2.1 32") GEDORE The different cutting-edge geometry is ideal for plastic-coatings or copper and aluminium strands. FIRST CUT COAT CUT Even with larger cable diameters the single-hand operation is retained. SECOND CUT DIVIDING WIRES For larger cable diameters the change into the second cut enables the final separation of the strands in single-hand operation. VDE CABLE SHEARS with VDE dipped insulation jO For cutting multi-core copper and aluminium cables up to 0 20 mm When using first and final cuts the diameter increases to 0 25 mm k 1000 V The handle width remains within the range of ergonomic single-hand operation First cut Use the front blade to cut the cable sheath Final cut Place the cable in the back blade and separate the wire(s) Cutting edges additionally inductively hardened Precision ground for optimum action new cutting-edge geometry Adjustable screw joint with finger protection Not suitable for steel wire or hard-drawn copper wire Special tool steel forged gun-metal finish Handles with VDE insulation up to 1000 V acc. to EN 60900 IEC 60900 two-ply Check-Tool insulation m 280 280 0 Code 0.792 6725130 0.999 6725210 No. V8091-320 V 8091-500 20 mm2 70 Hmm - 200 h"inchH 8.1 2 0 Code No. 0.423 6725050 VDE 8094 541
