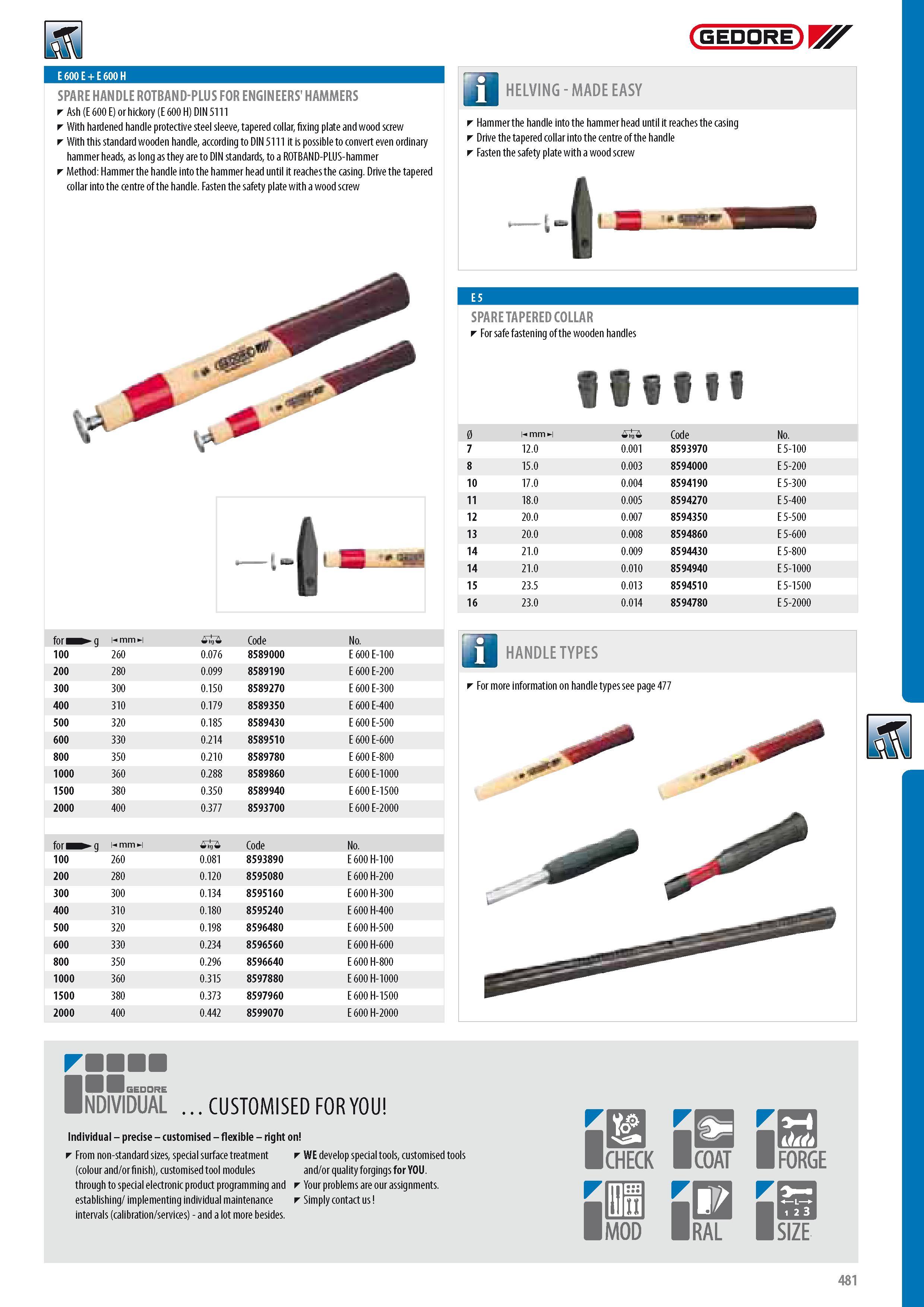

GEDORE E 600 E + E 600 H SPARE HANDLE ROTBAND-PLUS FOR ENGINEERS' HAMMERS Ash (E 600 E) or hickory (E 600 H) DIN 5111 With hardened handle protective steel sleeve tapered collar fixing plate and wood screw With this standard wooden handle according to DIN 5111 it is possible to convert even ordinary hammer heads as long as they are to DIN standards to a ROTBAND-PLUS-hammer Method Hammer the handle into the hammer head until it reaches the casing. Drive the tapered collar into the centre of the handle. Fasten the safety plate with a wood screw SPARE TAPERED COLLAR F or safe fastening of the wooden handles IlftM 0 m mm ml 0 Code No. 7 12.0 0.001 8593970 E5-100 8 15.0 0.003 8594000 E 5-200 10 17.0 0.004 8594190 E 5-300 11 18.0 0.005 8594270 E 5-400 12 20.0 0.007 8594350 E 5-500 13 20.0 0.008 8594860 E 5-600 14 21.0 0.009 8594430 E 5-800 14 21.0 0.010 8594940 E5-1000 15 23.5 0.013 8594510 E5-1500 16 23.0 0.014 8594780 E 5-2000 for g m mm ml -i0 Code No. 100 260 0.076 8589000 E 600 E-100 200 280 0.099 8589190 E 600 E-200 300 300 0.150 8589270 E 600 E-300 400 310 0.179 8589350 E 600 E-400 500 320 0.185 8589430 E 600 E-500 600 330 0.214 8589510 E 600 E-600 800 350 0.210 8589780 E 600 E-800 1000 360 0.288 8589860 E600E-1000 1500 380 0.350 8589940 E600 E-1500 2000 400 0.377 8593700 E 600 E-2000 for g m -i0 Code No. 100 260 0.081 8593890 E600 H-100 200 280 0.120 8595080 E 600 H-200 300 300 0.134 8595160 E 600 H-300 400 310 0.180 8595240 E 600 H-400 500 320 0.198 8596480 E 600 H-500 600 330 0.234 8596560 E 600 H-600 800 350 0.296 8596640 E 600 H-800 1000 360 0.315 8597880 E 600 H-1000 1500 380 0.373 8597960 E 600 H-1500 2000 400 0.442 8599070 E 600 H-2000 rmmmm I NDIVIDUAL CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us m V m COAT FORGE 481
